Disassembly and Reassembly

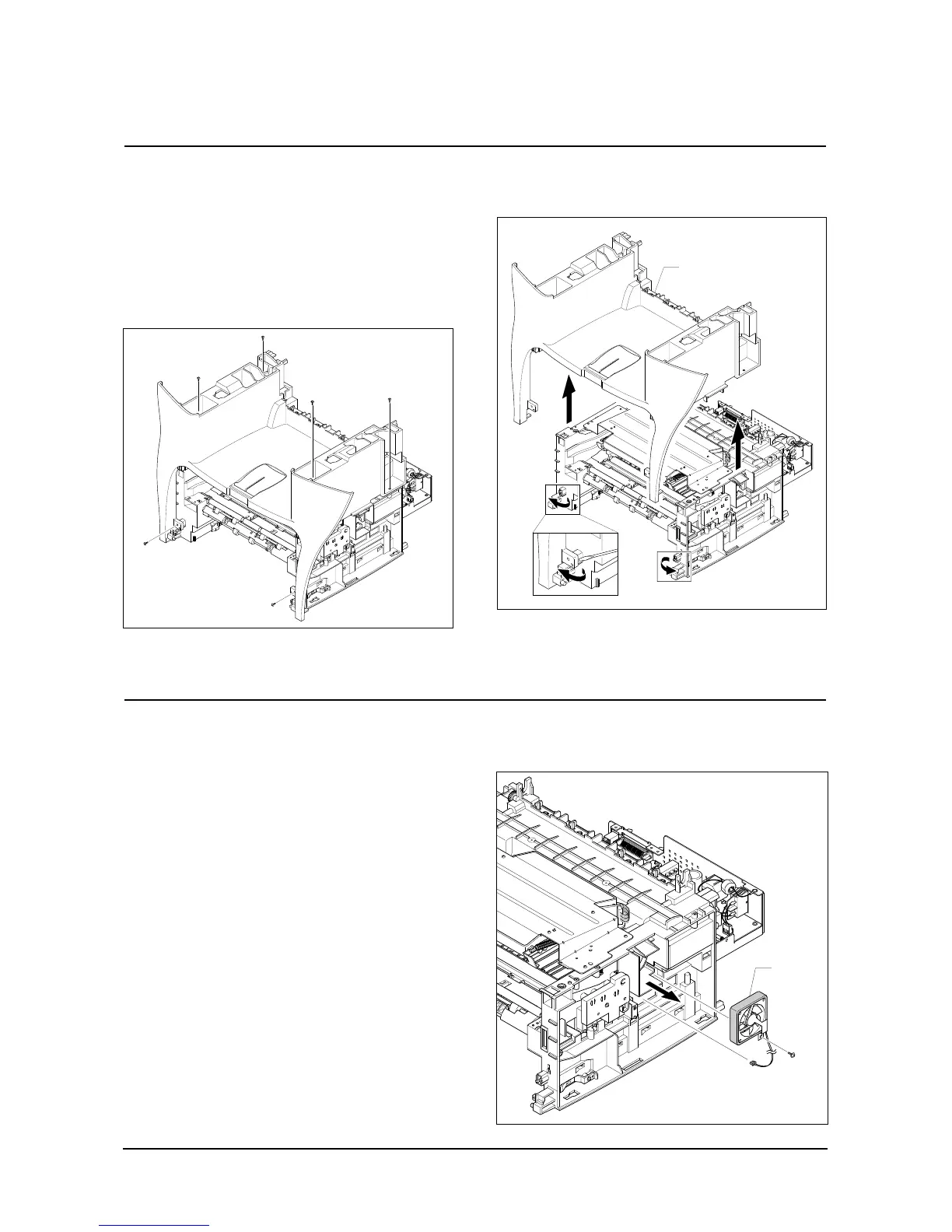

3-13 Middle Cover
1. Before you remove the Middle Cover, you should
remove:
- Rear Cover (see page 3-2)
- Side Cover (LH, RH) (see page 3-6)
- Scanner Ass’y (see page 3-7)
- Front Cover (see page 3-14)
2. Remove the six screws securing the Top Cover and
remove it.
3. Unlatch the Top Cover Securing the Frame Ass'y,
using a proper tool as shown below. Then lift the Top
Cover out.
Top Cover
3-14 Fan
1. Before you remove the Fan, you should remove:
- Rear Cover (see page 3-2)
- Side Cover (RH) (see page 3-6)
2. Unplug the connector from the SMPS and remove the
one screw. Then take out the Fan.
DC Fan

Samsung SCX-4216F Series Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Paper Input Capacity	250 sheets
Memory	8 MB
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	4800 x 4800 dpi (enhanced)
Connectivity	USB
