9. SWING : BLADE-H is rotated vertically by the stepping
motor.
•
S✳07APG/S✳09APG/S✳12APG
•
*Swing Set : Press the button under the remote
control is displayed on LCD the and the blades move
up and down. If the one more time press the
button, blades location is stop.
•
S✳07AS2/S✳09AS2/S✳12AS4
•
*Swing Set : Press the button under the remote con-
trol is displayed on LCD the and the blades move up
and down. If the one more time press the button,
blades location is stop.
10. SETTING THE ON/OFF TIMER. :
*ON TIMER : The On Timer enables you to switch on the air
conditioner automatically after a given period of time. You
can set the period of time from 30 minutes to 24 hours.
*OFF TIMER : The Off Timer enables you to switch off the air
conditioner automatically after a given period of time. You
can set the period of time from 30 minutes to 24 hours.
11. GENERATING ANION :
The air conditioner can generate anion with an ionizer in the
indoor unit.

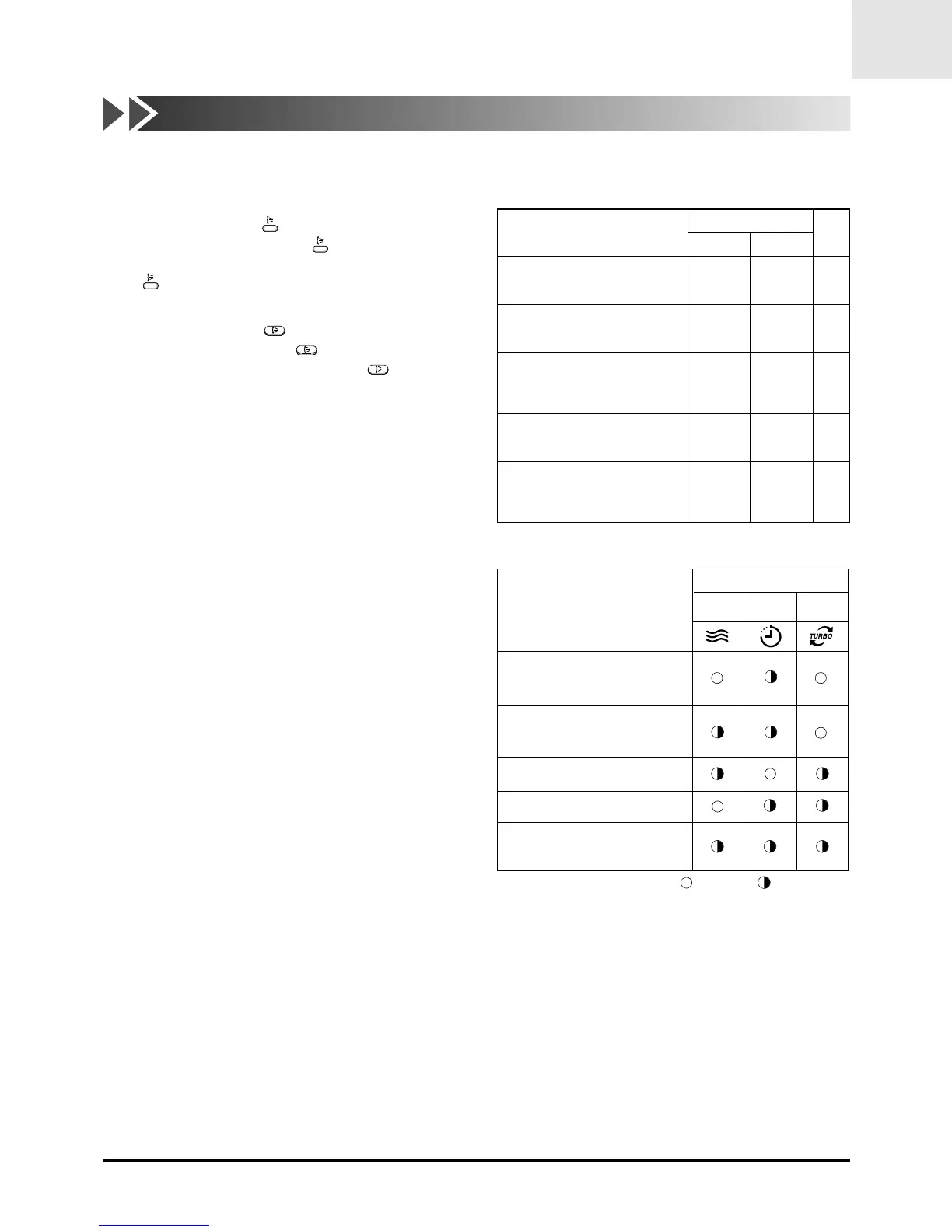

12. SELF DIAGNOSIS
•
S✳07APG/S✳09APG/S✳12APG
•
S✳07AS2/S✳09AS2/S✳12AS4
13. BUZZER SOUND : Whenever the On/Off button is pressed
or whenever change occurs to the condition which is set up
or select, the compulsory operation mode, buzzer is sounded
"beep".
Indoor unit room temperature sensor
error (open or short)
OFF E1
OFF E2
OFF E3
OFF E6
All lamp
blinking
All lamp
blinking
Indoor unit heat exchanger
temperature sensor error(open or short)
Indoor FAN MOTOR error :
Keep the RPM value 450 below for
15 seconds
Error in option
In case of No option set-up
In case of option data error
EEPROM error
Error Mode
OPERATION OFF OPERATION ON
DISPLAY 7-SEGMENT
Remark
: Lamp flickering
: Lamp off
Indoor unit room temperature sensor
error(open or short)
Description
LAMP or DISPLAY Monitor
TIMER TURBO
OPERATION
Indoor unit heat exchanger
temperature sensor error(open or short)
Indoor fan motor malfunction
EEPROM error
Option error(option wasn’t set up or
option data error)
