32 | SAMSUNG
INSTALLATION
5

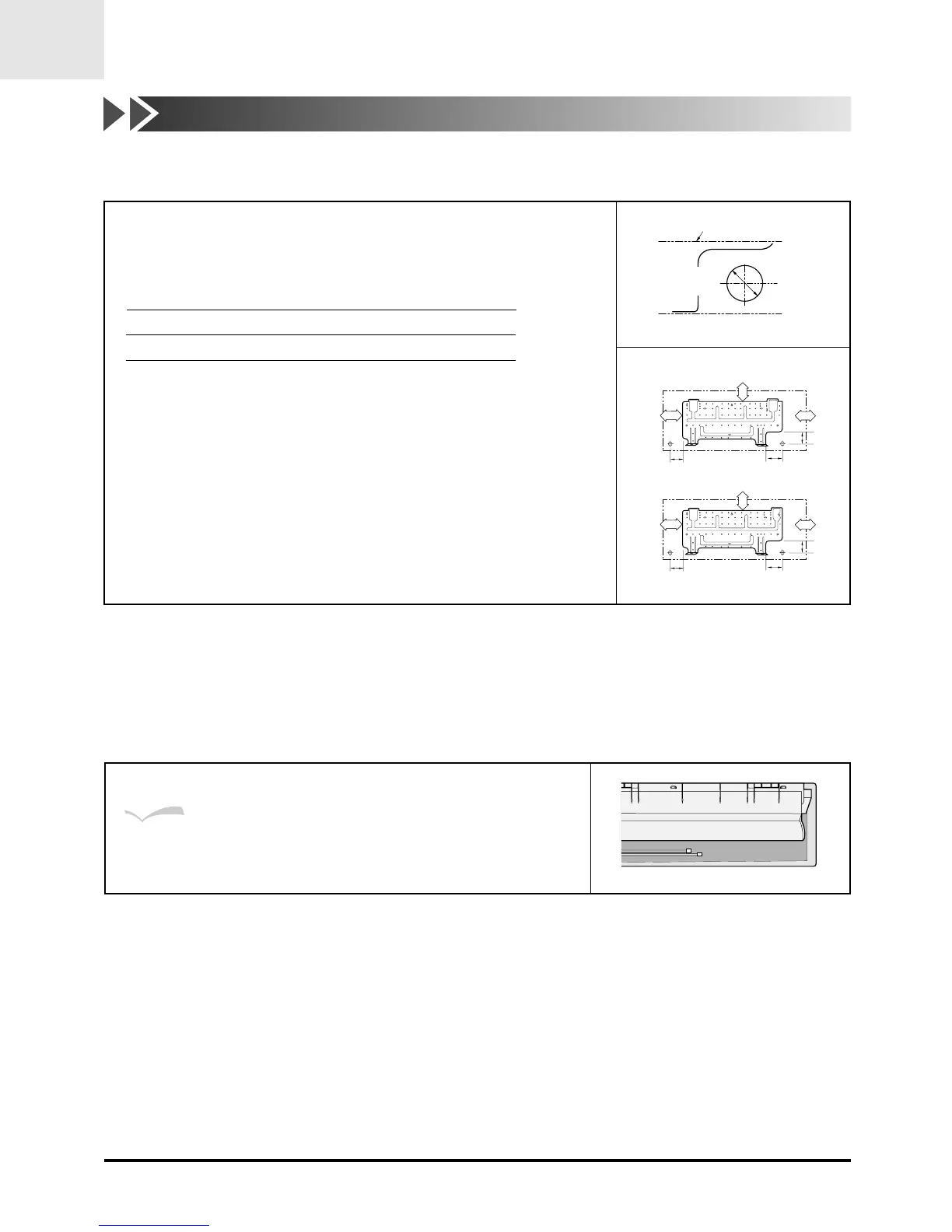

Installation Diagram of Indoor Unit and Outdoor Unit (cont.)
5-2-1. Fixing the Installation Plate
1. Determine the position of the pipe and drain hose hole
referring to the right figure and drill the hole with an inner diameter of 65mm so
that it slants slightly downwards.
2. If you are fixing the indoor unit to a… Then follow Steps…
Wall 3.
Window frame 4 to 6.
3. Fix the installation plate to the wall in a manner
appropriate to the weight of the indoor unit.
If you are mounting the plate on a concrete wall with anchor bolts,
anchor bolts must not be projected by more than 20mm.
4. Determine the position of the wooden uprights to be attached to the window
frame.
5. Attach the wooden upright to the window frame in a manner appropriate to the
weight of the indoor unit.
6. Using tapped screws, attach the installation plate to the wooden upright,
as illustrated in the last figure opposite.
5-2-2. Purging the Unit
On delivery, the indoor unit is loaded with an inert gas. All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the cap at the end of each pipe.
◆
To prevent dirt or foreign objects from getting into the pipes during installation,
do NOT remove caps completely until you are ready to connect the piping.
Result
All inert gas escapes from the indoor unit.
30mm
Installation plate
Pipe hole
(
Ø
65mm)
(Unit : mm)
7K/9K
12K
