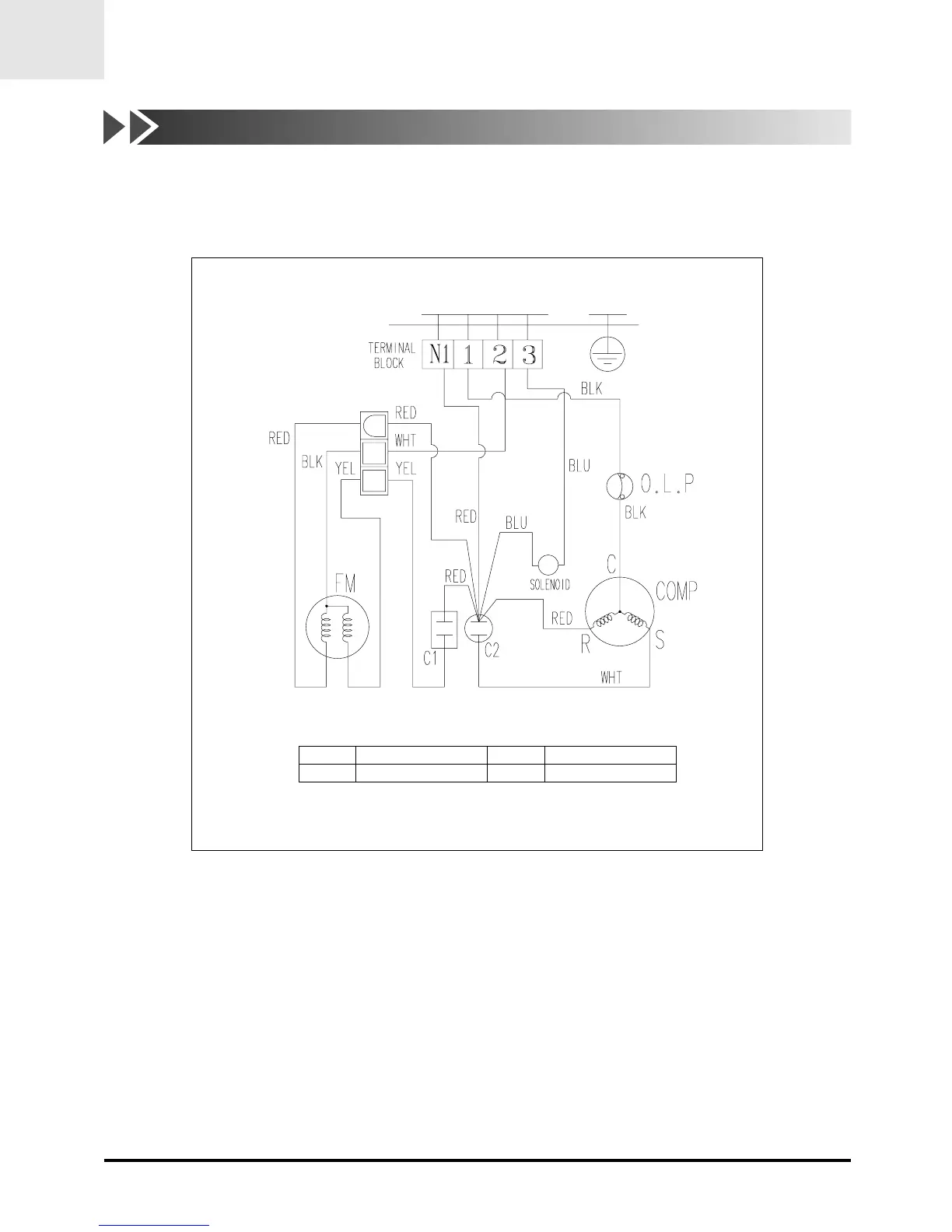

Circuit Diagram (cont.)
● Outdoor Unit
■ 7K /9K / 12K
This Document can not be used without Samsung's authorization.
Code No : DB98-15123A
C1 MOTOR CAPACITOR FM FAN MOTOR
C2 COMP CAPACITOR O.L.P OVER LOAD PROTECTOR
