6 Troubleshooting
SyncMaster 320TFT/520TFT 6-3

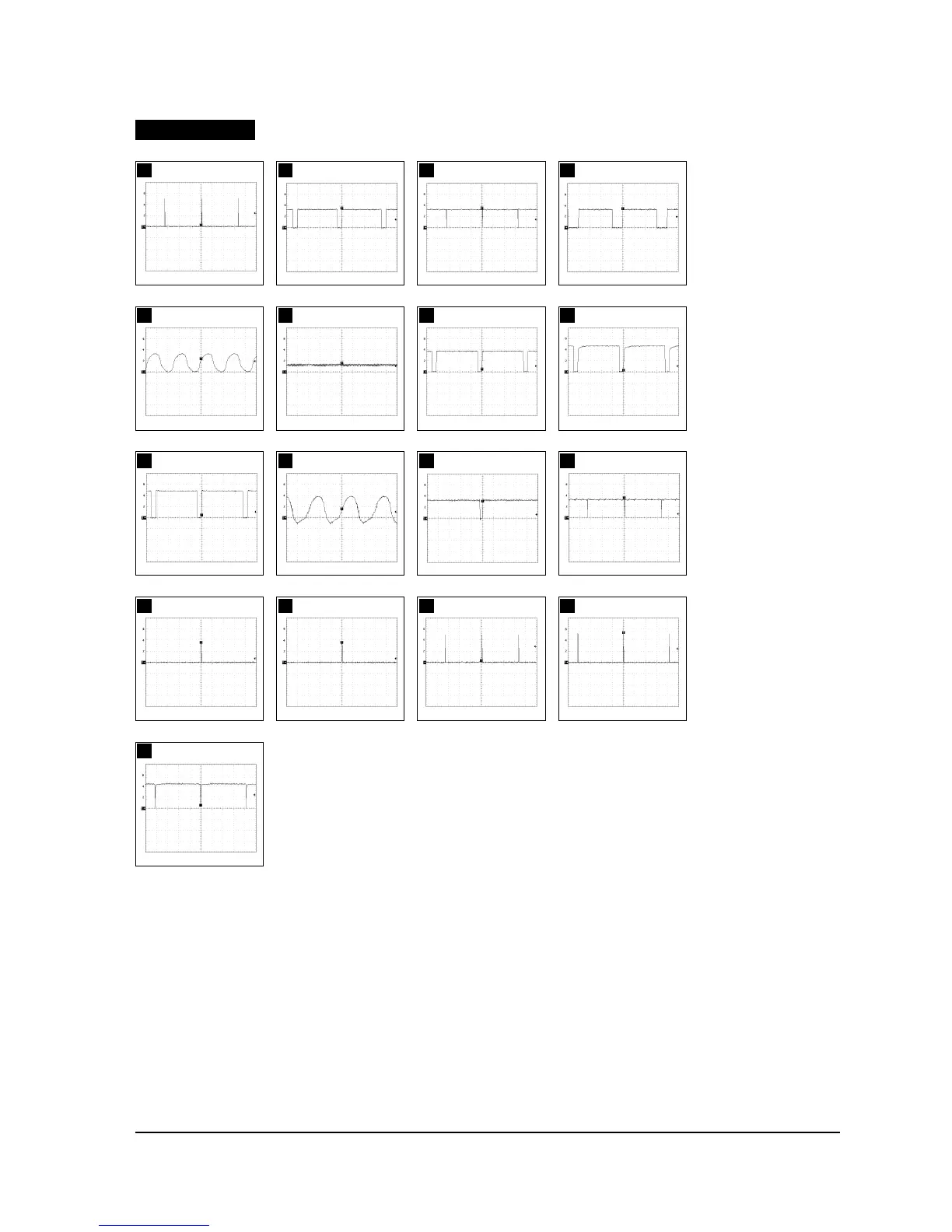

WAVEFORMS
2
IC310 #22
CH1 RMS = 3.1 V
3
IC310 #23
CH1 RMS = 2.3 V
4
IC310 #25
CH1 RMS = 2.8 V
5
IC310 #26
CH1 RMS = 2.12 V
6
CN301 #5~20
CH1 RMS = 1.18 V
7
IC101 #94
CH1 RMS = 3.5 V
8
IC105 #10
CH1 RMS = 3.1 V
9
IC104, #1
CH1 RMS = 4.56 V
10
IC301 #2
CH1 RMS = 2.3 V
11
IC301 #3
CH1 RMS = 3.25 V
12
IC301 #54
CH1 RMS = 2.35 V
13
IC301, #55
CH1 RMS = 200 mV
14
IC301 #56
CH1 RMS = 50 mV
18
IC110 #13
CH1 RMS = 1.24 V
19
IC110 #14
CH1 RMS = 400 mV
20
IC110 #2
CH1 RMS = 4.4 V
1
IC110 #3
CH1 RMS = 3.6 V
