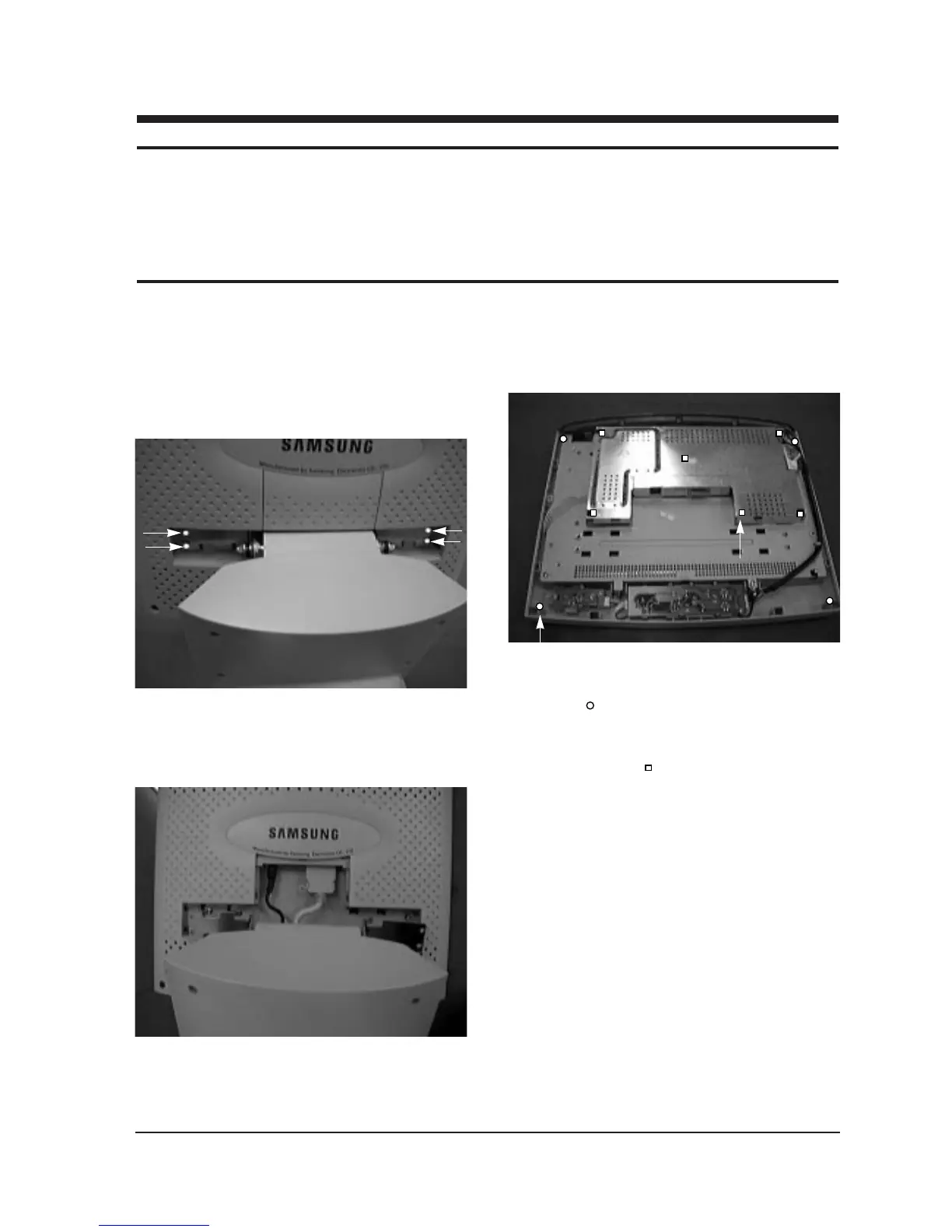

5-1-1 Removing the Stand
1. Remove 2 hinge caps on the Rear Cover.
2. Remove 4 screws in the hinge area.
3. Push the Stand to the left and remove the
Stand from Body (Front).
4. Remove the Cover Signal.
5. Disconnect Power Cord and Signal Cable.
5-1-2 Front Cover Disassembly
1. Remove the 4 screws on Rear Cover.
(Point ; )
2. Remove Rear Cover from Front Cover.
3. Remove 6 Main PCB screws on Rear Panel
Bracket. (Point ; )
4. Disconnect Main PCB, Inverter wire, Function
wire and Interface wire.
5. Remove Main PCB Assembly.
SyncMaster 320TFT/520TFT 5-1
5 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
SyncMaster 320TFT/520TFT monitors.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
5-1 Disassembly
Cautions:1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Figure 5-1
Figure 5-3
Figure 5-2
