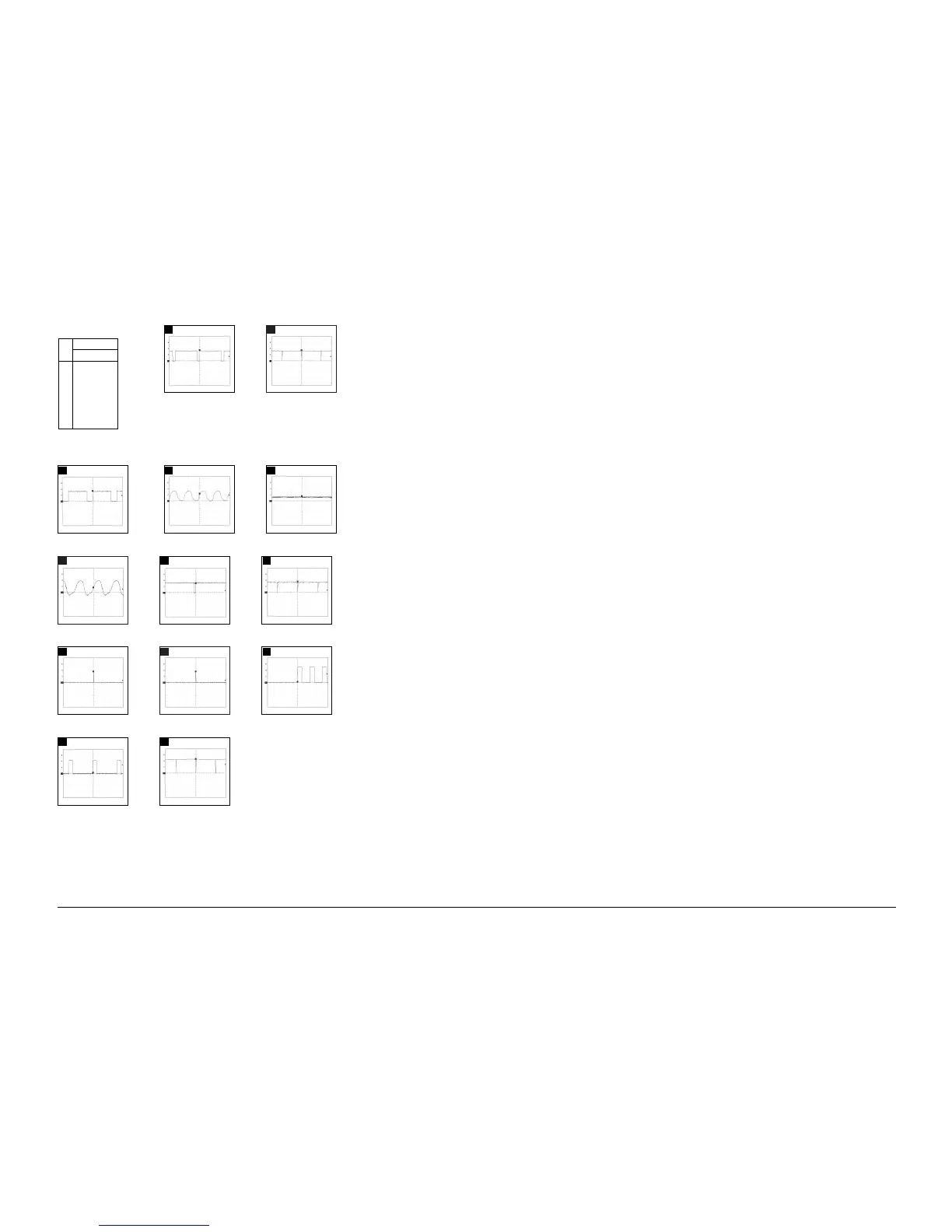

12 Schematic Diagrams
SyncMaster 320TFT/520TFT 12-4
1
2
3
4
5
6
7
8
11.96
5.90
4.99
5.8 mV
4.99
4.99
11.95
11.95
pin #
MODES
1024 x 768 / 85 Hz
Table 12-6. IC309
Unit: Vrms
2
IC310 #22
CH1 RMS = 3.1 V
3
IC310 #23
CH1 RMS = 2.3 V
4
IC310 #25
CH1 RMS = 2.8 V
5
IC310 #26
CH1 RMS = 2.12 V
6
CN301 #5~20
CH1 RMS = 1.18 V
10
IC301 #2
CH1 RMS = 2.3 V
11
IC301 #3
CH1 RMS = 3.25 V
12
IC301 #54
CH1 RMS = 2.35 V
13
IC301, #55
CH1 RMS = 200 mV
14
IC301 #56
CH1 RMS = 50 mV
15
IC307 #12
CH1 RMS = 2.2 V
16
IC307 #5
CH1 RMS = 1.7 V
17
IC307 #10
CH1 RMS = 4.3 V
