Samsung SyncMaster 700IFT - Pinbalance Adjustment; Linearity Correction

14
Adjusting Your Monitor

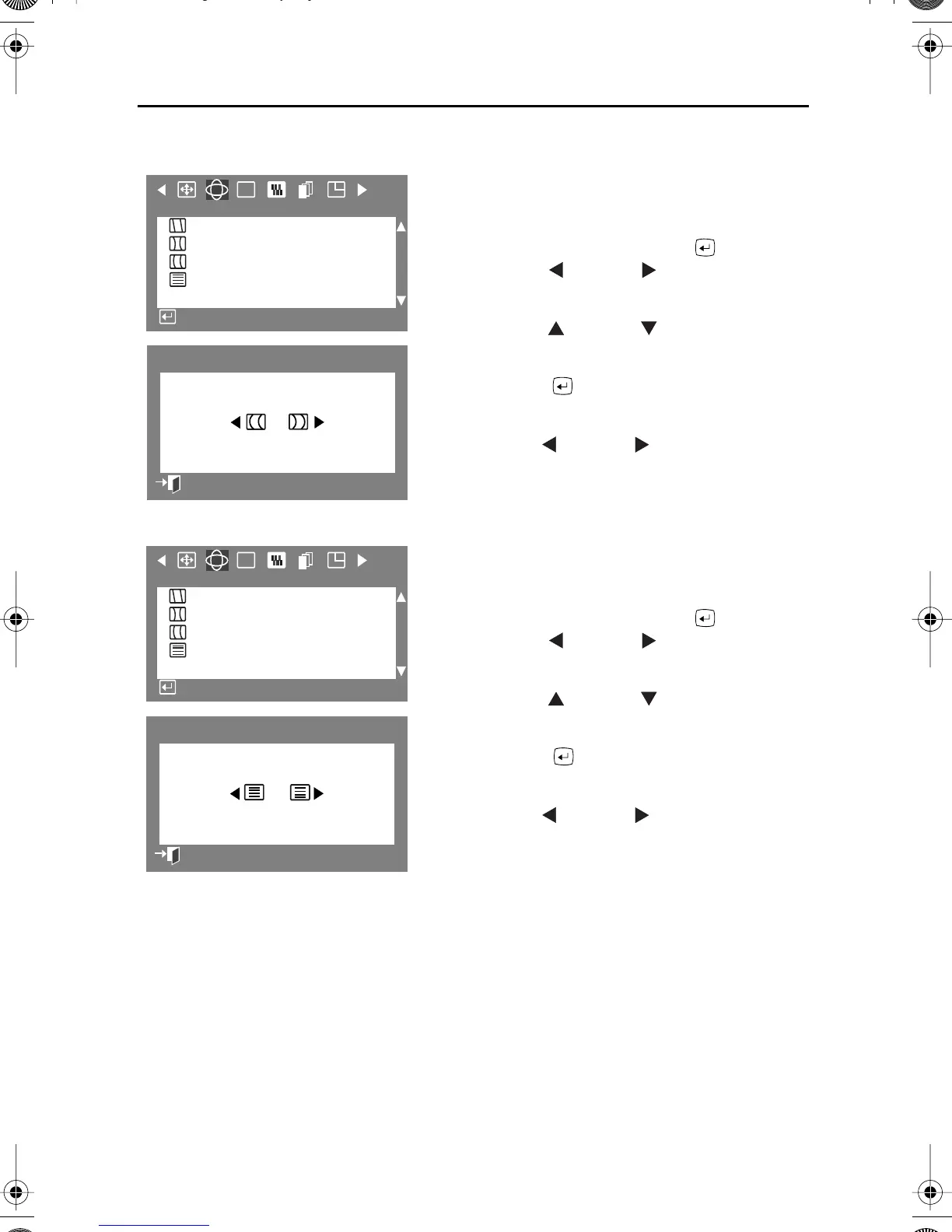

Pinbalance
Adjust the pinbalance setting when the sides of the
display are bowed towards the left or right.
1
With the menu off, push the button.
Push the button or button until the
“Geometry” screen is displayed.
2
Push the button or button to select
Pinbalance.
3
Push the button to open the Pinbalance
adjustment screen.
4
Use the button or button to adjust the
pinbalance setting.
Linearity
Adjust the linearity setting when the display image
is compressed at the left, right or top, bottom.
1
With the menu off, push the button.
Push the button or button until the
“Geometry” screen is displayed.
2
Push the button or button to select
Linearity.
3
Push the button to open the Linearity
adjustment screen.
4
Use the button or button to adjust the
vertical Linearity.
RGB
:
Geometry
Parallel/Rotation
Pincushion/Trapezoid
Pinbalance
Linearity
Access Function
:
53
Pinbalance
Previous Menu
RGB
:
Geometry
Parallel/Rotation
Pincushion/Trapezoid
Pinbalance
Linearity
Access Function
:
44
Linearity
Previous Menu
