Samsung UE40C5100QW User Manual

7
01 Getting Started
English

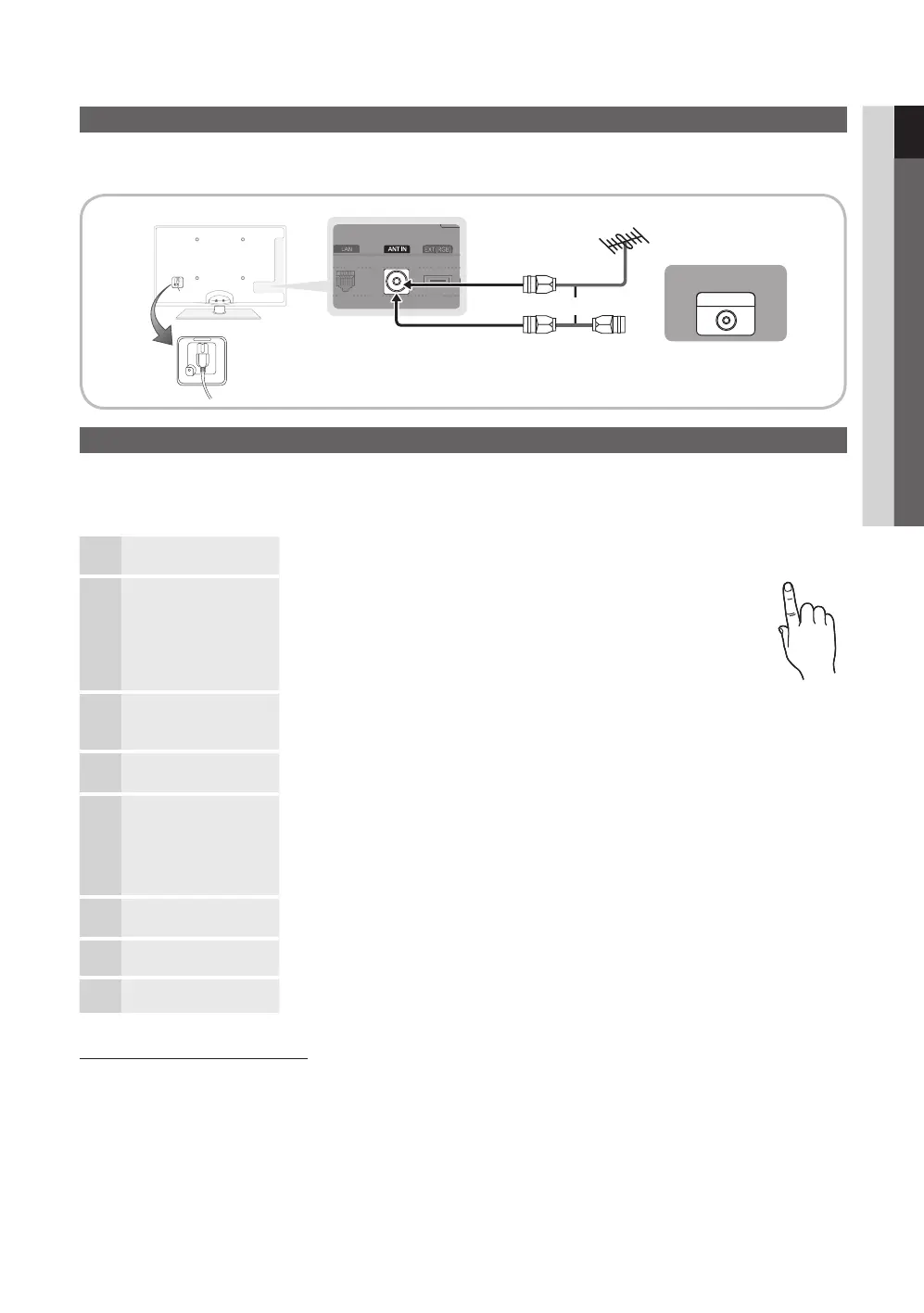

Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
✎ Preset: Connecting the mains and antenna.
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER P button. Plug & Play is available only when the Input source is set to TV.
✎ To return to the previous step, press the Red button.
1
Selecting a language
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the desired OSD (On Screen Display) language.
P
POWER
2
Selecting Store Demo
or Home Use
Press the ◄ or ► button, then press the ENTER
E button.
y Select the Home Use mode. Store Demo Mode is for retail
environments.
y To return the unit's settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume OSD, press and hold MENU for 5 sec.
3
Selecting a country
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the appropriate country. If the desired country does not exist on the menu, select
Others.
4
Selecting an antenna
Press the ▲ or ▼ button, then press the ENTER
E button.
Select Air or Cable.
5
Selecting a channel
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the channel source to memorise. When setting the antenna source to Cable, a step
appears allowing you to assign numerical values (channel frequencies) to the channels. For
more information, refer to Channel → Auto Store (p. 13).
✎ Press the ENTER E button at any time to interrupt the memorisation process.
6
Setting the
Clock Mode
Set the Clock Mode automatically or manually.
Press the ▲ or ▼ button to select Auto, then press the ENTER
E button.
7
Viewing the
HD Connection Guide.
The connection method for the best HD screen quality is displayed.
8
Enjoy your TV.
Press the ENTER
E button.
If You Want to Reset This Feature...
Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to
change the PIN number, use the Change PIN function.
ANT OUT
Power Input
VHF/UHF Antenna
or
Cable
[UC5100_UK]BN68-02656E-00Eng.indb 7 2010-03-02 오후 1:58:49

Samsung UE40C5100QW Specifications

General

Display diagonal	40 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	CMR (Clear Motion Rate) 100
3D	No
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-T
Audio system	Dolby Digital Plus / Dolby Pulse
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Number of OSD languages	25
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	75 W
Package depth	120 mm
Package width	1200 mm
Package height	743 mm
Package weight	19300 g
Cables included	AC, Component, Composite, SCART

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	656 mm
Weight (with stand)	15700 g
Depth (without stand)	29.9 mm
Width (without stand)	972 mm
Height (without stand)	596 mm
Weight (without stand)	12100 g
