Connections

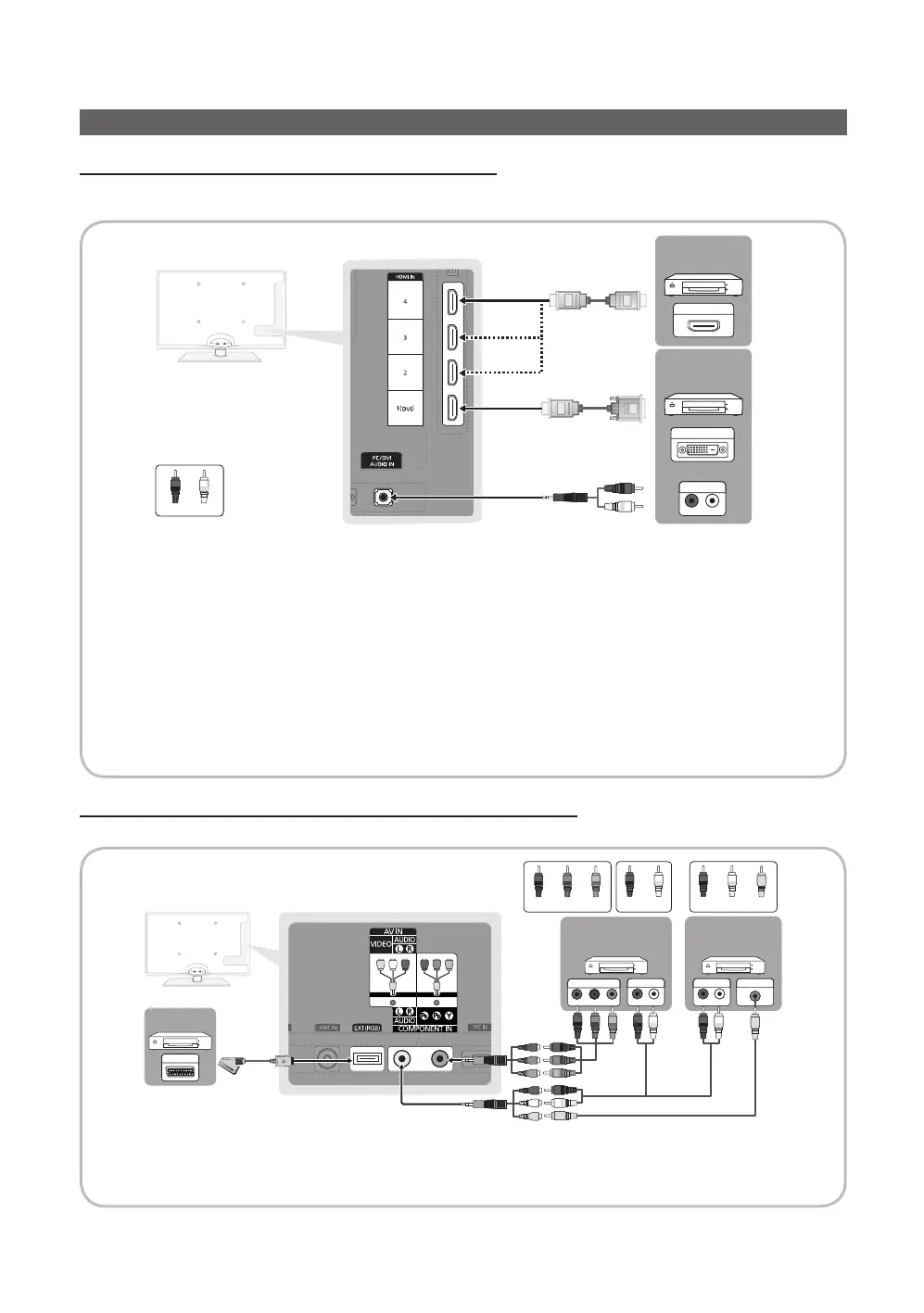

Connecting to an AV Device
Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver
(STB)
✎ HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN
x
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI
(DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
x
If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI
versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal colour).
x
If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and
request an upgrade.
x
It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur.
Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎ In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection.
VIDEO OUTAUDIO OUT
R-AUDIO-L
PR PB Y
COMPONENT OUT
AUDIO OUT
R-AUDIO-L
R
G
B
R
B
G
Y
Y
W R
WRWR
Y
W R W R
R
G
B
EXT
VCR / DVD
VCR
DVD /
Blu-Ray player
RedRed WhiteWhite YellowRed Blue Green
HDMI OUT
DVI OUT
AUDIO OUT
R-AUDIO-L
WR
WR
DVD /
Blu-ray player
DVD /
Blu-ray player
WhiteRed
[UC5100_UK]BN68-02656E-00Eng.indb 8 2010-03-02 오후 1:58:50

Samsung UE40C5100QW Specifications

General

Display diagonal	40 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	CMR (Clear Motion Rate) 100
3D	No
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-T
Audio system	Dolby Digital Plus / Dolby Pulse
RMS rated power	20 W
Number of speakers	2
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Number of OSD languages	25
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	75 W
Package depth	120 mm
Package width	1200 mm
Package height	743 mm
Package weight	19300 g
Cables included	AC, Component, Composite, SCART

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	656 mm
Weight (with stand)	15700 g
Depth (without stand)	29.9 mm
Width (without stand)	972 mm
Height (without stand)	596 mm
Weight (without stand)	12100 g
