✤ Player
✤
✤ PAL 112
✤
1. AV
■
Video
■
Audio L [ ]-
■
Audio R [ ]
Video
Audio L
■
SCART
2. PLAY
3. TAPE
( VP-D653(i)/D655(i))
4.
TV/VIDEO / Video
■
5.
■
S-Video S-Video
■
S-Video
■
AV/S
■
Audio L
A/V
6969
ENGLISH
Playback
✤ The Playback function works only in Player mode.
✤ It is easier to view a tape using the LCD screen as opposed to the
viewfinder in a moving automobile or outdoors.
✤ To play back a tape, the television must be PAL compatible. (see page 112)
✤ We recommend that you use the AC Power adapter as the power source for
the Camcorder.
1. Connect the Camcorder to your TV with the Multi-
AV cable.
■
The yellow jack: Video
■
The white jack: Audio(L)-mono
■
The red jack: Audio(R)
If you connect to a monaural TV, connect the
yellow jack (Video) to the video input of the TV
and the white jack (Audio L) to the audio input
of the TV.
■
You may use the SCART adapter. (optional)
2. Set the Power switch to PLAY.
3. Set the Mode switch to TAPE.
(VP-D653(i)/D655(i) only)
4. Turn on the TV and set the TV/VIDEO selector on the TV to Video.
■
Refer to the TV user’s manual.
5. Play back the tape.
[ Notes ]
■
You may use the S-Video connector on the cable to obtain better quality
pictures if you have an S-Video jack on your TV.
■
Even if you use the S-Video connector, you still need to make audio
connections on your TV.
■
If you connect the cable to the AV/S jack, you will not hear sound from the
Camcorder's speaker.
■
If only a mono audio input is available on the TV set, use the Audio cable
with the white jack (Audio L).
Playback on the LCD Screen
Playback on a TV Monitor

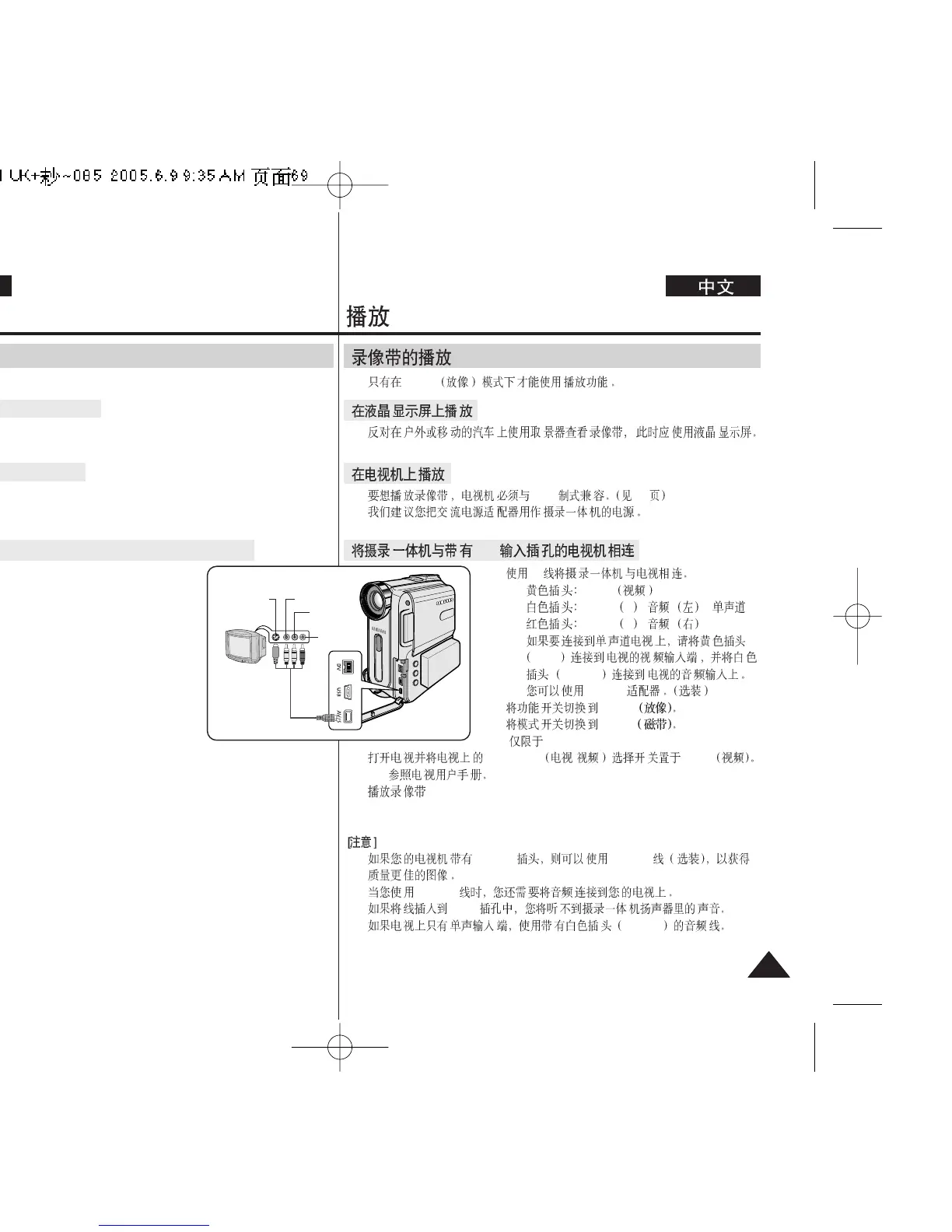

Connecting to a TV which has Audio/Video Input Jacks
Tape Playback
Camcorder
Audio/Video/
S-Video
Video input-Yellow
Audio input
(left)-White
S-Video input
Audio input
(right)-Red
TV
