Disassembly and Reassembly
3-1-7 Ass’y EVF Removal
4
REMOVE THE EVF ASS’Y
IN THE DIRECTION OF ARROW.
1
REMOVE 3 SCREW.
2
REMOVE THE COVER LEFT TOP ASS’Y
IN THE DIRECTION OF ARROW.
3
REMOVE 6 SCREWS.

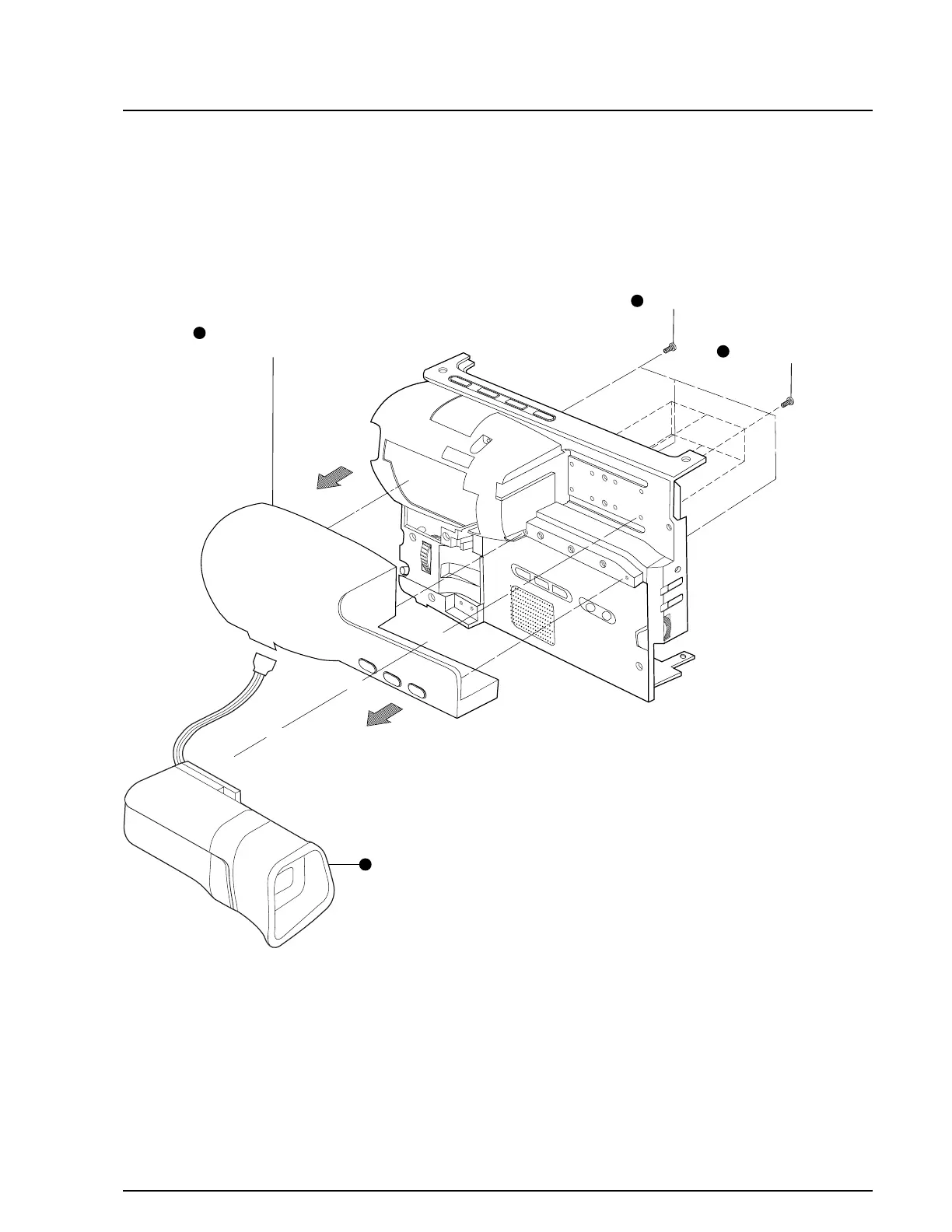

Fig. 3-7 Ass’y EVF Removal
