Samsung VP-L520 - 4. Alignment and Adjustment; Mechanism Alignment Procedures

• Refer to mechanical manual “DE-6 (AD68-30200A)”for the adjustment and checks of mechanism section.

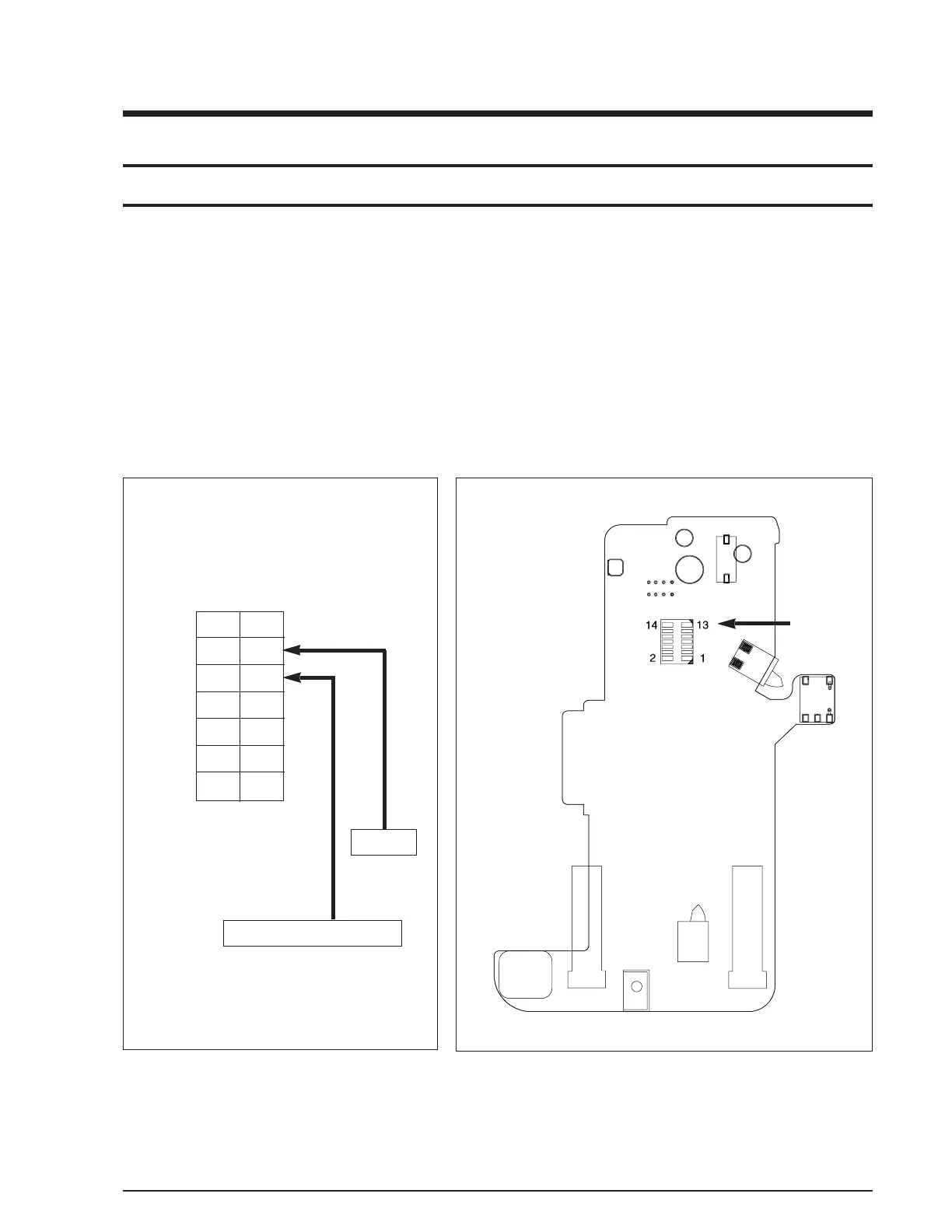

• The location of test point (See Fig.1)
Samsung Electronics 4-1
Alignment and Adjustment
4. Alignment and Adjustment
4-1. Mechanism Alignment
Test Point:
PB RF - Pin 11 of CN452
Head Switching Trigger - Pin 9 of CN452
Fig. 2 Test location of test point (Rear Board)
CN452
PB RF
Head Switching - Trigger
CN452
Fig. 1 Test point
SW471
J451
DC-JACK
BAT-TERMINAL
(+)
BAT-TERMINAL
(-)
14 13
12 11
10 9
87
65
43
21
