SELECTING THE DIE SET, P20 MODEL
Use only original SAMWAY die sets in SAMWAY crimping machines.
Refer to the fitting manufacturer's specifications for proper crimping diameter for the fitting.
Each die set has its own crimping range. Follow it to assure the roundest possible crimping result.

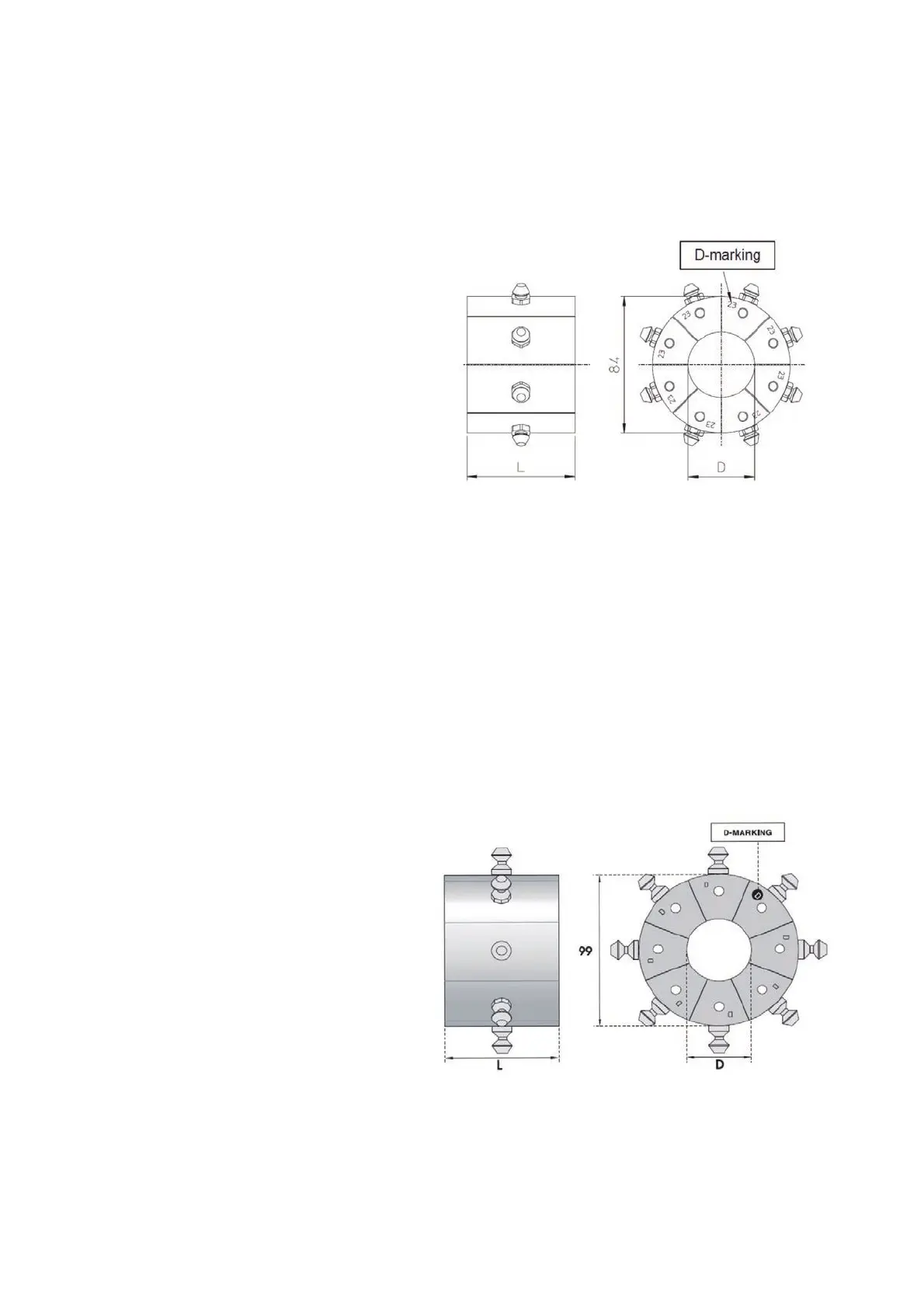

he minimum crimping diameter D is marked on each die set. T
Example: with die set No 18013/10 the minimum crimping diameter is 10 mm.
D L Die set No Crimping range
D L Die set No Crimping range
10 55 18013/10 10...12 mm
12 55 18013/12 12...14 mm
14 55 18013/14 14...16 mm
16 55 18013/16 16...19 mm
19 55 18013/19 19...23 mm
23 55 18013/23 23...27 mm
27 70 18013/27 27...31 mm
31 70 18013/31 31...36 mm
36 75 18013/36 36...41 mm
41 75 18013/41 41...47 mm
47 85 18013/47 47...54 mm
54 85 18013/54 54…61 mm
In addition to the standard die sets, a wide range of special die sets is available on request.
SELECTING THE DIE SET, P32 MODEL
Use only original SAMWAY die sets in SAMWAY crimping machines
Refer to the fitting manufacturer's specifications for proper crimping diameter for the fitting.
Each die set has its own crimping range. Follow it to assure the roundest possible crimping result.
The minimum crimping diameter D is marked on each die set.
Example: with die set No 18506/10 the minimum crimping diameter is 10 mm.
10 55 18506/10 10 ... 12 mm
12 55 18506/12 12 ... 14 mm
14 55 18506/14 14 ... 16 mm
16 55 18506/16 16 ... 19 mm
19 55 18506/19 19 ... 22 mm
22 70 18506/22 22 ... 26 mm
26 70 18506/26 26 ... 30 mm
30 70 18506/30 30 ... 34 mm
34 75 18506/34 34 ... 39 mm
39 75 18506/39 39 ... 45 mm
45 90 18506/45 45 ... 51 mm
51 90
18506/51
51 ... 57 mm
57 100 18506/57 57 ... 63 mm
63 110 18506/63 63 ... 69 mm
69 110 18506/69 69 ... 75 mm
74 110 18506/74 74 ... 80 mm
78 110 18506/78 78 ... 87 mm
In addition to the standard dies, a wide range of special dies is available on request.
