6 O -
*Motor
*Displaye
d :OUT-
F(auLt)
97-98(Close,selected "b" on "out"
mode),C1-M,D/C1-SC/F,C1-F→Open
97-98(Open,selected "b" on "out"
mode),C1-M,D,C1-SC/F→Open
※In case selected operation mode is changed by Selector SW, the motor will be
continued to work according to new selected mode afte the motor is stopped
shortly

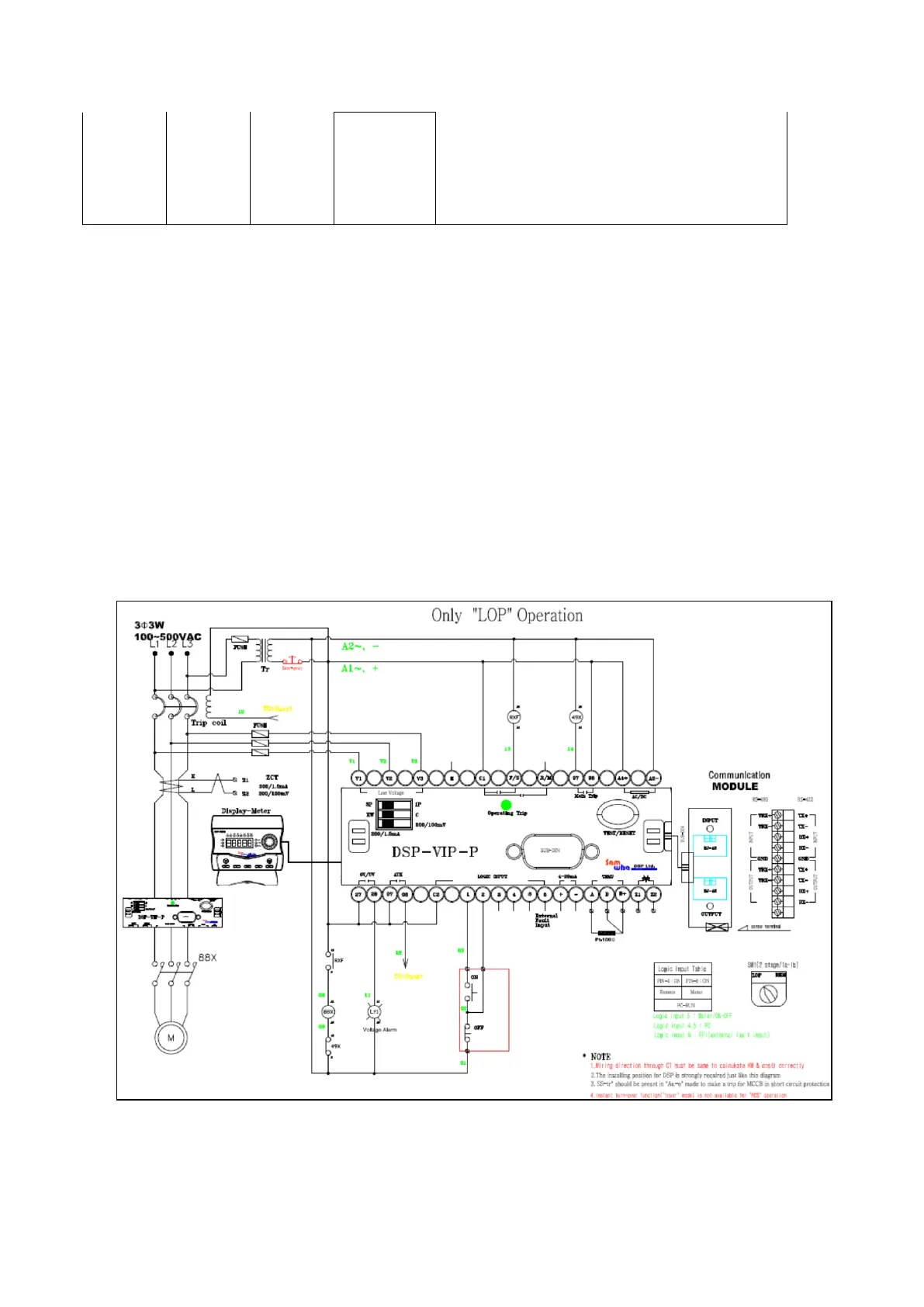

※ It would be easy to understand as referring the application sequence diagram
※ In order to use Logic input #3 for FWD-REV operation, "Frdt" mode in sub menu
group must be preset "OFF"
※ In case motor is stopped by the command of ON-OFF(Rmote sensor or external
fault input ,not by the trip output signal) , LOP,MCC,rcS(remote control sensor)
,out-F(External fault Input) or PC is appeared in the front window to indicate
originated command source
※ It is required that logic input from long distance sensor must be connected
through the output of external aux relay because input line could keep
unwanted voltage by induced current
19-2.Direct On Line Starting
