S&C ELECTRIC COMPANY
716-600
INSTRUCTION SHEET
Page 22 of 24
February 11, 2002
S&C Series 2000 Circuit-Switchers Interrupter Replacement
Outdoor Transmission (69 kV through 230 kV)
Programming the Receiver
After replacing an interrupter and transmitter, the remote
gas-density monitoring system must be reprogrammed.
Programming “teaches” the receiver which transmitter
radio signal corresponds to which interrupter.
A series of prompts on the LCD will guide you through
the programming process.
Step 45
Attach the magnet tool to a hotstick long enough to reach
the transmitter. The magnet tool, furnished with the origi-
nal switch, is located on the inside of the switch operator
door.
Step 46
Press—and hold for 10 seconds—the system set-up
button located on the right side of the receiver. See
Figure 20. The receiver unit will start to count down. See
Figure 21. Release the set-up button when prompted. See
Figure 22. This will put the receiver in setup mode.
NOTICE
All phases must be reprogrammed when an interrupter
is replaced.
NOTICE
Inadvertently releasing the set-up button during
countdown will stop set-up and reset the receiver in
regular monitoring mode.
INTERRUPTERS WITH THE REMOTE GAS-DENSITY MONITOR OPTION — Continued

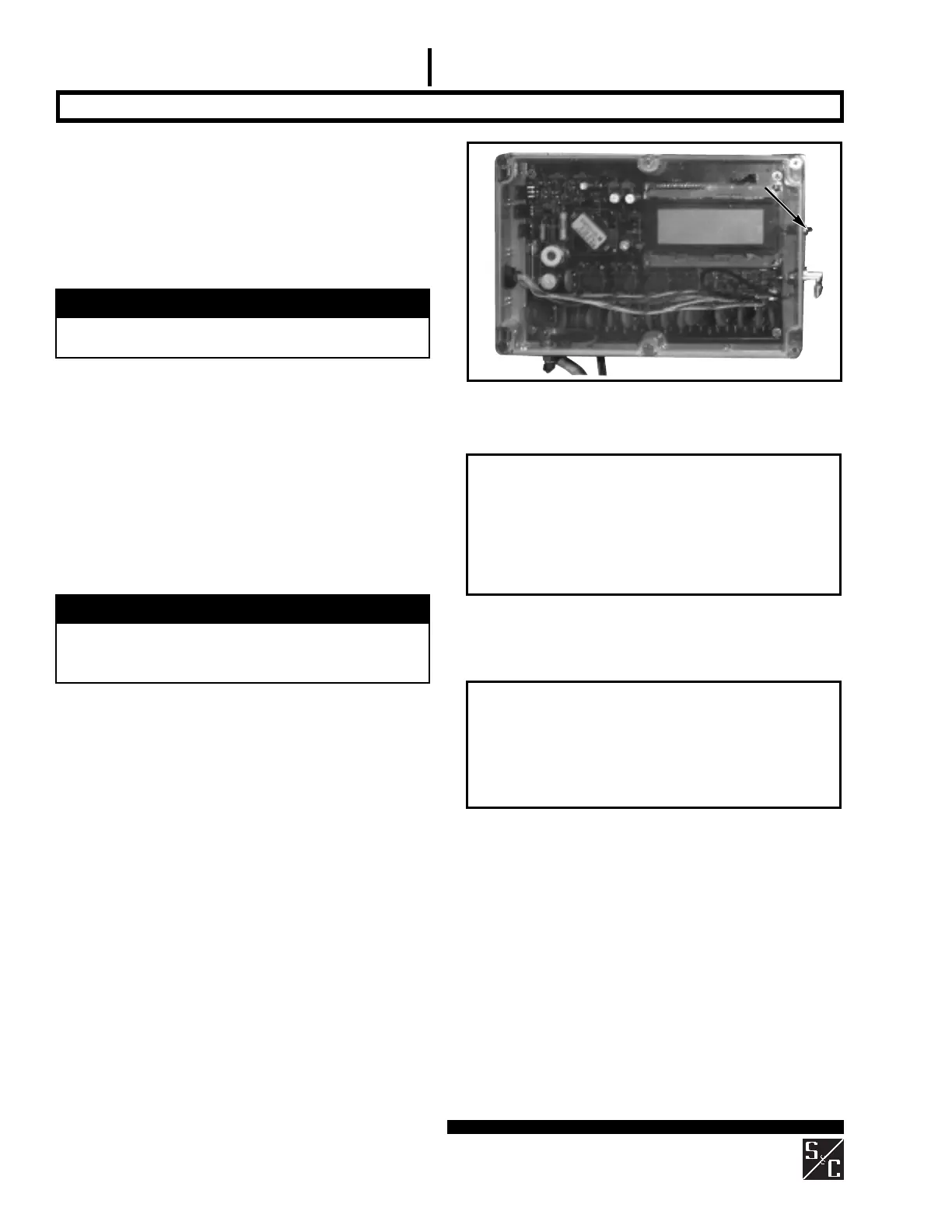

Figure 20. Location of set-up button on receiver.
Figure 21. Receiver LCD while pressing and holding set-up
button.
Figure 22. Receiver LCD during start of set-up mode.
A [DENS] 100%
B [DENS] 100%
C [DENS] 100%
SETUP IN 10 SECONDS
S&C RGDM Setup Mode
Used To Link Remotes
To Phases. To Start
Press Button & Hold
Set-up button
