Switch Control Setup

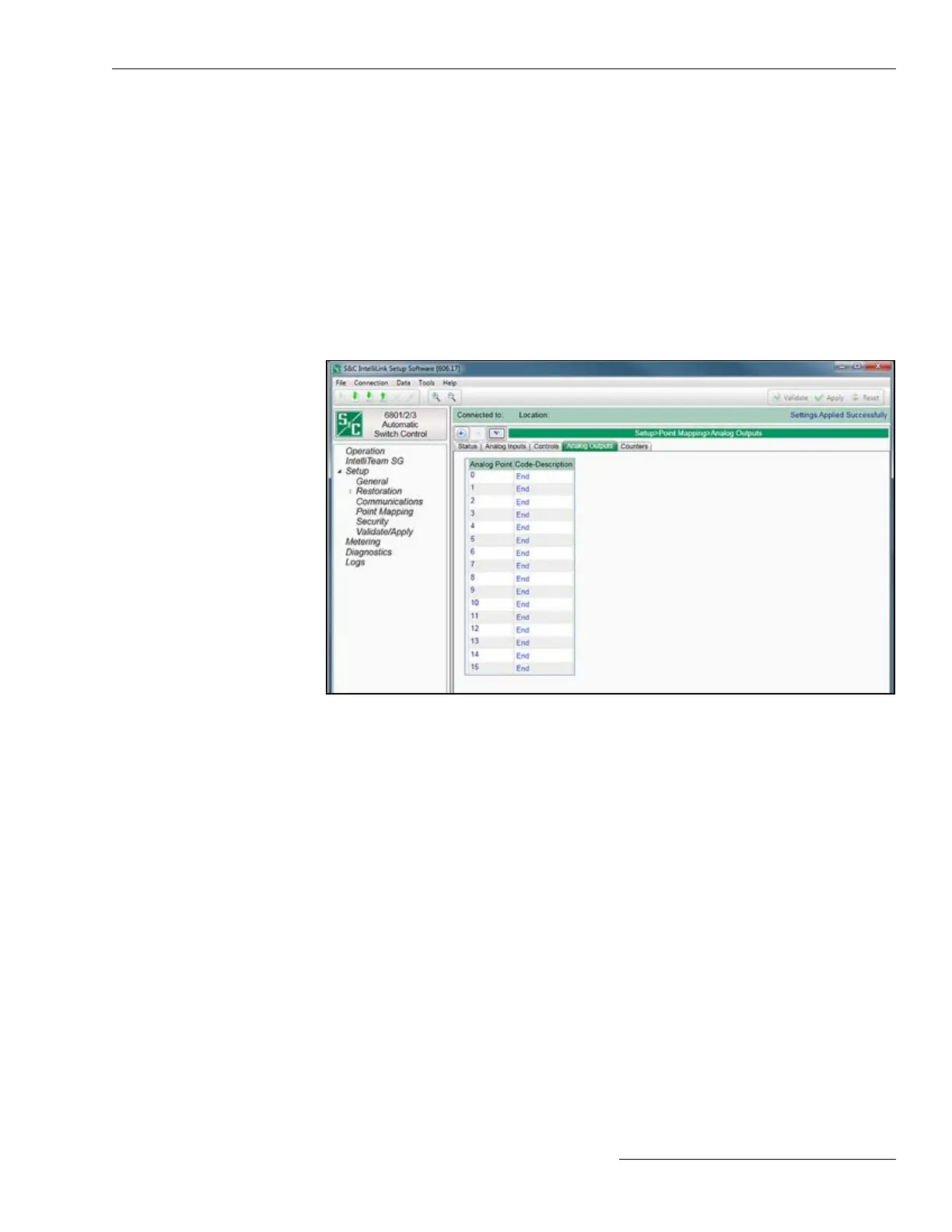

Figure 41. The Setup>Point Mapping>Analog Output Points screen.
DNP Analog Output
Point Mapping
The screen shown in Figure 41 contains conguration parameters for Analog Output
points. Map these points to make them available in the SCADA system.
Analog Point
This is the point number the SCADA system will use when operating analog output.
Code Description
These are the point codes representing specic analog outputs that may be assigned to
individual SCADA point numbers. Setting a Code-Description point code to the “End”
setting denes the end of the congured points list and the maximum number of analog
outputs that can be returned.
not be used. The object type must be valid for the selected object. For more information
see the appropriate Instruction Sheet 1045-560, 1045-560B, 1045-560C, 1045-560D, 1045-
560E or 1045-560F: “S&C 6800 Series Automatic Switch Controls: DNP Points List and
Implementation.” The control operation will be rejected if the object type received is
Pulse and the mapped object type is either Breaker or Latch, or if the mapped object
type is Pulse and the received object type is either Breaker or Latch.
Every control point configured for Breaker accepts Latch operations and every control
point configured for Latch accepts Breaker operations.
Function Codes
Control requests may be issued using Select/Operate sequence or Direct Operate and
Direct Operate No Ack function codes.
S&C Instruction Sheet 1045-530 83
