30 S&C Instruction Sheet 1045M-510
Installing the Reciprocating Switch Operator
N OTICE
For information on other manufacturer’s switches and specific rating, please
contact S&C Electric Company.
Switch
Switch
Operator
Operang
Rod
Operang
Rod Guides
3 feet (914)
maximum
4 feet (1219)
maximum
4 feet (1219)
maximum
3 feet (914)
maximum

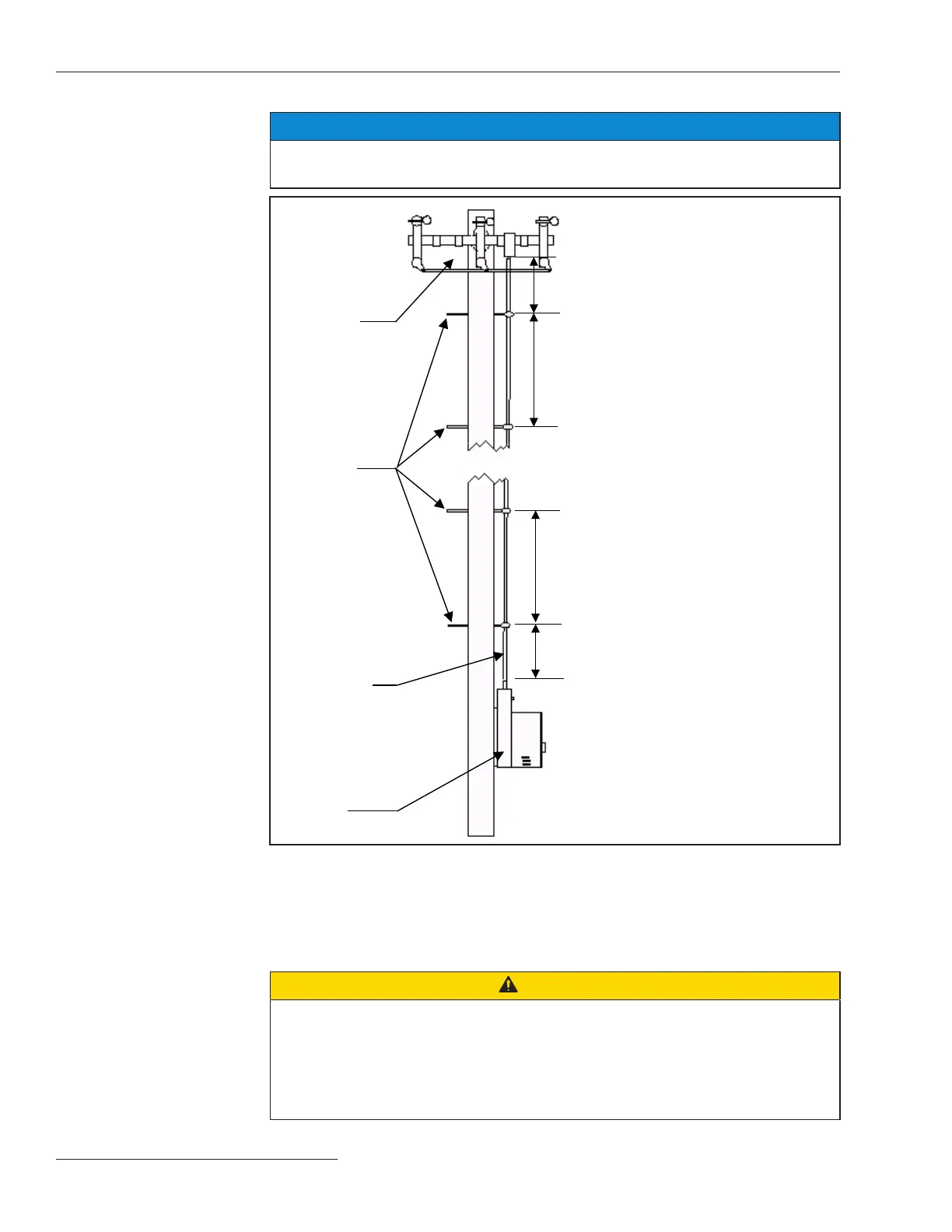

Figure 17. The operating rod guide, maximizing fault close capabilities, dimensions are
inches (mm).
STEP 7. Ground the enclosure. Use the ground lug (see Figure 18 on page 31) located on
the bottom of the switch operator enclosure to ground the enclosure. The
ground lug will accommodate up to #2 copper or aluminum, solid or stranded
wire.
CAUTION
The switch operator must be properly grounded. In addition to the typical rea-
sons for properly grounding electrical equipment, the electrical surge suppression
and power supply systems contain transient filtering circuits that must discharge
to ground to function properly. You must read and understand all applicable
grounding codes and requirements for your service area before installing this
device.
