10 S&C Instruction Sheet 461-503
Connecting to a TripSaver II Recloser
STEP 4. Connect to Device
(a) To connect to a TripSaver II recloser, select Connection> Connect to
Device from the main menu or click on the Connect to Device icon
in
the quick access toolbar. Make sure the USB transceiver is already plugged
into the computer.
(b) Next, a Transceiver ID Request dialog box will open. Enter the transceiver
ID of the TripSaver II recloser being connected to, and click on the OK
button to connect. The rst 16 digits of the ID are pre-typed, so only the last
16 digits must be typed in. See Figure 10.
(c) During the connection process, a status bar will be displayed. See Figure
11. Wait about 10 seconds for the connection process to nish, or click on
the Cancel button to cancel the connection process.
(d) The Status screen will be visible after the TripSaver II recloser is
successf ul ly connected. See F igure 12 . Exist ing sett ing s, statu s in for mation,
and event logs of the TripSaver II recloser can now be viewed, or new
settings to the device can be applied.

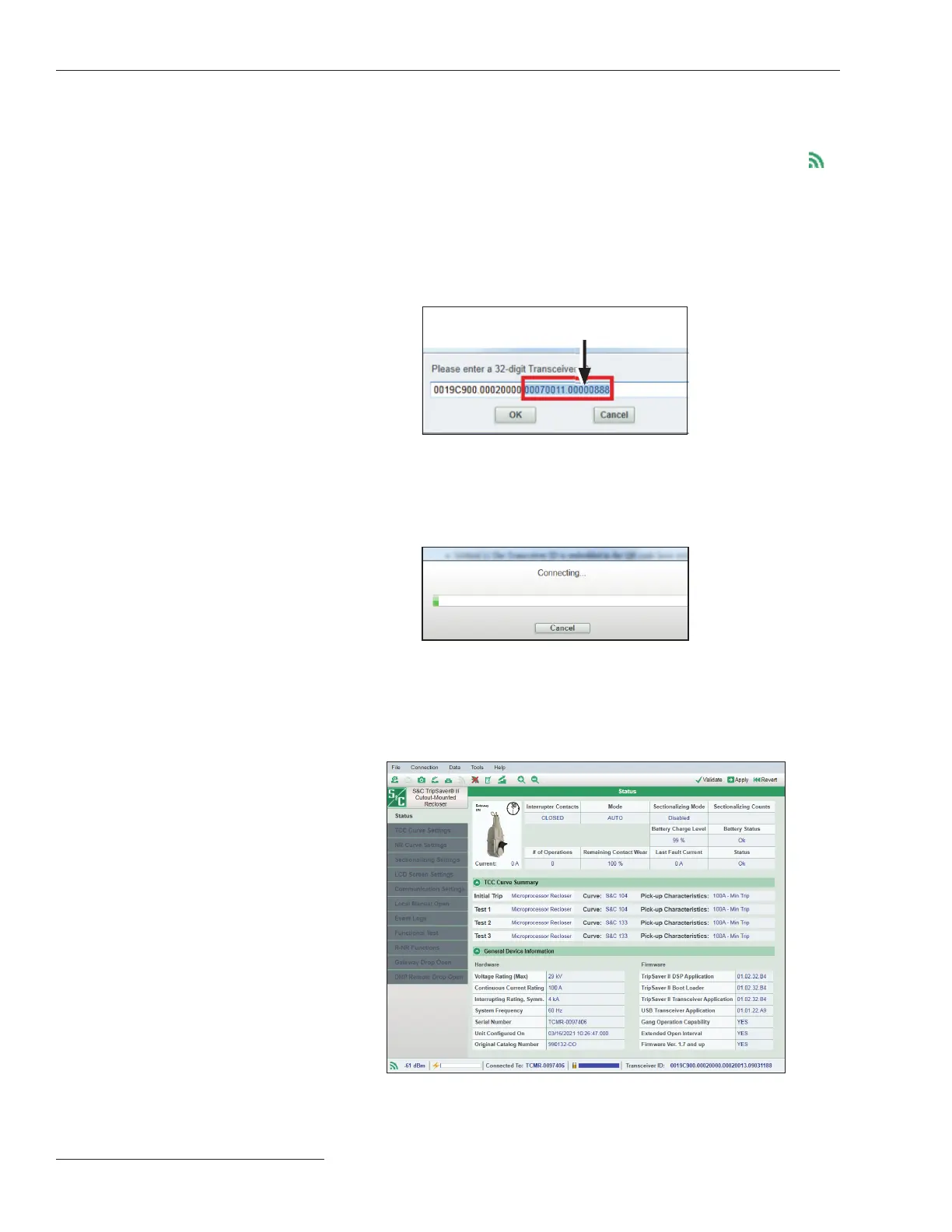

Figure 10. Enter last 16 digits into the
Transceiver ID Request dialog box.
Enter last 16 digits here
Figure 11. The Connection status bar.
Figure 12. The Recloser Status screen.
To Next Page
