8 S&C Instruction Sheet 461-503
(b) Position the power module near the base of the TripSaver II recloser, as
shown in Figure 3; the module will be held in place magnetically.
(c) Install the proper power outlet plug adapter onto the ac adapter. See
Figure 4.
(d) Plug the ac adapter into a wall outlet. See Figure 5.
(e) To verify the TripSaver II recloser is powered, rotate the MODE SELECTOR
lever and observe the LCD screen. If the LCD screen begins to scroll, it
indicates the unit has been successfully powered.

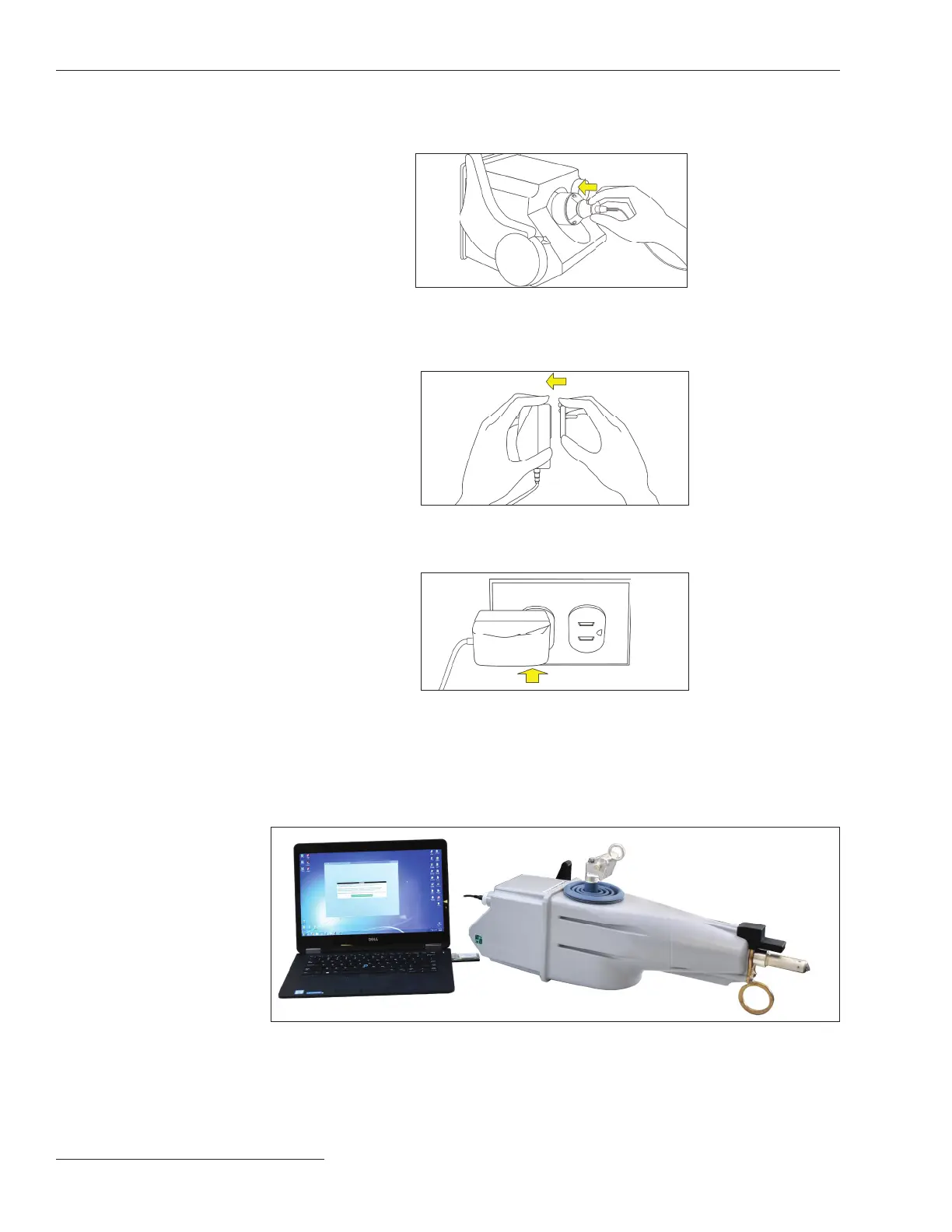

The setup, at the end of Step 2, should look like the picture in Figure 6.
Connecting to a TripSaver II Recloser
Figure 6. Completed TripSaver II recloser setup.
Figure 4. Install the plug adapter.
Figure 5. Connect the ac adapter to a wall
outlet.
Figure 3. Position the power module.
