FLAGS AND ABNORMAL CONDITIONS
82005-PG-D SANDEL SN3500 EHSI PILOT’S GUIDE PAGE 9-3

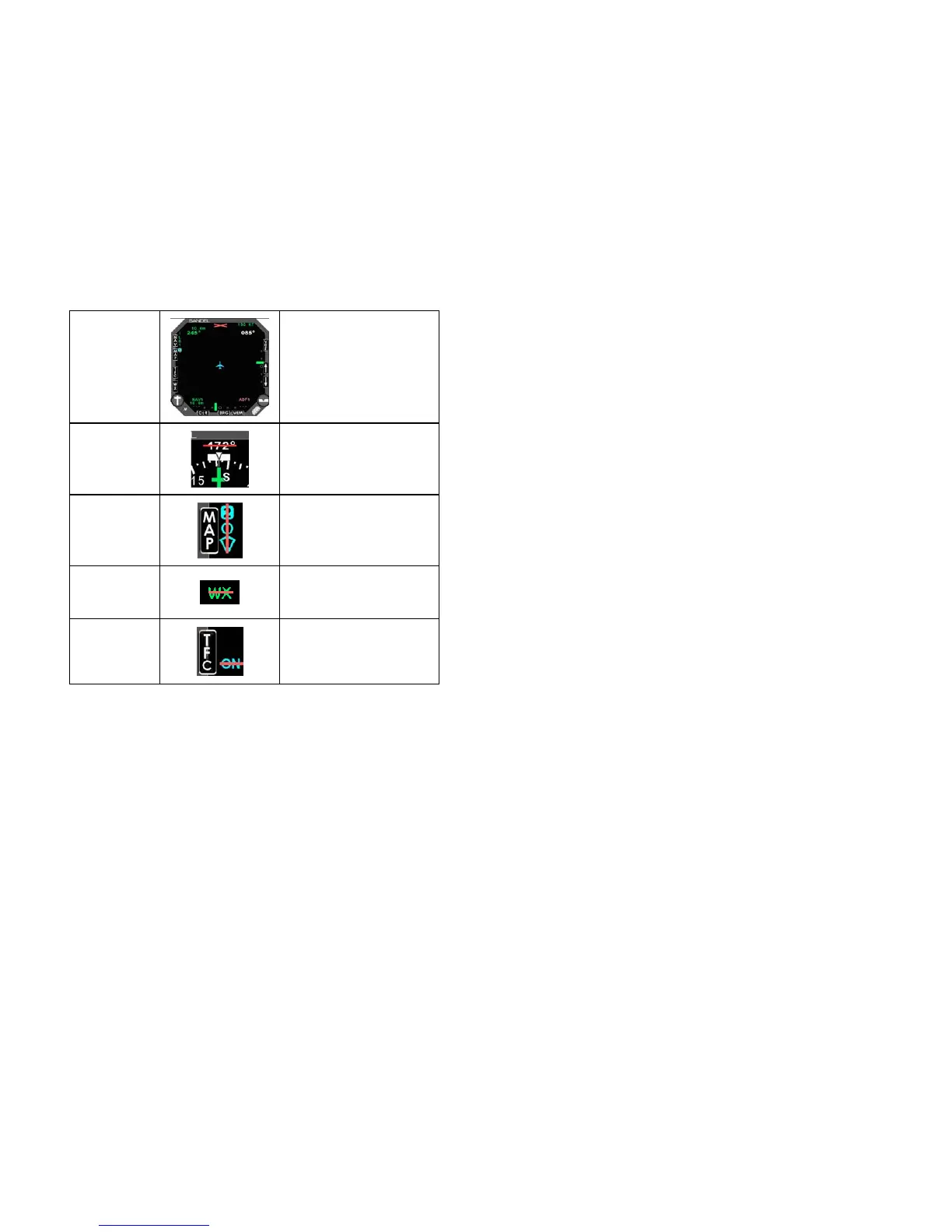

Loss of gyro &
fluxgate or;
Loss of gyro
without fluxgate
installed
Loss of compass rose. The
inner course and vertical
deviation indicators are
removed.
Fast slave
mode
Compass heading is redlined
during fast slave correction.
Heading has not stabilized.
Map flag
Redlined map icons indicates
that the map cannot be
displayed because of loss of
LNAV.
Stormscope®
flag
Redlined “WX” indicates loss
of data communication from
the WX-500 Stormscope®.
Traffic Flags
Redlined “ON”, “A” or “M” next
to TFC button indicates loss of
data communication from the
traffic processor.
FLAGS AND ABNORMAL CONDITIONS
82005-PG-D SANDEL SN3500 EHSI PILOT’S GUIDE PAGE 9-4
(This page intentionally left blank)
