Sandpiper Signature Series User Manual

hdb3dl4sm-rev1218
sa ndp ipe rpu mp.com
8 • Model HDB3/HDB4
HDB3 Heavy Duty Ball Valve - 3" Top Ported
Dimensions in inches (metric dimensions in brackets). Dimensional Tolerance .125" (3mm).

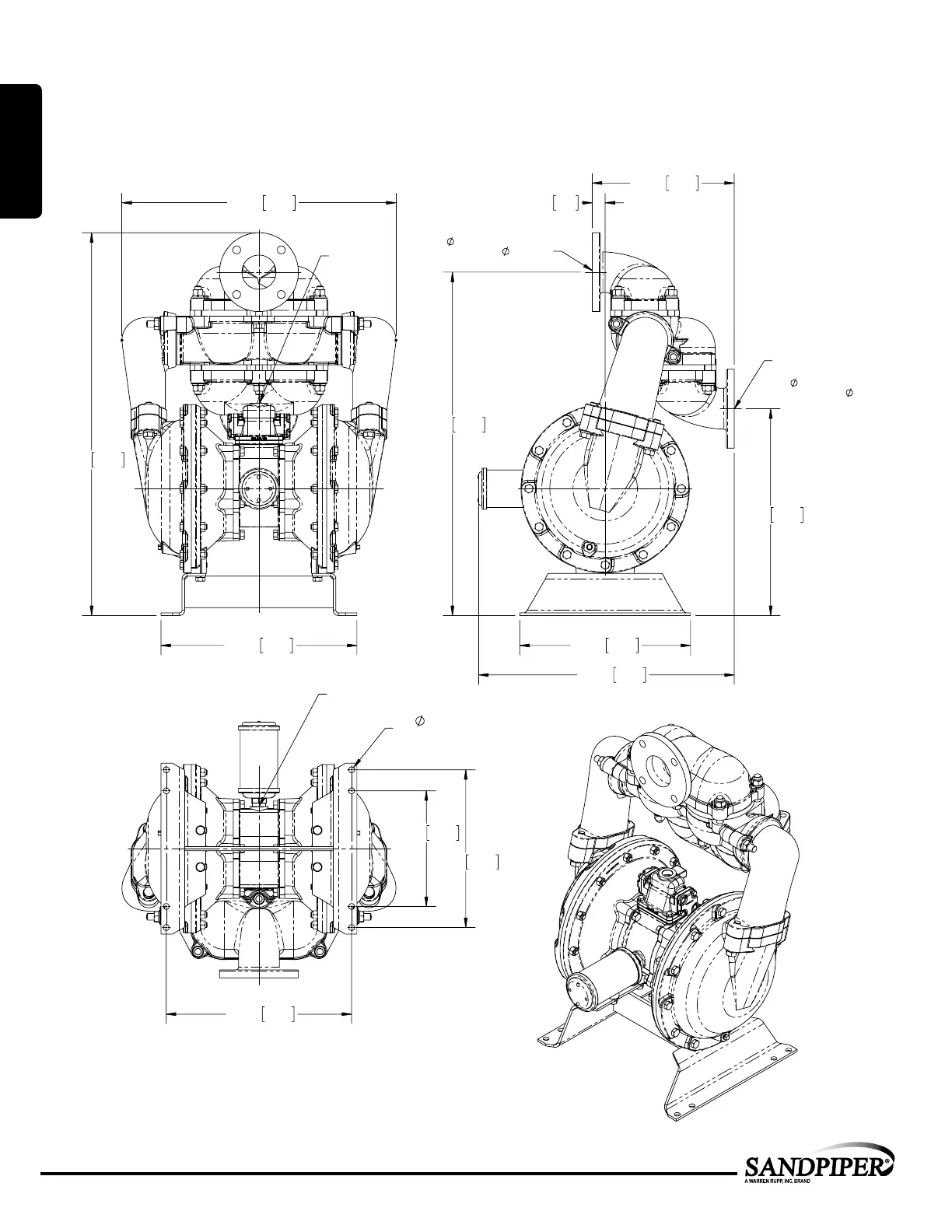

Dimensional Drawings
36.40 925
18.63 473
26.06 662
AIR INLET
3/4" NPT
19.66 499
32.65 829
1.22
31
13.50 343
16.25 413
24.30 617
SUCTION PORT
3" 150# ANSI FLANGE
4X .75 HOLES EQUALLY
SPACED ON A 6.00 B.C.
DISCHARGE PORT
3" 150# ANSI FLANGE
4X .75 HOLES EQUALLY
SPACED ON A 6.00 B.C.
11.00 279
15.00 381
17.63 448
8X
.56
MOUNTING HOLE
AIR EXHAUST
1" NPT
MODEL SPECIFIC
1: PUMP SPECS
