QUARTZ SLEEVE CLEANING USING WIPER MECHANISM
Step 3 - Push wiper back inStep 2 - Gently pull wiper knob outStep 1 - Lift wiper clip up

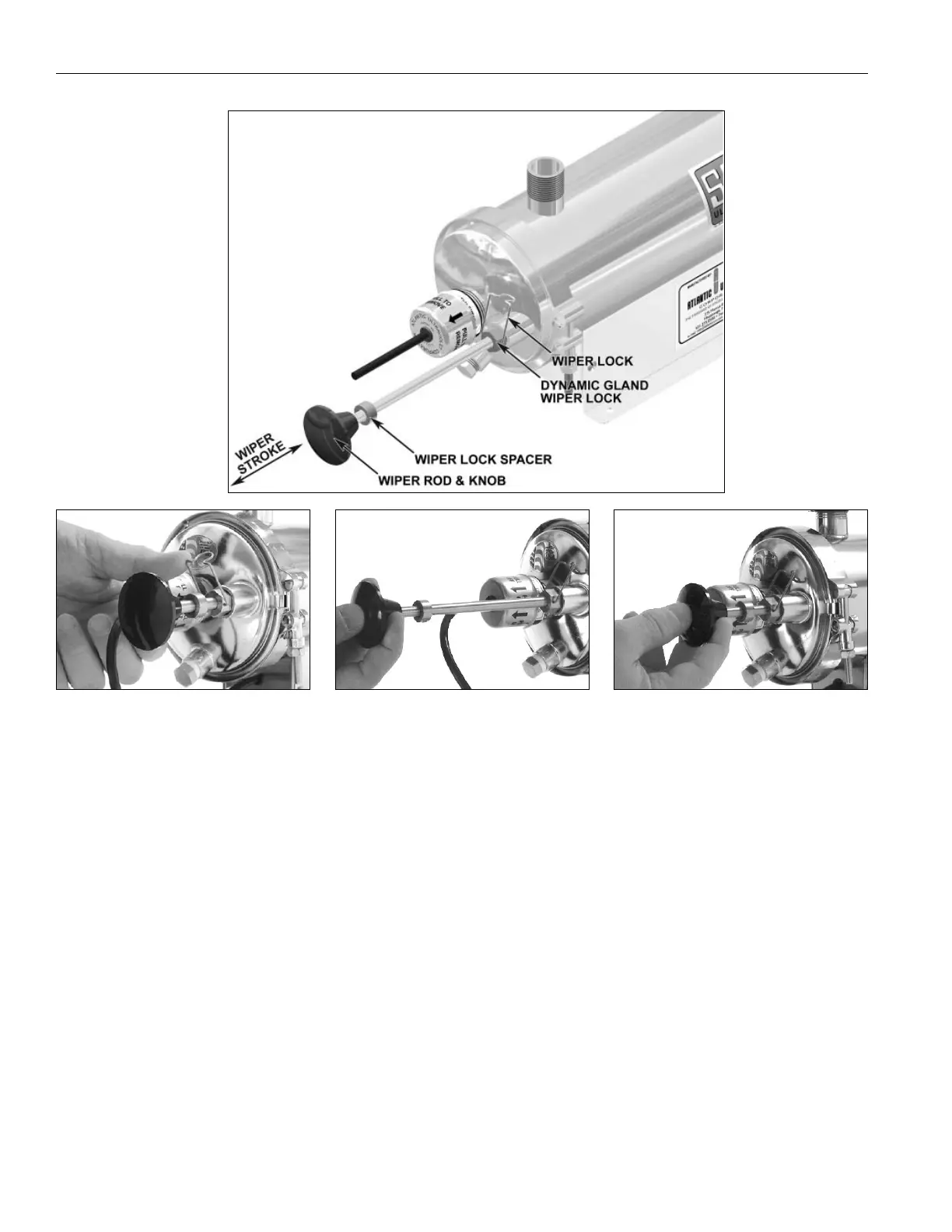

Figure 4 - Quartz Sleeve Cleaning
Routine cleaning of the quartz sleeve is easily accomplished, using the dual action wiper mechanism.
1. Lift wiper clip up and away from wiper rod.
2. Grasp wiper knob and gently pull out, away, from the purifi er until it reaches its stop.
3. Push wiper back in, toward the purifi er until it reaches its second stop.
4. Repeat steps 2 and 3 as necessary.
5. Holding wiper in place, return wiper clip and snap over wiper rod, in front of the wiper lock spacer.
