INSTALLATION

LOCATION

1. The water puriﬁ er is intended for indoor use only. The water puriﬁ er is designed to mount horizontally. The water puriﬁ er

should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area

surrounding the water puriﬁ er, should be between 35

F and 100

2. Electrical power supplied to the water puriﬁ er MUST match power requirements listed on the water puriﬁ er. Use of a voltage

surge protector is recommended.

3. Plug water puriﬁ er only into an approved ground fault circuit interrupt (GFCI) receptacle.

4. The water puriﬁ er should be located in a dry, well-lit area, which provides enough room to perform routine maintenance. This

includes a minimum distance of one chamber length from the wiper end, to allow for cleaning and/or the changing of the

lamp and quartz sleeve as well as a minimum of 6” on the opposite end of the water puriﬁ er. Minimum clearance to ﬂ oor 18’’.

5. The water puriﬁ er should always be located closest to the point of use. This reduces the chance of the puriﬁ ed water being

re-contaminated by bacteria in the water distribution system after the water puriﬁ er.

6. CAUTION: As with any water handling device, the water puriﬁ er should be located in an area where any possible

condensation or leakage from the water puriﬁ er, any puriﬁ er accessory and/or plumbing will not result in damage to the

area surrounding the water puriﬁ er. For added protection, it is recommended that a suitable drain pan be installed under the

puriﬁ er. The drain pan must be plumbed to an adequate, free ﬂ owing drain to prevent water damage in event of a leak. There

are numerous leak detection/ﬂ ood stop devices, available on the market today, designed to stop ﬂ ow of water, reducing the

chance of water damage due to leakage. For more details regarding leak prevention and/or limiting damages due to leaks

please contact factory.

7. The water puriﬁ er should be located after all other water devices, such as De-ionizers, Water Softeners, Carbon Filters, Pre-

Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This reduces the chance of the puriﬁ ed water being re-contaminated by

bacteria in any of these units.

DIMENSIONAL DATA

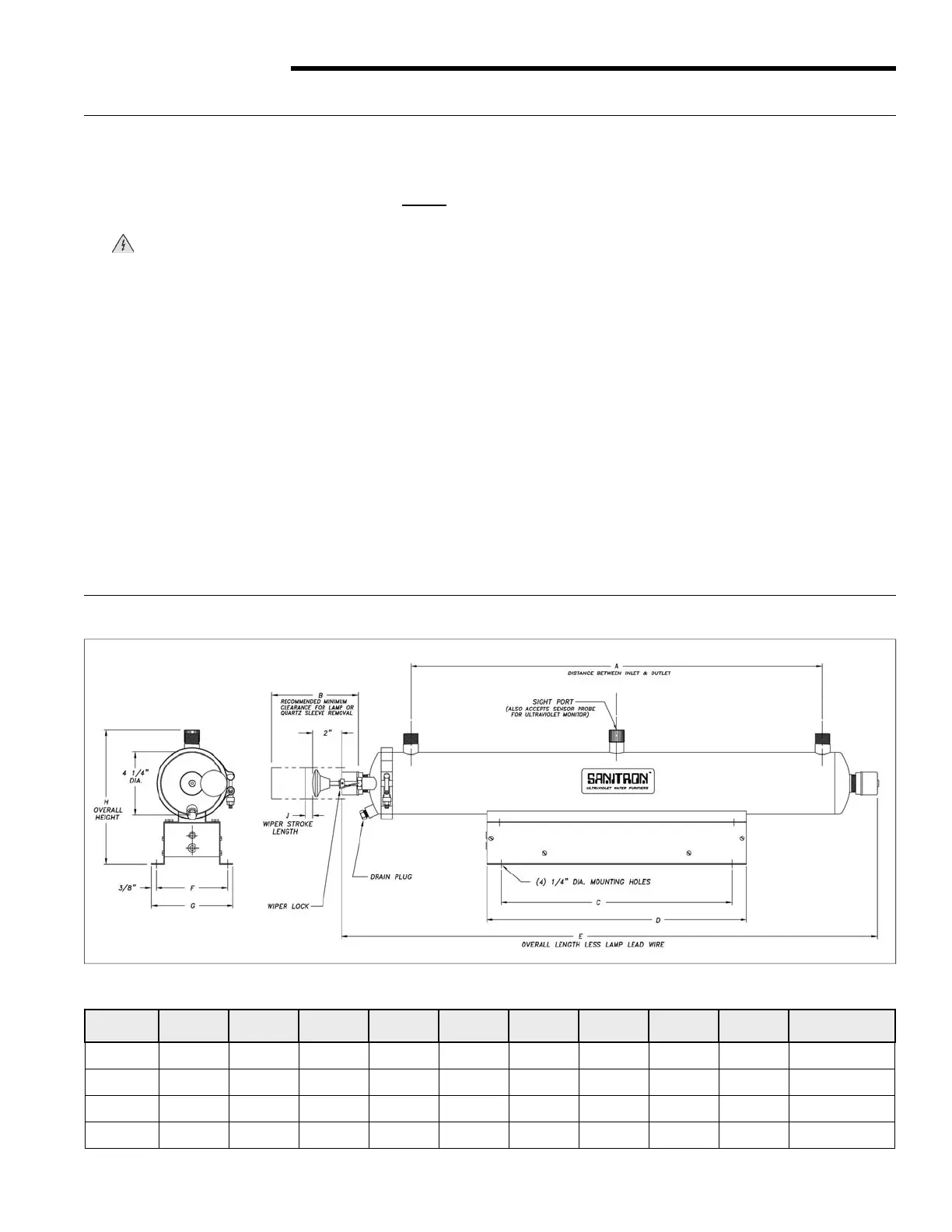

Figure 1 - SANITRON

Dimensional Drawing

Table 2 - SANITRON

Dimensional Data

Model A B C D E F G H J Inlet/Outlet

S17A 8-3/4” 17” 8-3/4” 10” 17-3/8” 3-5/8” 4-5/16” 8-3/16” 7-3/16” 3/4”m NPT

S23A 14-3/4” 23” 13-1/4” 14-1/2” 23-3/8” 3-5/8” 4-5/16” 8-3/16” 10-3/16” 3/4”m NPT

S37C 28-1/2” 37” 16” 18” 37-3/8” 4-15/16” 5-11/16” 9-1/2” 11-1/8” 1”m NPT

S50C 40-7/8” 50” 26” 30” 50-3/8” 4-15/16” 5-11/16” 9-1/2” 13-13/16” 1- 1/2”m NPT

All speciﬁ cations, dimensional data, etc are approximate and subject to change without notice.
