SEC1000 FIRE ALARM CONTROL PANEL
1
5
2
3
7
Mounting
hole
4
Mounting hole
6

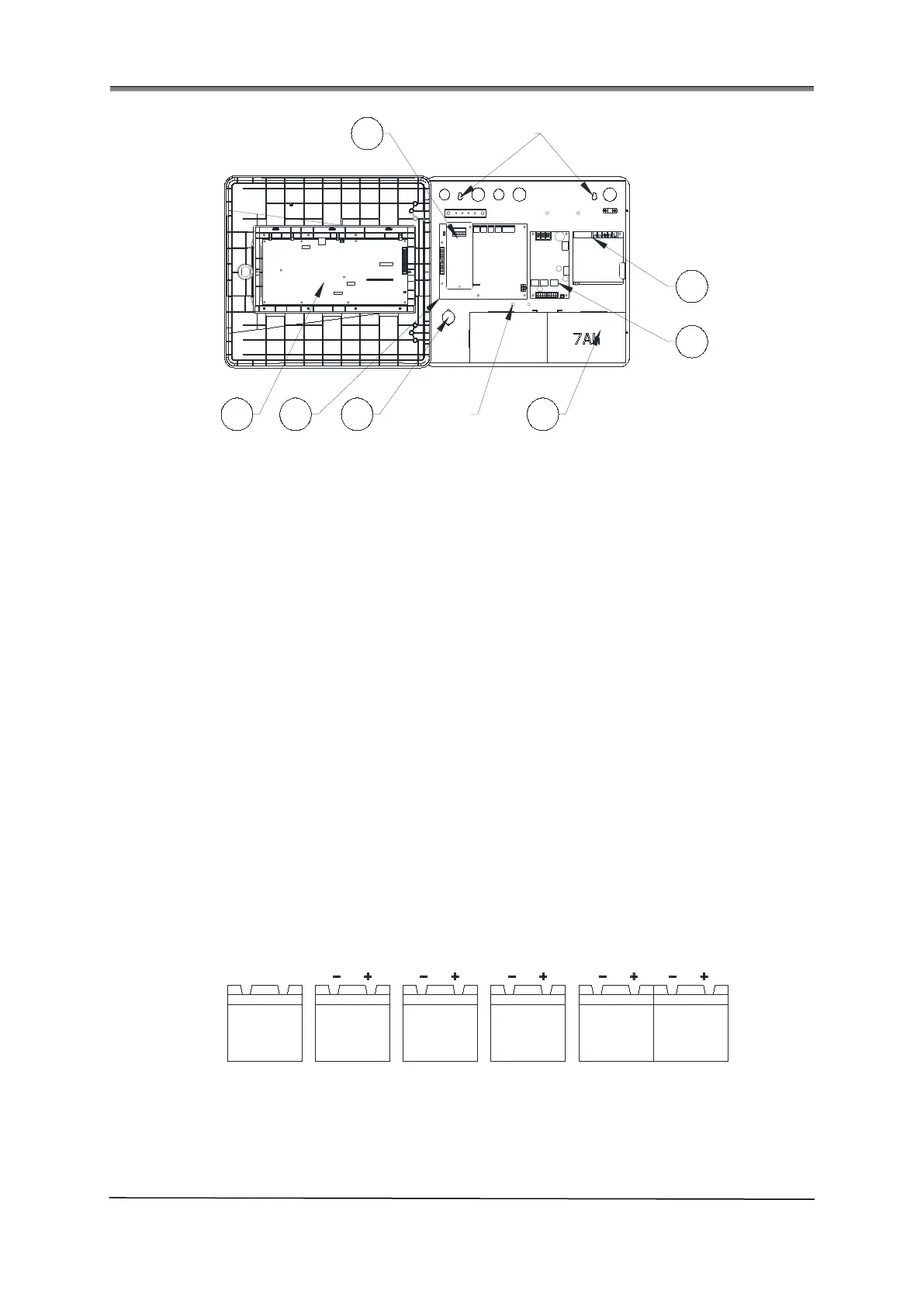

①CB-Board ② MB-Board ③Communication Board ④PMC_01
⑤Switching Power Supply ⑥Buzzer ⑦Battery
In general, the SEC1000 consists of 2 sections:
1. The left internal section contains the CB-Board, which integrated main processor, Buttons
and LEDs, the I/O communication interface of MB-Board.
2. The right internal section contains the MB-Board, the Communication Board for
networking, the P.S.E (power supply equipment), the Buzzer, the battery compartment, the
mounting holes and cable knock-outs.
P.S.E (Include the PMC_01 boarda and Switching Power Supply, refer to the separate manual
of PMC_01 and the datasheet of Switching Power Supply for more details)
The P.S.E is an integrated unit that provides power both for the panel and the backup
rechargeable battery. And it is capable of monitoring the mains and battery states.
CB-Board
It is the main processor of system. The CB-Board responsible for display, Buttons and LEDs.
MB-Board
It generally contains terminals or interfaces for connecting the P.S.E, the loop devices, The
diagram below shows the connection terminal blocks for field devices on the MB-Board.
LOOP IN
LOOP OUT
24VK
S.C.OUT
F.A.OUT
FAULT OUT
NO COM
Communication Board (optional)
This board is optional for external communication with other panels. Specifically, up to 20
panels can be networked with each other through the terminal pair of CANH and CANL on the
