SEC1000 FIRE ALARM CONTROL PANEL
3.4 Mains connection

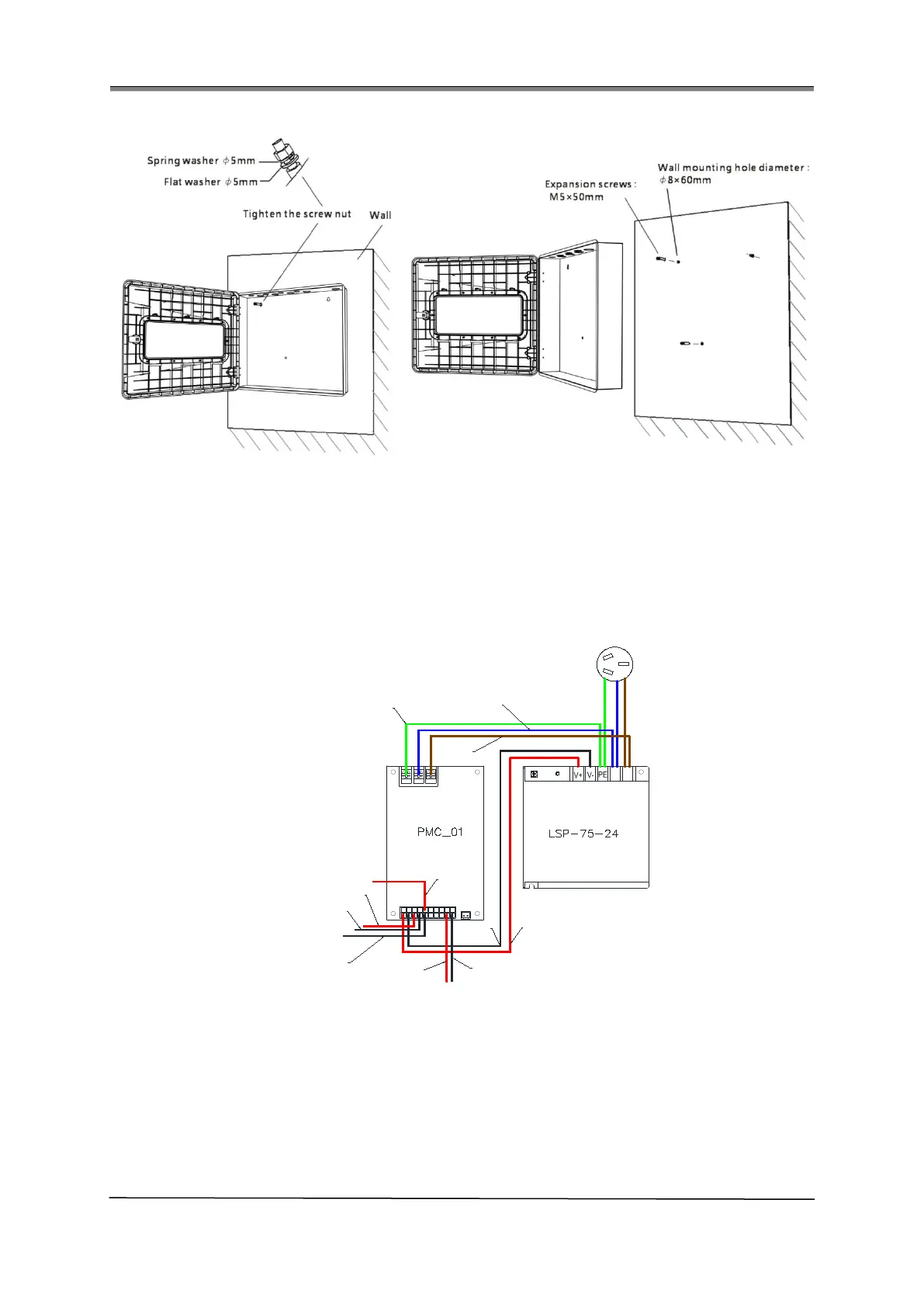

To connect the panel to the main power source, use a three-core cable with good quality
cable glands fitted, and connect it to the P.S.E as the figure shows below.
250V 10A
L
N
Red
Black
Red
Black
Red
Red
Black
Black
Yellow&green
Blue
Brown
To Battery
3.5 Battery connection
For this single loop system, 2×12V/7Ah sealed lead acid batteries are used as per the
calculation of battery capacity in section 6. The batteries should be connected in series first
using the link wire supplied and be located within the panel enclosure. Then connect the
battery wire leads to the P.S.E terminal connections.
