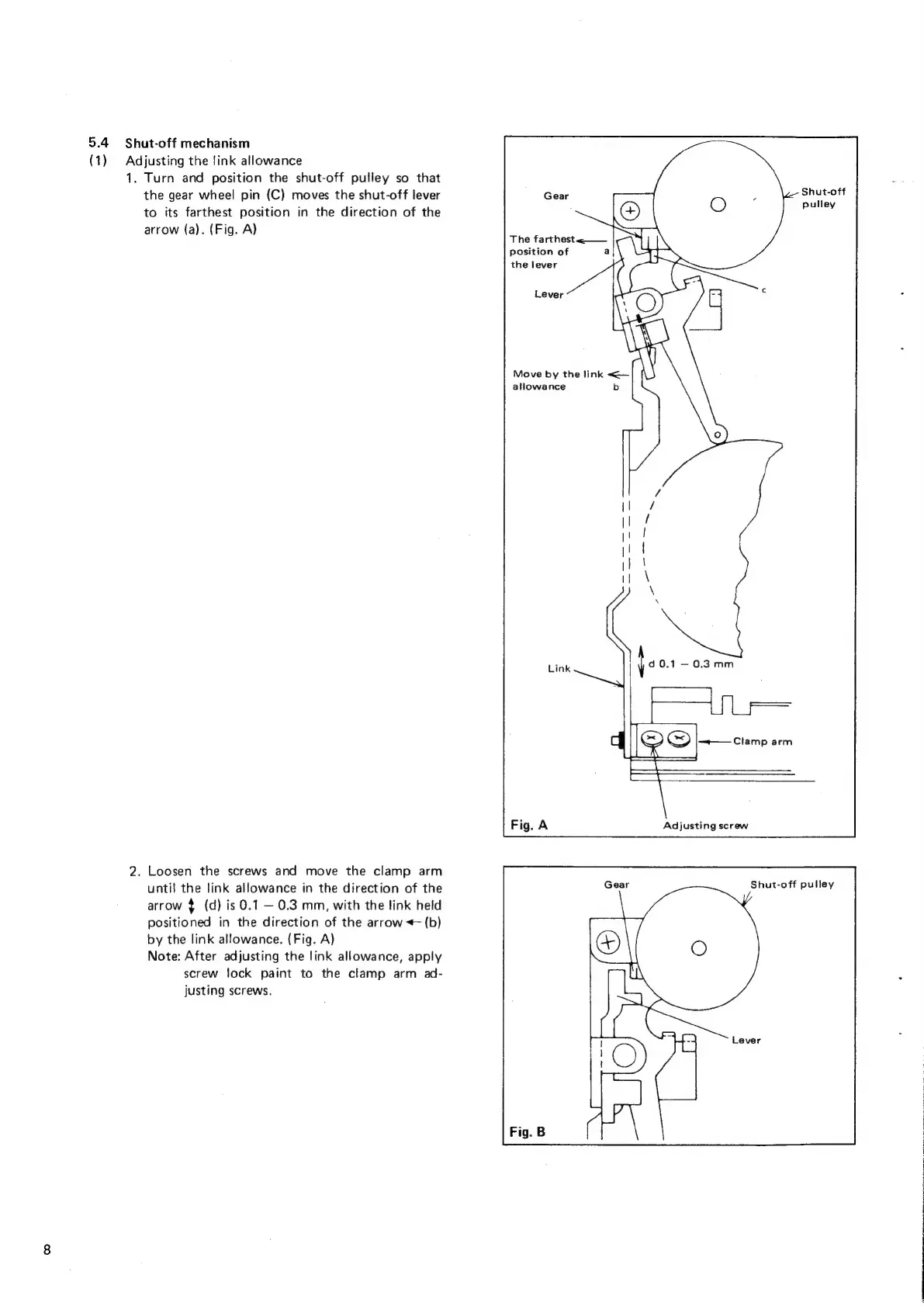

Shut-off

mechanism

(1)

Adjusting

the

fink

allowance

1.

Turn

and

position

the

shut-off

pulley

so

that

the

gear

wheel

pin

(C)

moves

the

shut-off

lever

to

its

farthest

position

in

the

direction

of

the

arrow

(a).

(Fig.

A)

2.

Loosen

the

screws

and

move

the

clamp

arm

until

the

link

allowance

in

the

direction

of

the

arrow

$

(d)

is

0.1

—

0.3

mm,

with

the

link

held

positioned

in

the

direction

of

the

arrow

+

(b)

by

the

link

allowance.

(Fig.

A)

Note: After

adjusting

the

link

allowance,

apply

screw

lock

paint

to

the

clamp

arm

ad-

justing

screws.

Shut-off

pulley

The

farthest

<_—_

position

of

the

fever

Move

by

the

link

<<—

allowance

b

Adjusting

screw

Shut-off

pulley
