Sankyo STD-1700 - Specifications

Type
Power requirement
Power consumption
Dimensions
Weight
Cassette
Tape speed
Fast forward time
Rewind time
Recording time
Recording system
Erasing system
Terminals
Wow and flutter
Signal-to-noise ratio
Frequency response
Distortion
Subfunctions
Semiconductors
Standard accessories
Operation manual
Warranty card

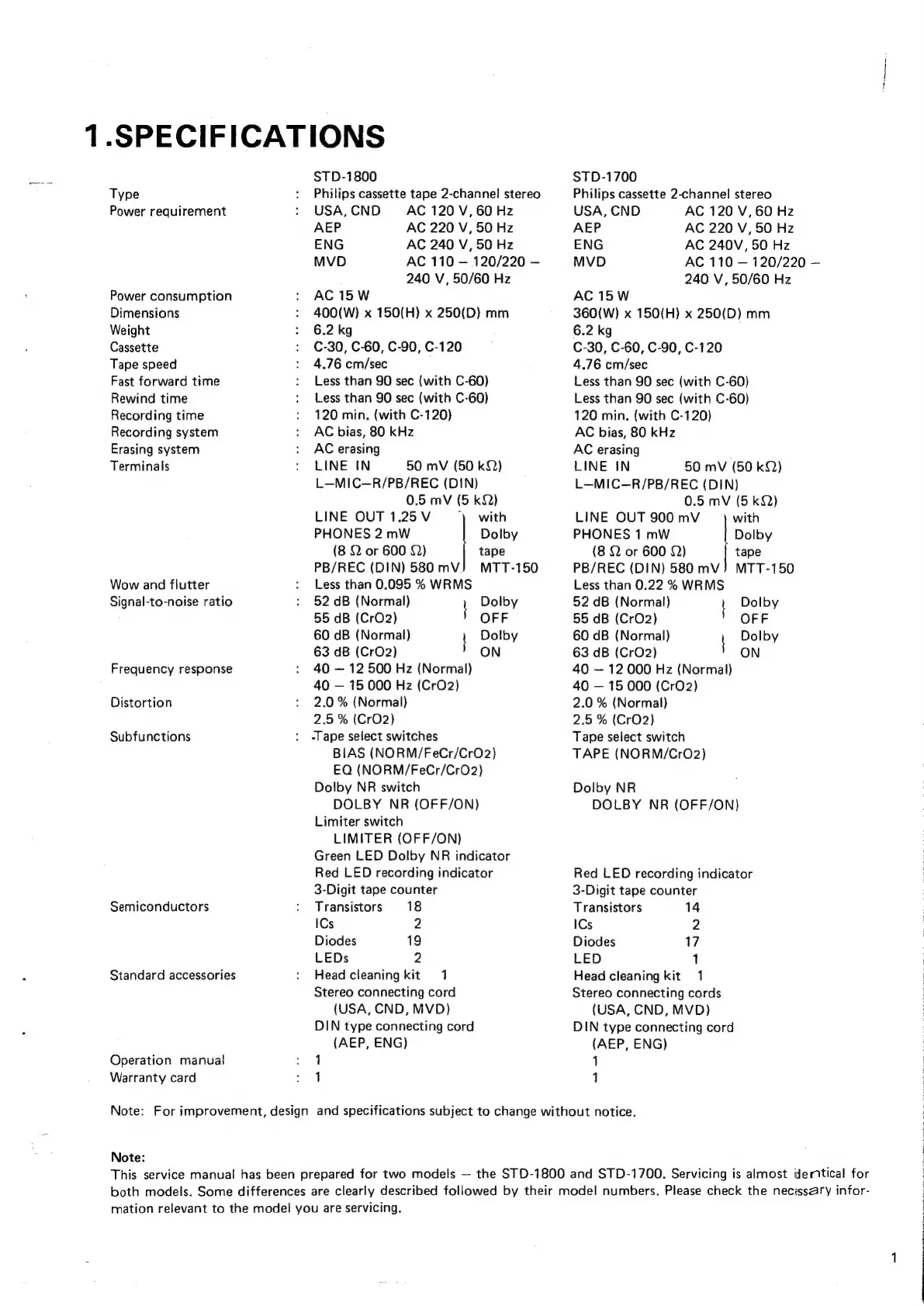

1.SPECIFICATIONS
STD-1800
Philips cassette tape 2-channel stereo
USA, CND AC 120 V, 60 Hz
AEP AC 220 V, 50 Hz
ENG AC 240 V, 50 Hz
MVD AC 110 — 120/220 —
240 V, 50/60 Hz
AC 15 W
400(W) x 150(H) x 250(D) mm
6.2 kg
C-30, C-60, C-90, C-120
4.76 cm/sec
Less than 90 sec (with C-60)
Less than 90 sec (with C-60)
120 min. (with C-120)
AC bias, 80 kHz
AC erasing
LINE IN 50 mV (50 kQ)
L—MIC—R/PB/REC (DIN)
0.5 mV (5 kQ)
LINE OUT 1.25 V ) with
PHONES 2 mW Dolby
(8 Q or 600 Q) tape
PB/REC (DIN) 580 mV) MTT-150
Less than 0.095 % WRMS
52 dB (Normal) Dolby
55 dB (CrO2) OFF
60 dB (Normal) Dolby
63 dB (CrO2) ON
40 — 12 500 Hz (Normal)
40 — 15 000 Hz (CrO2)
2.0 % (Normal)
2.5 % (CrO2)
Tape select switches
BIAS (NORM/FeCr/CrO2)
EQ (NORM/FeCr/CrO2)
Dolby NR switch
DOLBY NR (OFF/ON)
Limiter switch
LIMITER (OFF/ON)
Green LED Dolby NR indicator
Red LED recording indicator
3-Digit tape counter
Transistors 18
ICs 2
Diodes 19
LEDs 2
Head cleaning kit 1
Stereo connecting cord
(USA, CND, MVD)
DIN type connecting cord
(AEP, ENG)
1
1
STD-1700
Philips cassette 2-channel stereo
USA, CND AC 120 V, 60 Hz
AEP AC 220 V, 50 Hz
ENG AC 240V, 50 Hz
MVD AC 110 — 120/220 —
240 V, 50/60 Hz
AC 15 W
360(W) x 150(H) x 250(D) mm
6.2 kg
C-30, C-60, C-90, C-120
4.76 cm/sec
Less than 90 sec (with C-60)
Less than 90 sec (with C-60)
120 min. (with C-120)
AC bias, 80 kHz
AC erasing
LINE IN 50 mV (50 kQ)
L—MIC—R/PB/REC (DIN)
0.5 mV (5 kQ2)
LINE OUT 900 mV with
PHONES 1 mW Dolby
(8 Q or 600 2) tape
PB/REC (DIN) 580 mV} MTT-150
Less than 0.22 % WRMS
52 dB (Normal) Dolby
55 dB (CrO2) OFF
60 dB (Normal) Dolby
63 dB (CrO2) ON
40 — 12 000 Hz (Normal)
40 — 15 000 (CrO2)
2.0 % (Normal)
2.5 % (CrO2)
Tape select switch
TAPE (NORM/CrO2)
Dolby NR
DOLBY NR (OFF/ON)
Red LED recording indicator
3-Digit tape counter
Transistors 14
ICs 2
Diodes 17
LED 1
Head cleaning kit 1
Stereo connecting cords
(USA, CND, MVD)
DIN type connecting cord
(AEP, ENG)
1
1
Note: For improvement, design and specifications subject to change without notice.
Note:
This service manual has been prepared for two models — the STD-1800 and STD-1700. Servicing is almost identical for
both models. Some differences are clearly described followed by their model numbers. Please check the necissary infor-
mation relevant to the model you are servicing.
