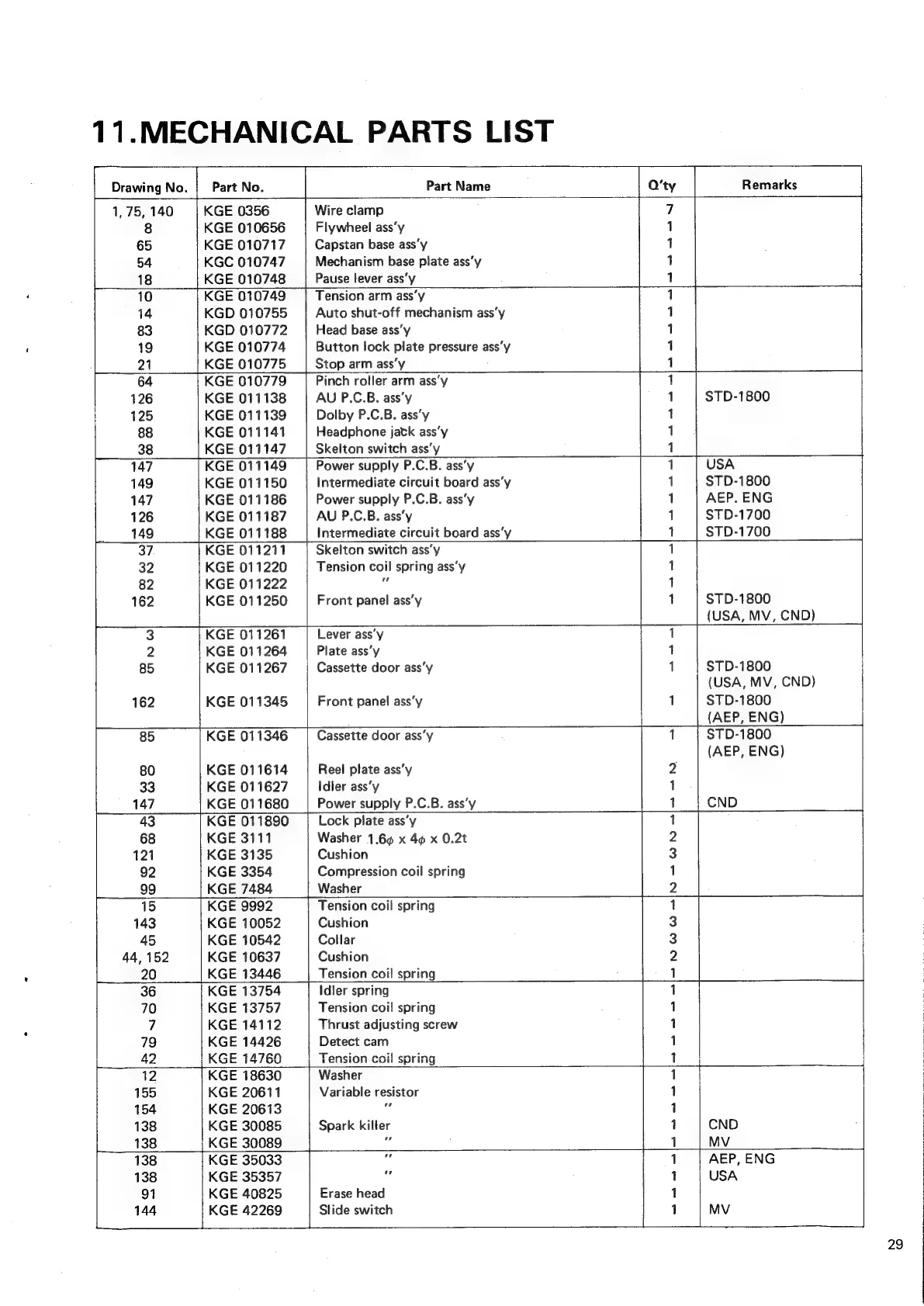

11.MECHANICAL PARTS LIST
Drawing No. | Part No. Part Name | Q'ty Remarks
1,75, 140 KGE 0356 Wire clamp 7
8 KGE 010656 Flywheel ass’y 1
65 KGE 010717 Capstan base ass‘y 1
54 KGC 010747 Mechanism base plate ass’y 1
18
KGE
010748
Pause
lever
ass’y
1
10 KGE 010749 Tension arm ass’y 1
14 KGD 010755 Auto shut-off mechanism ass’y 1
83 KGD 010772 Head base ass’y 1
19 KGE 010774 Button lock plate pressure ass’y 1
21 KGE 010775 Stop arm ass’y i_|
64 KGE 010779 Pinch roller arm ass’y | 1
126 KGE 011138 AU P.C.B. ass’y 1 STD-1800
125 KGE 011139 Dolby P.C.B. ass’y 1
88 KGE 011141 Headphone jatk ass’y 1
38
KGE
011147
Skelton
switch
ass’y
1
|
147 KGE 011149 Power supply P.C.B. ass’y 1 USA
149
KGE
011150
Intermediate
circuit
board
ass’y
1
STD-1800
147
KGE
011186
Power
supply
P.C.B.
ass’y
1
AEP.
ENG
126 KGE 011187 AU P.C.B. ass’y 1 STD-1700
149 KGE 011188 Intermediate circuit board ass’y 1 STD-1700
37 KGE 011211 Skelton switch ass’y 1
32 KGE 011220 Tension coil spring ass’y 1
82 KGE 011222 ee 1
162
KGE
011250
Front
panel
ass’y
1
STD-1800
(USA, MV, CND)
KGE 011261 Lever ass’y 1
2 KGE 011264 Plate ass‘y 1
85 KGE 011267 Cassette door ass’y 1 STD-1800
(USA, MV, CND}
162 KGE 011345 Front panel ass‘y 1 STD-1800
(AEP, ENG)
85 KGE 011346 Cassette door ass’y 1 STD-1800
(AEP, ENG)
80
KGE
011614
Reel
plate
ass’y
2
33
KGE
011627
Idler
ass’y
1
147 KGE 011680 Power supply P.C.B. ass’y 1 CND
43 KGE 011890 | Lock plate ass’y 1 ~ |
68 KGE 3111 Washer 1.6¢ x 4¢ x 0.2t 2
121
KGE
3135
Cushion
3
92 KGE 3354 Compression coil spring 1
99 KGE 7484 Washer L 2
15 KGE 9992 Tension coil spring 1
143
KGE
10052
Cushion
3
45
KGE
10542
Collar
3
44,152 KGE 10637 Cushion 2
20 KGE 13446 Tension coil spring 1
36
KGE
13754
=
Idler
spring
1
70 KGE 13757 Tension coil spring 1
7 KGE 14112 Thrust adjusting screw 1
79 KGE 14426 Detect cam 1
42 KGE 14760 Tension coil spring 1
12. | KGE 18630 Washer 1
155 KGE 20611 Variable resistor 1
154 KGE 20613 i 1
| 138 KGE 30085 Spark killer 1 CND
138 KGE 30089 i 1 MV
138 KGE 35033. | G 1 | AEP, ENG
138 KGE 35357 - 1 USA
91 KGE 40825 Erase head 1
144 KGE 42269 Slide switch 1 MV
29
