ATSC Converter Box

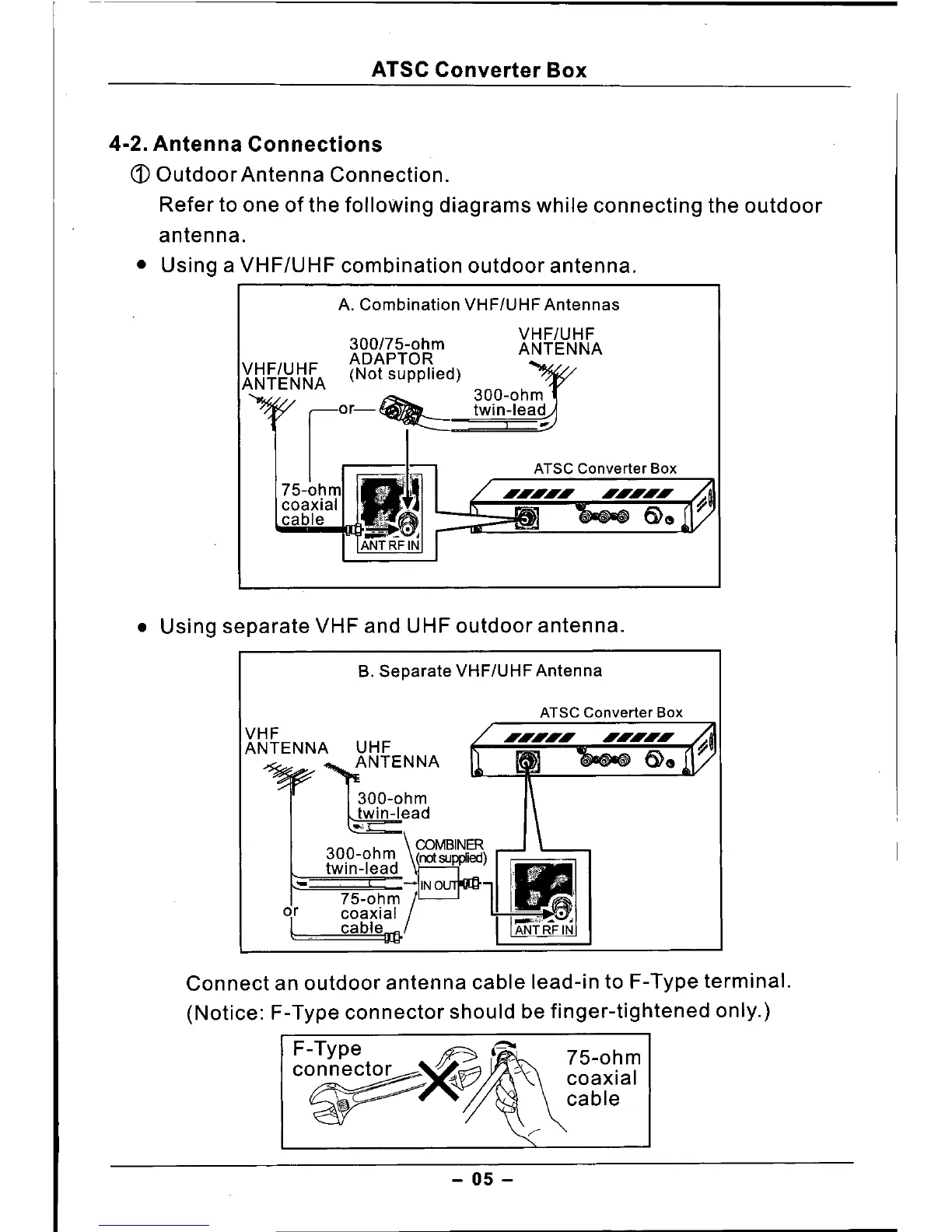

4-2. Antenna Connections
(j)
Outdoor Antenna Connection.
Refer to one of the following diagrams while connecting the outdoor
antenna.
• Using a VHF/UHF combination outdoor antenna.
A. Combination VHF/UHF Antennas
300/75-ohm
ADAPTOR
VHF/UHF (Not supplied)
ANTENNA
I"-~
~~~~~a~.i;
cable:::,~.~
~'.:.~~
ANTRFIN
VHF/UHF
ANTENNA
300-ohm
twin-lead
ATSC Converter Box
• Using separate VHF and UHF outdoor antenna.
B. Separate VHF/UHF Antenna
VHF
ANTENNA
or
(
ATSC Converter Box
Connect an outdoor antenna cable lead-in to F-Type terminal.
(Notice: F-Type connector should be finger-tightened only.)
F-Type ~ ~ 75-ohm
co~~~ ::- coaxial
~ ~ cable
- 05 -
