Sansonic FT-300A - Control Operation Quick Reference; Front Panel Controls and Indicators; Rear Panel Connection Ports; Remote Control Button Functions

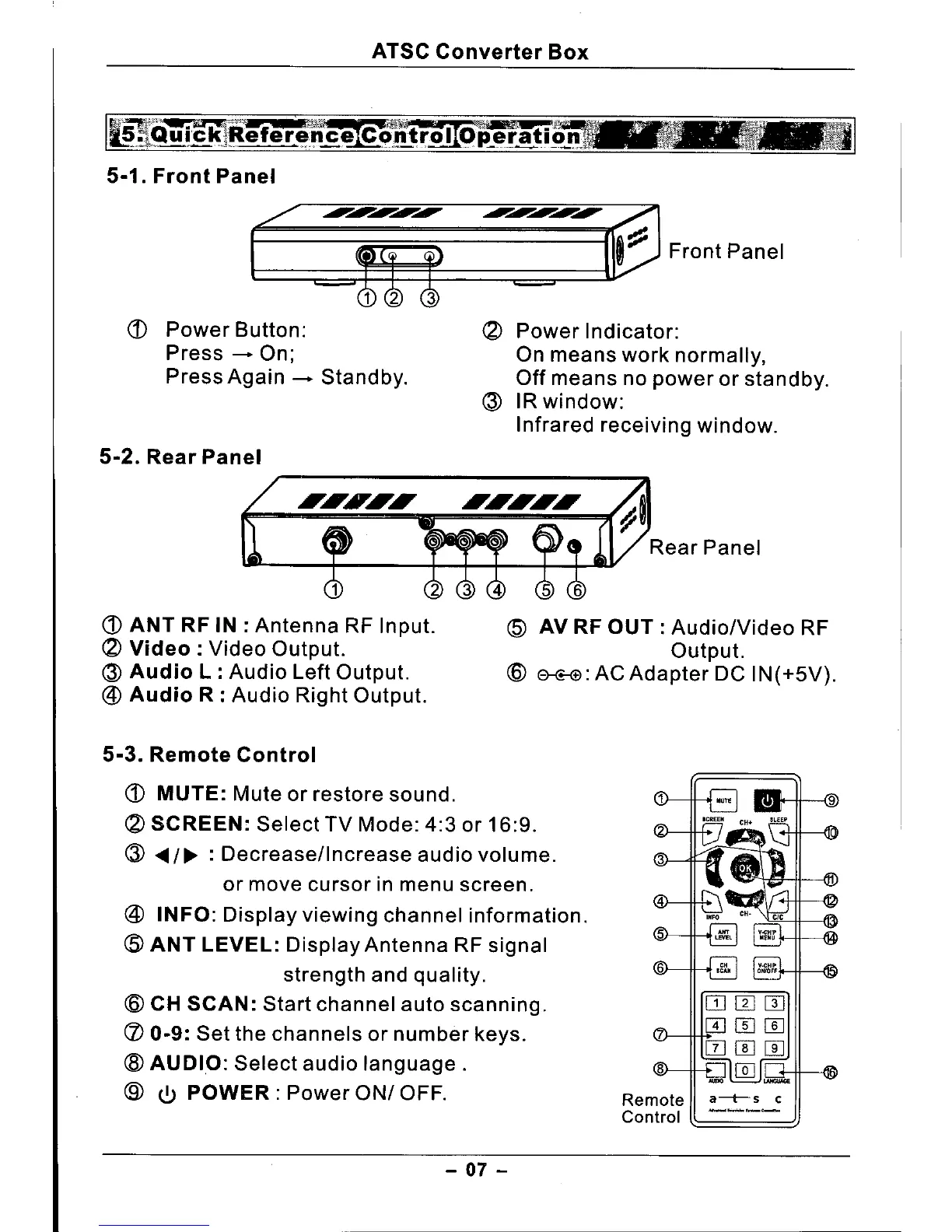

ATSC Converter Box
5-1. Front Panel
CD Power Button:
Press - On;
Press Again - Standby.
5-2. Rear Panel
~ Power Indicator:
On means work normally,
Off means no power or standby.
(3) IR window:
Infrared receiving window.
CD ANT RF IN: Antenna RF Input.
~ Video: Video Output.
(3) Audio L : Audio Left Output.
@ Audio R : Audio Right Output.
@ AV RF OUT: Audio/Video RF
Output.
(Q) 8-C0-0:ACAdapterDC IN(+5V).
5-3. Remote Control
CD MUTE: Mute or restore sound.
(2) SCREEN: Select TV Mode: 4:3 or 16:9.
(3) .•••/~ : Decrease/Increase audio volume.
or move cursor in menu screen.
@ INFO: Display viewing channel information.
@ ANT LEVEL: Display Antenna RF signal
strength and quality.
(Q) CH SCAN: Start channel auto scanning.
(J) 0-9: Set the channels or number keys.
<ID AUDIO: Select audio language.
@ ~ POWER: Power ON/ OFF.
- 07 -
Remote
Control
