Sansui 771 - Page 24

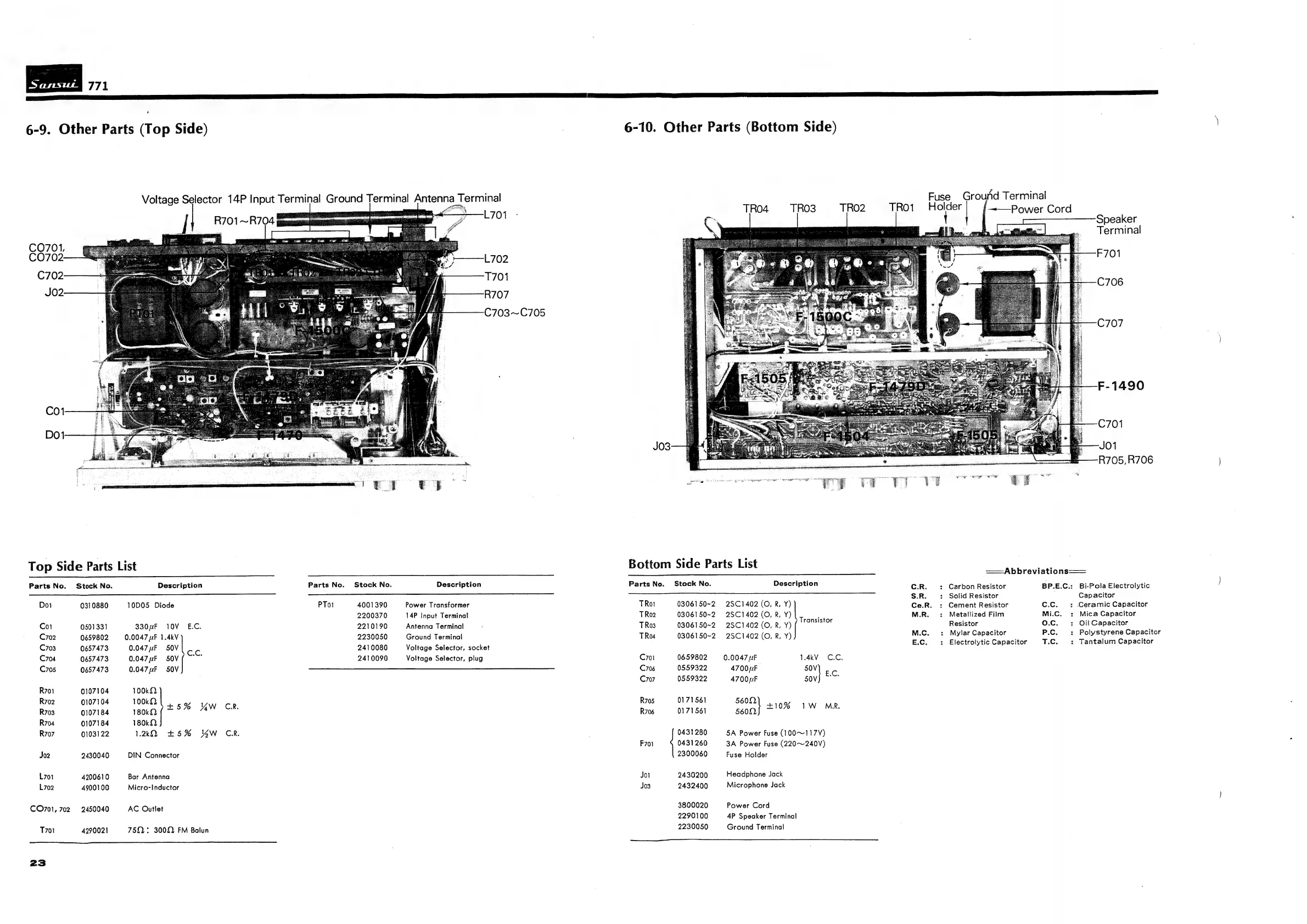

6-9. Other Parts (Top Side)
Voltage Selector 14P Input Terminal Ground Terminal Antenna Terminal
R701~R704
CQ701,
CO702
JO2
Top Side Parts List
Parts No. Stock No. Description
Dot 0310880 10D05 Diode
Co 0501331 330uF 10V_ E.C.
C702 0659802 0.0047/F 1.4kV
C703 0657473 0.047 uF 50V cc
C704 0657473 0.047uF S5OV(
C705 0657473 0.047uF 50V
R701 0107104 100k
R702 0107104 100k
+54 Vw SOCLR.
R703 0107184 180kQ vo th
R704 0107184 180k
R707 0103122 1.2kQ £5% Ww Cr.
Jo2 2430040 DIN Connector
L701 4200610 Bar Antenna
L702 4900100 Micro-Inductor
CO701, 702 2450040 AC Outlet
T701 4290021 7§Q.: 3002 FM Balun
23
C703~C705
Parts No. Stock No. Description
PTo1 4001390 Power Transformer
2200370 14P Input Terminal
2210190 Antenna Terminal
2230050 Ground Terminal
2410080 Voltage Selector, socket
2410090 Voltage Selector, plug
6-10. Other Parts (Bottom Side)
Fuse Ground Terminal
TRO4 TRO3 TRO2 TRO1
Holder
Bottom Side Parts List
Parts No. Stock No. Description CR.
S.R.
TRoi 0306150~2 25C1402 (O, R, Y) Ce.R.
TRoe 0306150~2 2SC1402 (O, R, Y) T age M.R.
TRo3 0306150~2 2S8C1402(0,R, Y)( “o"'
TRoa 0306150~2 25C1402 (O, R, Y) ie
C701 0659802 0.0047 uF 1.4kV C.C.
C706 0559322 4700"F a ae
C707 0559322 4700 uF 50V) ~~
R705 0171561 560,
+ 7}
R706 0171561 Saal SIDES MAN: EI
0431280 5A Power Fuse (100~-117V)
F701 0431260 3A Power Fuse (220~240V)
2300060 Fuse Holder
Jo 2430200 Headphone Jack
Jo3 2432400 Microphone Jack
3800020 Power Cord
2290100 4P Speaker Terminal
2230050 Ground Terminal
| —~—Power Cord
Speaker
Terminal
F701
C706
C707
F-1490
C701
JO1
R705,R706
=~ Abbreviations——
Carbon Resistor BP.E.C.:
Solid Resistor
Cement Resistor C.Cc. H
Metallized Film Mi.Cc. :
Resistor O.C. 7
Mylar Capacitor P.C, :
Electrolytic Capacitor T.C, H
Bi-Pola Electrolytic
Capacitor
.Ceramic Capacitor
Mica Capacitor
Oil Capacitor
Polystyrene Capacitor
Tantalum Capacitor
