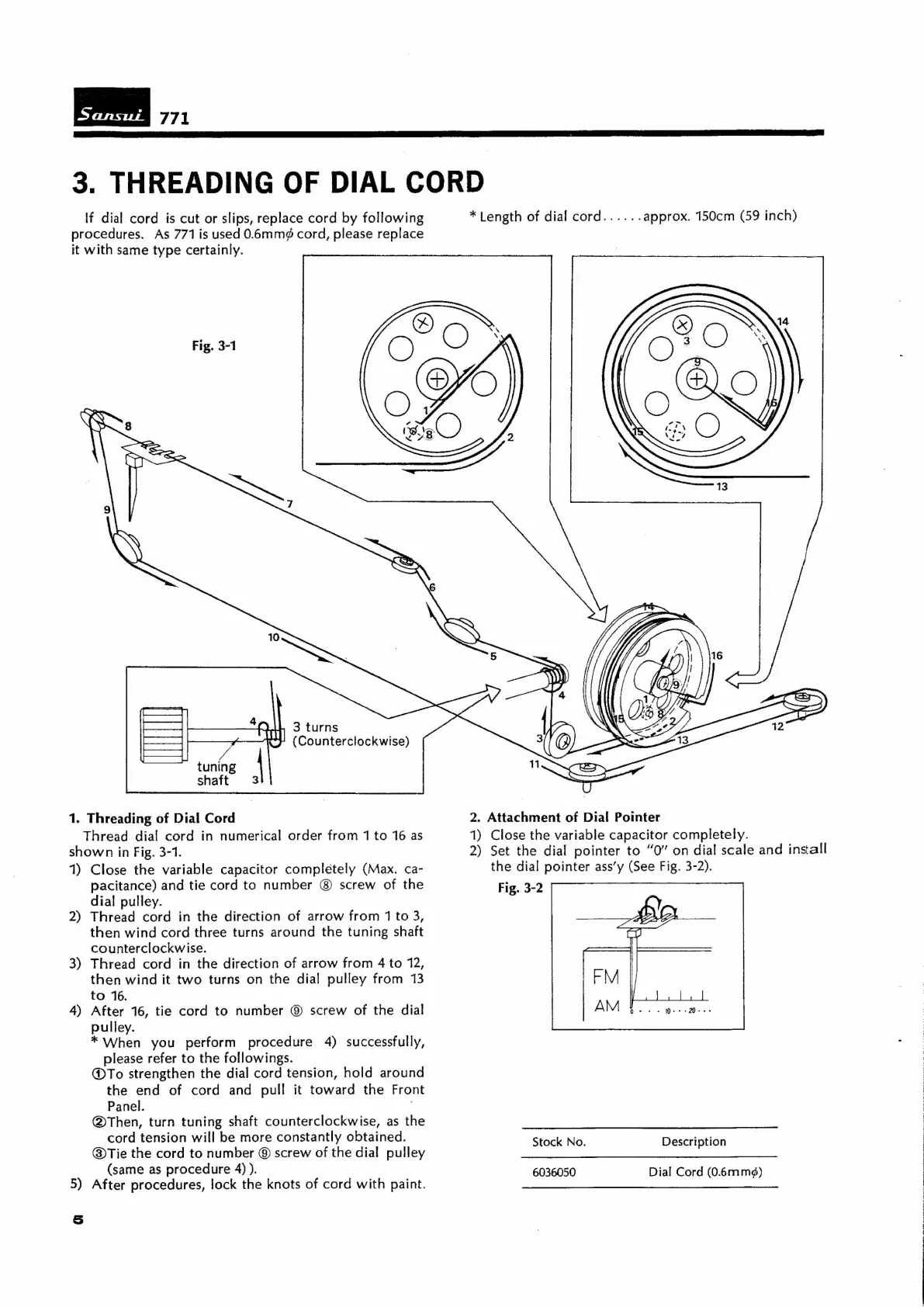

3.
THREADING
OF
DIAL
CORD
*
Length
of
dial
cord......
approx.
150cm
(59
inch)
If
dial
cord
is
cut
or
slips,
replace
cord
by
following
procedures.
As
771
is
used
0.6mm¢
cord,
please
replace
it
with
same
type
certainly.
3
turns
(Counterclockwise)
1.
Threading
of
Dial
Cord
Thread
dial
cord
in
numerical
order
from
1
to
16
as
shown
in
Fig.
3-1.
1)
Close
the
variable
capacitor
completely
(Max.
ca-
pacitance)
and
tie
cord
to
number
screw
of
the
dial
pulley.
2)
Thread
cord
in
the
direction
of
arrow
from
1
to
3,
3)
4)
5)
then
wind
cord
three
turns
around
the
tuning
shaft
counterclockwise.
Thread
cord
in
the
direction
of
arrow
from
4
to
12,
then
wind
it
two
turns
on
the
dial
pulley
from
13
to
16.
After
16,
tie
cord
to
number
@
screw
of
the
dial
pulley.
*
When
you
perform
procedure
4)
successfully,
please
refer
to
the
followings.
@To
strengthen
the
dial
cord
tension,
hold
around
the
end
of
cord
and
pull
it
toward
the
Front
Panel.
@Then,
turn
tuning
shaft
counterclockwise,
as
the
cord
tension
will
be
more
constantly
obtained.
@®Tie
the
cord
to
number
@
screw
of
the
dial
pulley
(same
as
procedure
4)
).
After
procedures,
lock
the
knots
of
cord
with
paint.
2.
Attachment
of
Dial
Pointer
1)
Close
the
variable
capacitor
completely.
2)
Set
the
dial
pointer
to
“0”
on
dial
scale
and
insall
the
dial
pointer
ass’y
(See
Fig.
3-2).
Fig.
3-2
Stock
No.
Description
6036050
Dial
Cord
(0.6mm¢)
