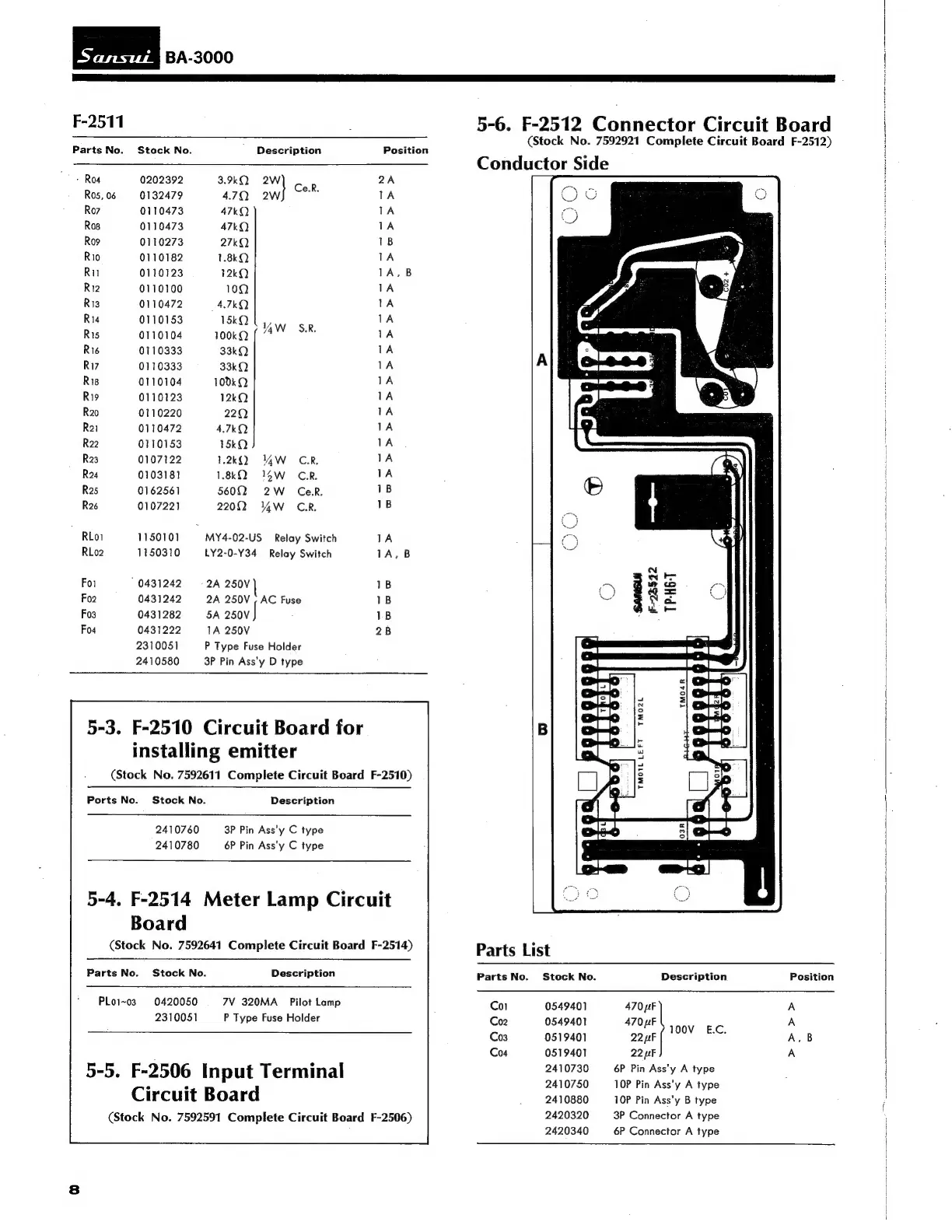

Sansui BA-3000 - F-2510 Circuit Board for installing emitter; F-2514 Meter Lamp Circuit Board; F-2506 Input Terminal Circuit Board; F-2512 Connector Circuit Board

AY,/7 iy/1m BA-3000
F-2511
5-6.
F-2512
Connector
Circuit
Board
(Stock No. 7592921 Complete Circuit Board F-2512)
Conductor Side
Parts No. Stock No. Description Position
- Ros 0202392 3.9kQ vi a 2A
Ros,06 0132479 47Q 2W a 1A
Roz 0110473 47kQ 1A
Ros 0110473 47kQ 1A
Rog 0110273 27kQ 1B
Rio 0110182 1.8kQ 1A
Ru 0110123 12kQ 1A, 8B
Riz 0110100 100 1A
R13 0110472 4.7kQ TA
Ria 0110153 1SkQL,, 1A
Ris 0110104 ~— 100K. | ASR 1A
Ris 0110333 33kQ 1A
Riz 0110333 33kQ 1A
Rig 0110104 100kQ 1A
Rig
0110123
12kQ
1A
R20 0110220 220 1A
Rai 0110472 4.7kQ 1A
R22 0110153 15kO 1A
R23 0107122 1.2kQ WW CR 1A
Roa 0103181 1.8kQ 146W CR 1A
Ras 0162561 560Q 2W Cer. 1B
R26 0107221 22000 YW CR 1B
RLo1 1150101 MY4-02-US Relay Switch 1A
RLo2 1150310 — LY2-0-Y34 Relay Switch 1A,B
Fol “0431242 = 2A 250V 1B
Fo2 0431242 2A 250V (AC Fuse 1B
Fos 0431282 5A 250V J 1B
Fos 0431222 1A 250V 2B
2310051 P Type Fuse Holder
2410580 3P Pin Ass'y D type
TMO2L
5-3. F-2510 Circuit Board for
installing emitter
. (Stock No. 7592611 Complete Circuit Board F-2510)
TMOIL LEFT
Ports No. Stock No. Description
2410760 3P Pin Ass'y C type
2410780 6P Pin Ass'y C type
5-4. F-2514 Meter Lamp Circuit
Board
(Stock No. 7592641 Complete Circuit Board F-2514) Parts List
Parts No. Stock No. Description Parts No. Stock No. Description Position
PLoi~o3 0420050 7V 320MA Pilot Lamp Col 0549401 470 pF A
2310051 P Type Fuse Holder Co2 0549401 470 LF A
Co3 0519401 22 uF OE Ce A,B
; Co4 0519401 22 uF A
5-5. F-2506 Input Terminal Stee, Wee itera nie
. . 2410750 10P Pin Ass'y A type
Circuit Board _ 2410880 —‘10P Pin Ass'y B type
(Stock No. 7592591 Complete Circuit Board F-2506) 2420320 — 3P Connector A type
2420340 6P Connector A type
