2-2.
Operation
of
Manual
Mechanism
1.
Manual
Operation
1)
Operate
the
turntable
by
setting
the
cuing
lever
to
2-3.
Manual
Movement
(See
Fig.
2-2)
1)
The
plate
spring
(6)
connected
with
the
see-saw
_..plate
which
is
so
far
pushed
down
by
the
lifter
cam
the
START/CUT
position.
2)
Set
the
Manual
lifter
lever
to
the
UP
position,
and
moreover
set
the
tonearm
to
a
suitable
position.
3)
Then
set
the
Manual
lifter
lever
to
the
DOWN
posi-
tion.
The
machine
begins
performance
when
the
stylus
reaches
on
the
surface
of
disk.
4)
The
tonearm
returns
automatically
by
the
function
of
the
reed
switch
when
the
stylus
proceeds
as
far
the
finishing
groove
after
the
end
of
performance.
Therefore,
the
MANUAL
operation
is
made
from
the
lead-in
groove
to
the
lead-out
groove.
If
you
want
to
stop
in
the
middle
of
performance,
set
the
Manual
lifter
lever
to
the
UP
position,
and
the
stylus
will
lift
up
from
the
surface
of
disk.
_
(2)
will
move
up
when
the
tonearm
is
put
on
suita-
2)
3)
ble
position
of
disk
and
also
the
Manual
lifter
lever
is
set
to
the
DOWN
position.
When
the
plate
spring
(6)
with
the
see-saw
plate
moves
up,
the
plate
spring
(5)
will
move
down
because
the
whole
plate
spring
has
a
function
of
see-saw
mechanism.
Accordingly,
performance
will
be
automatically
made
as
the
tonearm
(stylus)
con-
nected
with
the
plate
spring
(5)
will
come
down
to
the
disk.
If
the
Manual
lifter
lever
is
set
to
the
UP
position,
no
matter
where
the
tonearm
is
on,
the
stylus
will
lift
up
from
the
surface
of
the
disk.
4)
When
performing
Manual
operation
on
any
surface
of
disk,
and
afterwards
setting
to
Auto-IN
position,
the
Auto
operation
including
Auto-IN
and
Auto-
RETURN
is
not
operative
because
the
return
lever
(1)
connected
at
the
end
of
tonearm
is
not
turned
reversely
by
the
size
set
plate
ass’y.
Auto
operation
will
be
normally
made,
as
the
return
lever
(1)
will
be
turned
reversely
by
moving
the
tonearm
to
the
position
on
lead-out
groove
of
disk
or
placing
it
on
the
arm
rest.
-

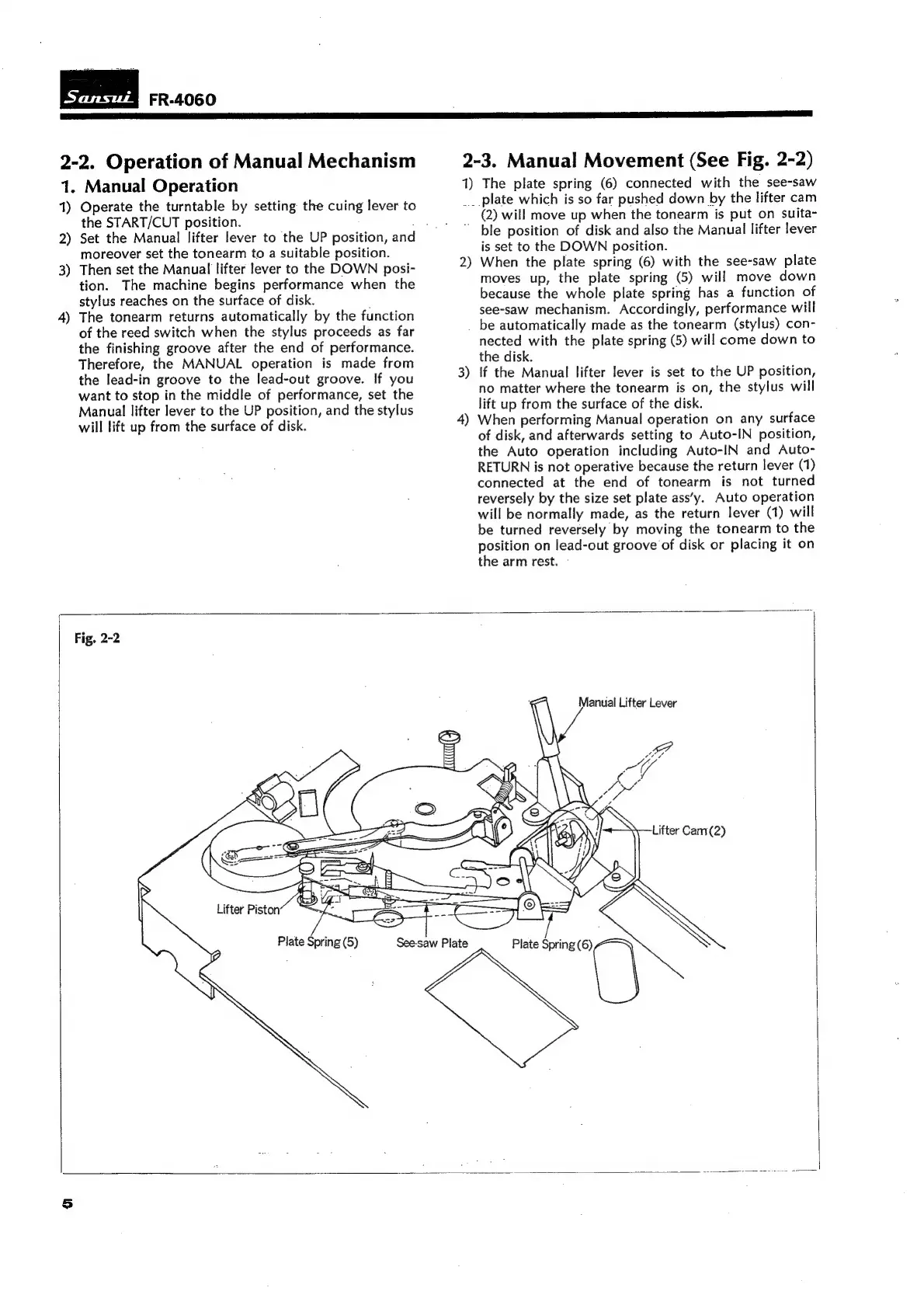

Fig,
2-2
