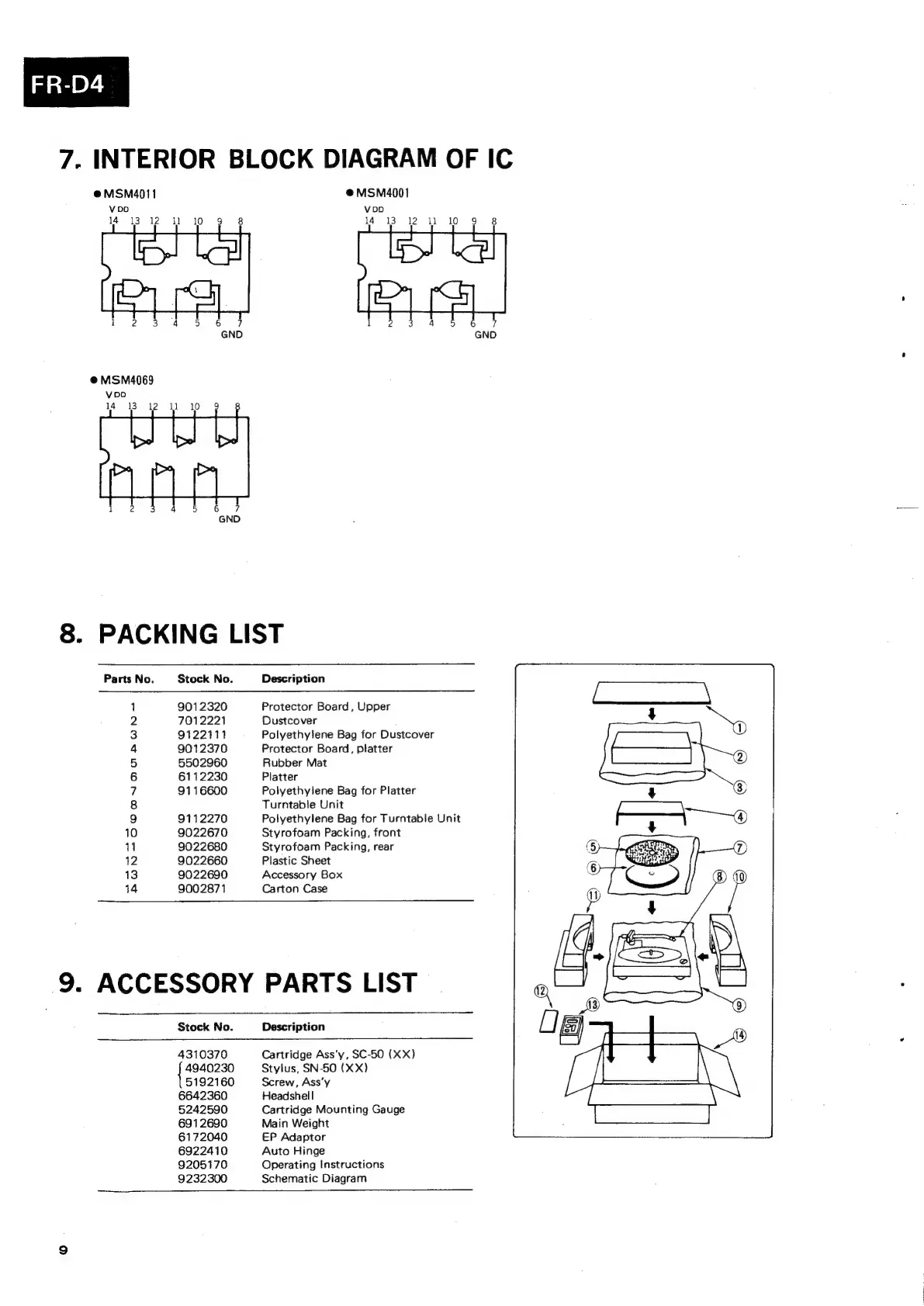

7. INTERIOR BLOCK DIAGRAM OF IC
@MSM4011 @MSM4001
Vbo vob
14 13 12 ll 10 9 8 14°13 #12 UW 10 9 8
GND GND
@MSM4069
vVoo
144 «#13 «12
8. PACKING LIST
Parts No. Stock No. Description
1 9012320 Protector Board, Upper
2 7012221 Dustcover
3 9122111 Polyethylene Bag for Dustcover
4 9012370 Protector Board, platter
5 5502960 Rubber Mat
6 6112230 Platter
x 9116600 Polyethylene Bag for Platter
8 Turntable Unit
9 9112270 Polyethylene Bag for Turntable Unit
10 9022670 Styrofoam Packing, front
bie 9022680 Styrofoam Packing, rear
12 9022660 Plastic Sheet
13 9022690 Accessory Box
14 9002871 Carton Case
9. ACCESSORY PARTS LIST
Stock No. Description
4310370 Cartridge Ass’y, SC-50 (XX)
Peper Stylus, SN-50 (XX)
5192160 Screw, Ass’y
6642360 Headshell
5242590 Cartridge Mounting Gauge
6912690 Main Weight
6172040 EP Adaptor
6922410 Auto Hinge
9205170 Operating Instructions
9232300 Schematic Diagram
