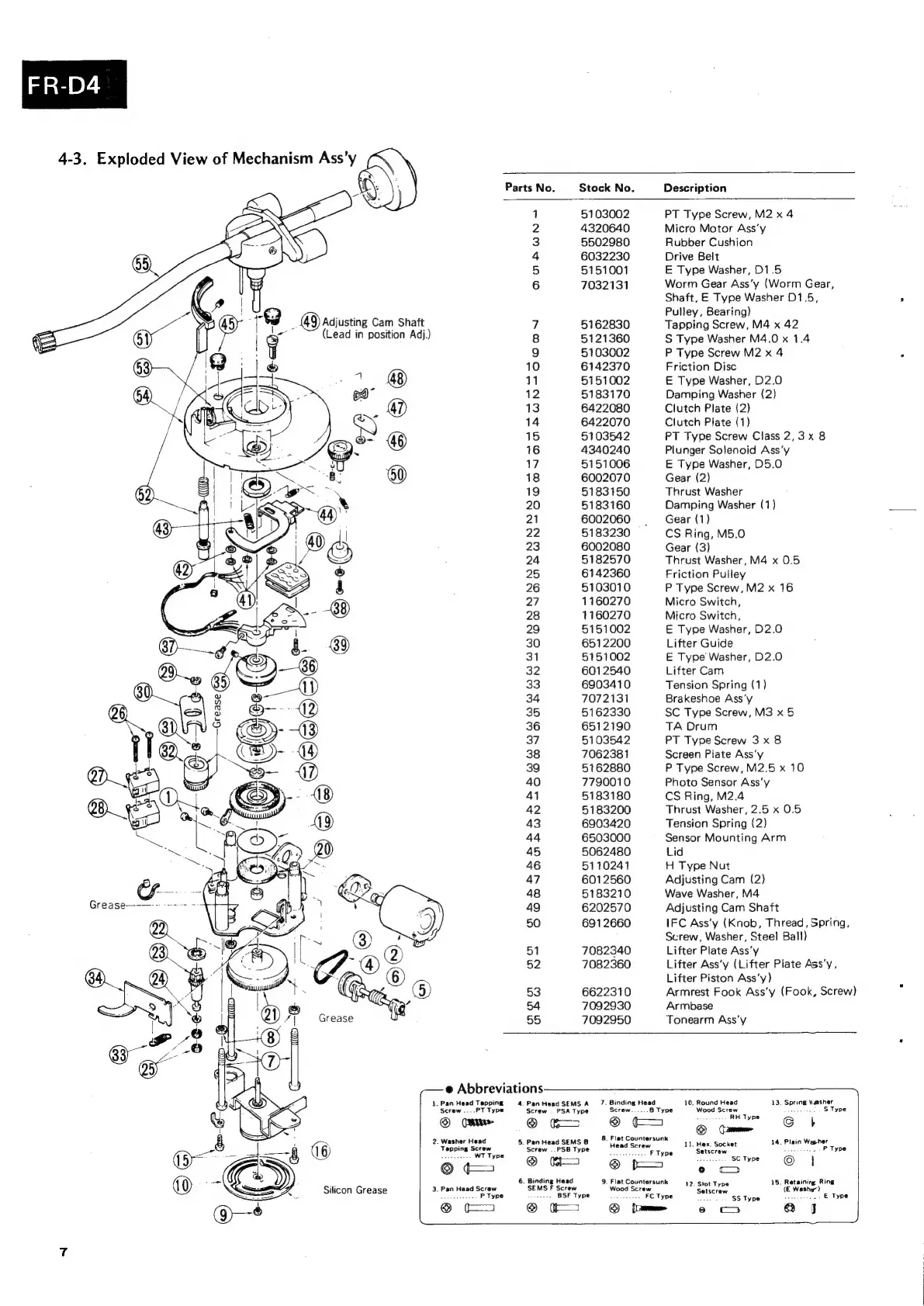

4-3. Exploded View of Mechanism Ass’y
3 Parts No. Stock No. Description
1 5103002 PT Type Screw, M2 x 4
2 4320640 Micro Motor Ass’y
3 5502980 Rubber Cushion
4 6032230 Drive Belt
5 5151001 E Type Washer, D1.5
6 7032131 Worm Gear Ass’y (Worm Gear,
Shaft, E Type Washer D1.5,
rae Pulley, Bearing)
Adjusting Cam Shaft 7 5162830 Tapping Screw, M4 x 42
(Lead in position Adj.) 8 5121360 S Type Washer M4.0 x 1.4
q ’ 9 5103002 P Type Screw M2 x 4
10 6142370 Friction Disc
11 5151002 E Type Washer, D2.0
12 5183170 Damping Washer (2)
13 6422080 Clutch Plate (2)
14 6422070 Clutch Plate (1)
15 5103542 PT Type Screw Class 2,3 x 8
16 4340240 Plunger Solenoid Ass’y
17 5151006 E Type Washer, D5.0
18 6002070 Gear (2)
19 5183150 Thrust Washer
20 5183160 Damping Washer (1)
21 6002060 —— Gear (1)
22 5183230 CS Ring, M5.0
23 6002080 Gear (3)
24 5182570 Thrust Washer, M4 x 0.5
25 6142360 Friction Pulley
26 5103010 P Type Screw, M2 x 16
27 1160270 Micro Switch,
28 1160270 Micro Switch,
29 5151002 E Type Washer, D2.0
30 6512200 Lifter Guide
31 5151002 E Type Washer, D2.0
32 6012540 Lifter Cam
33 6903410 Tension Spring (1)
34 7072131 Brakeshoe Ass’y
35 5162330 SC Type Screw, M3 x 5
36 6512190 TA Drum
37 5103542 PT Type Screw 3x 8
38 7062381 Screen Piate Ass‘y
39 5162880 P Type Screw, M2.5 x 10
40 7790010 Photo Sensor Ass’y
41 5183180 CS Ring, M2.4
42 5183200 Thrust Washer, 2.5 x 0.5
43 6903420 Tension Spring (2)
44 6503000 Sensor Mounting Arm
45 5062480 Lid
46 5110241 H Type Nut
47 6012560 Adjusting Cam (2)
48 5183210 Wave Washer, M4
49 6202570 Adjusting Cam Shaft
50 6912660 IFC Ass’y (Knob, Thread, Spring,
Screw, Washer, Steel Ball)
51 7082340 Lifter Plate Ass’y
52 7082360 Lifter Ass’y (Lifter Plate Ass’y,
Lifter Piston Ass‘y)
53 6622310 Armrest Fook Ass‘y (Fook, Screw)
54 7092930 Armbase
55 7092950 Tonearm Ass‘y
