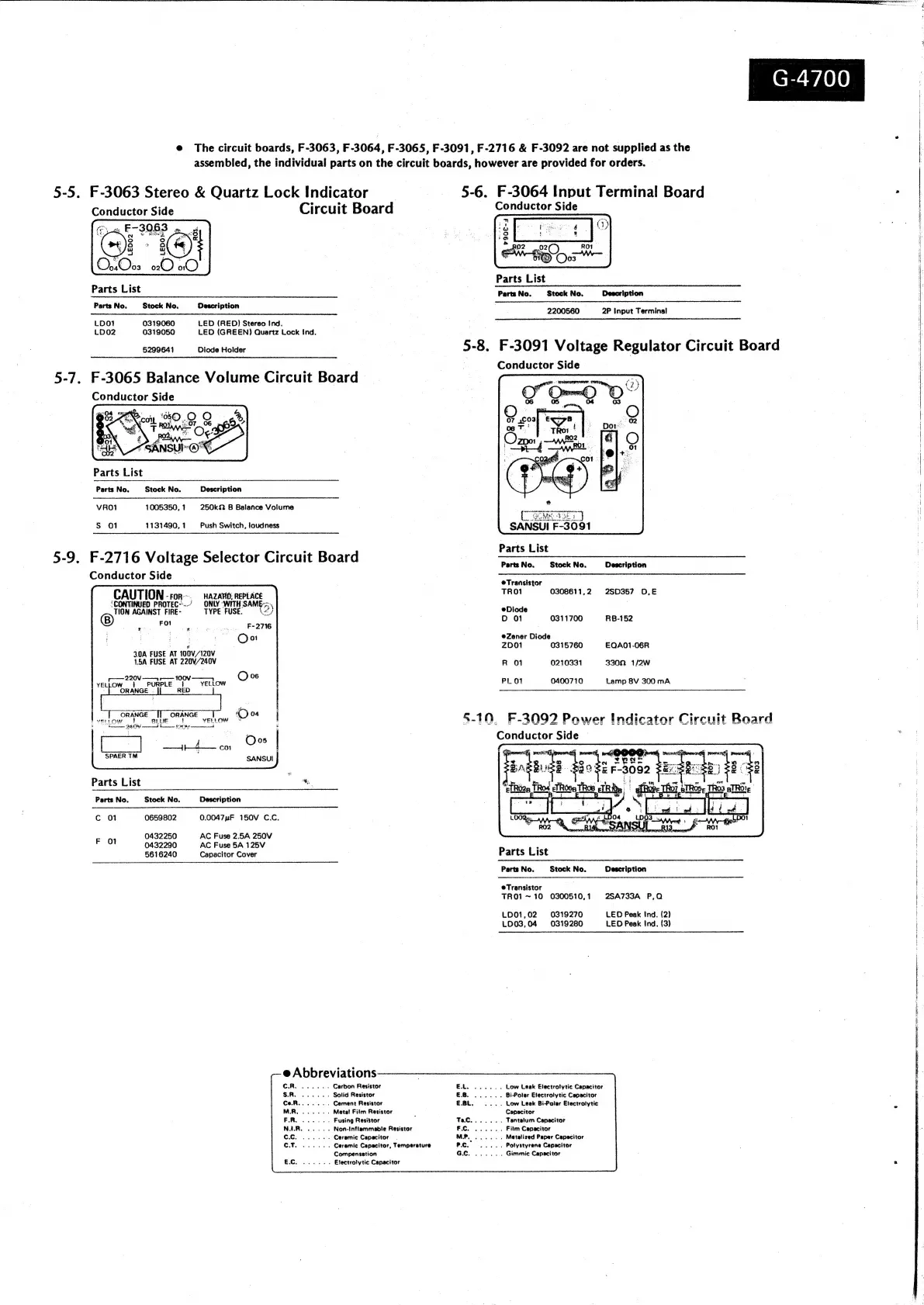

@ The circuit boards, F-3063, F-3064, F-3065, F-3091, F-2716 & F-3092 are not supplied as the
assembled, the individual parts on the circuit boards, however are provided for orders.
5-5. F-3063 Stereo & Quartz Lock Indicator
Conductor Side
Parts List
Parts No. Stock No. Description
LDo1 0319080 LED (RED) Stereo Ind.
LDO2 0319050 LED (GREEN) Quartz Lock Ind.
5299641 Diode Holder
5-7. F-3065 Balance Volume Circuit Board
Conductor Side
Parts List
Parts No. Stock No. Description
VRO1 1005350, 1 250k B Balance Volume
S$ 01 1131490, 1 Push Switch, loudness
5-9. F-2716 Voltage Selector Circuit Board
Conductor Side .
CAUTION -ron~. HazZAHO; REPLACE
“CONTINUED PROTEC: ONLY: tse rs 5
TION AGAINST FIRE- TYPE FUS
ct
COW hs 25.5 ich PETS
~ Oa
: ‘ ;
3.0A FUSE AT 100V/120V
1.5A FUSE AT 220V/240V
oowWw——
t YELLOW
RED
ANGE | ( |
Pverrow | BLUE ! YELLOW ®
ho rena H mmenentl Hereomnnmare $704 A sane i
eee oe co
SPAER TM
Parts List -_
Parts No. Stock No. Description
Cc 01 0659802 0.0047uF 150V C.C.
0432250 AC Fuse 2.5A 250V
0432290 AC Fuse 5A 125V
5616240 Capacitor Cover
F 01
Circuit Board
e@ Abbreviations
CAR. ...... Carbon Resistor
S.R. ...... Solid Resistor
CeR... 0... Cement Resistor
MLR. ...... Metat Film Resistor
F.R. 2... . Fusing Resistor
NLR. 2... . Non-Inflammabdie Resistor
C.C. ...... Ceramic Capacitor.
C.T. ...... Ceramic Capacitor, Temperature
Compensation
. Etectrolytic Capacitor
5-6. F-3064 Input Terminal Board
Conductor Side
Parts List
Parts No. Stock No. Description
2200560 2P Input Terminal
5-8. F-3091 Voltage Regulator Circuit Board
Conductor Side
ae
SANSUI F-3091
Parts List
Parts No. Stock No. Description
@Transistor
TRO1 0308611,2 2S0357 O,E
eDiode
D O1 0311700 RB-152
e@Zener Diode
Z0D0o1 0315760 EQA01-06R
R 01 0210331 3302 1/2
PL 01 0400710 Lamp 8V 300 mA
§-10. F-3092 Power Indicator Circuit Board
Conductor Side
bai “Hed O88 F- “$082 Es Bec B?
erie yi
Parts List
Parts No. Stock No. Description
e@Transistor
TRO1~10 0300510, 1 2SA733A P,Q
L001,02 0319270 LED Peak Ind. (2)
L003,04 0319280 LED Peak Ind. (3)
Eu. ...... Low Leak Electrolytic Capacitor
ES. ...... BiPoter Electrotytic Capacitor
EBL. .... Low Leak Bi-Polar Etectrolytic
Capacitor
TaG.. 2... Tantalum Capacitor
FC. ....... Film Capacitor
MP. roe ae Metalized Paper Capacitor
PE. foes Potystyrene Capacitor
Gc. ...... Gimmic Capacitor
