Sansui G-9700 - Specifications; Audio Section Specifications

44

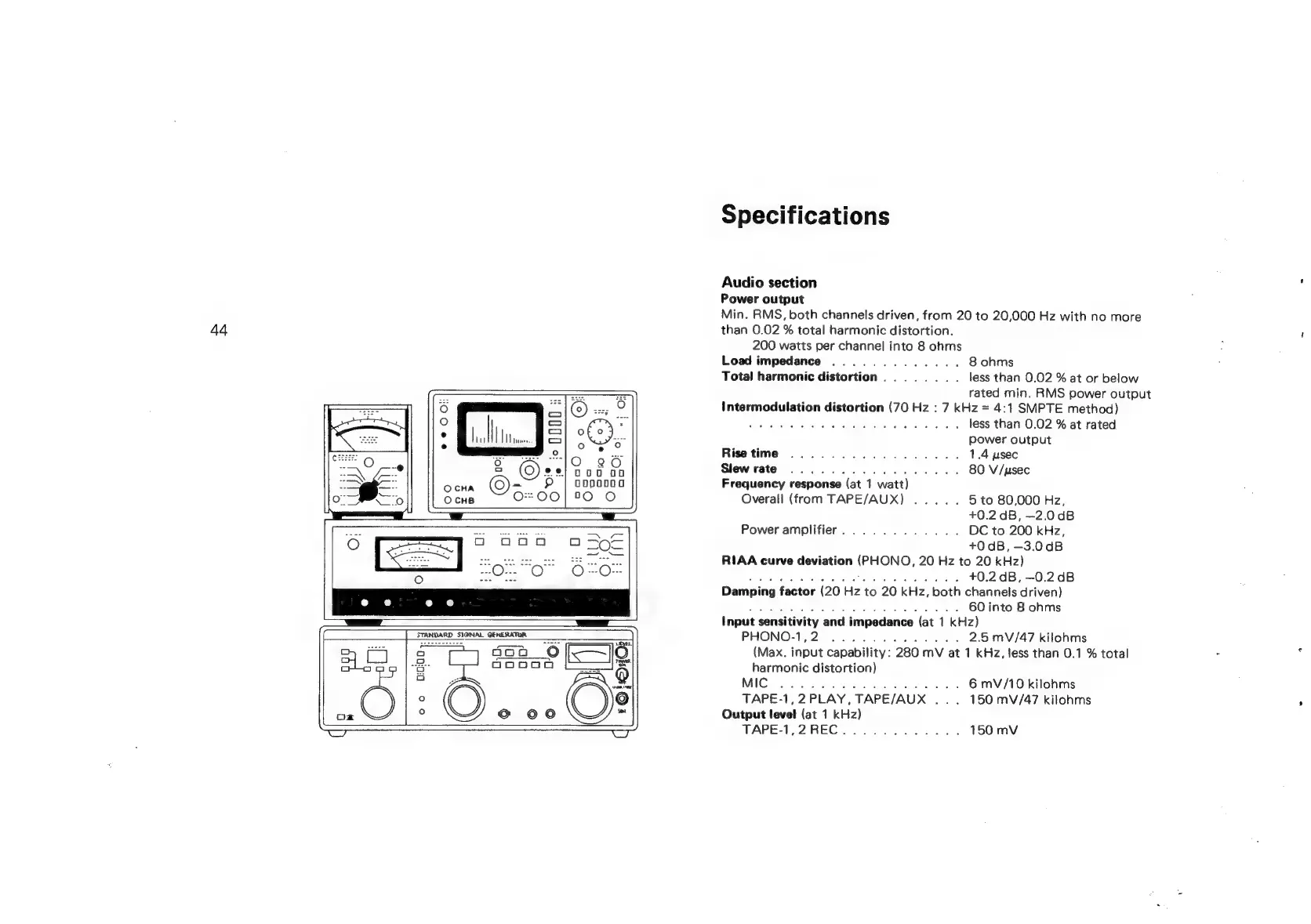

Specifications
Audio section
Power output
Min. RMS, both channels driven, from 20 to 20,000 Hz with no more
than 0.02 % total harmonic distortion.
200 watts per channel into 8 ohms
Load impedance ............. 8 ohms
Total harmonic distortion. ....... less than 0.02 % at or below
rated min. RMS power output
intermodulation
distortion
(70
Hz
:
7
kHz
=
4:1
SMPTE
method)
baie tea: ed, a en alarlee cee ocd tess less than 0.02 % at rated
Power output
Risetime .............,... 1.4 usec
Slewrate ...........,...... 80 V/ysec
Frequency response (at 1 watt)
Overall (from TAPE/AUX) ..... 5 to 80,000 Hz,
+0.2 dB, —2.0dB
Poweramplifie............ DC to 200 kHz,
+0 dB, —3.0dB
RIAA curve deviation PHONS, 20 Hz to 20 kHz)
AS iderde at? Hadi as ated thls, tp" oxen eevee +0.2 dB, —0.2 dB
Damping factor (20 Hz to 20 kHz, both channels driven)
a Antpse deeds Econ Ta eee 60 into 8 ohms
Input sensitivity and impedance (at 1 kHz)
PHONO-1,2 ............. 2.5 mV/47 kilohms
(Max. input capability: 280 mV at 1 kHz, less than 0.1 % total
harmonic distortion)
MICS ct hn ea we Fe ed 6 mV/10 kilohms
TAPE-1,2 PLAY, TAPE/AUX ... 150 mV/47 kilohms
Output level (at 1 kHz)
TAPE-1,2REC............ 150 mV
