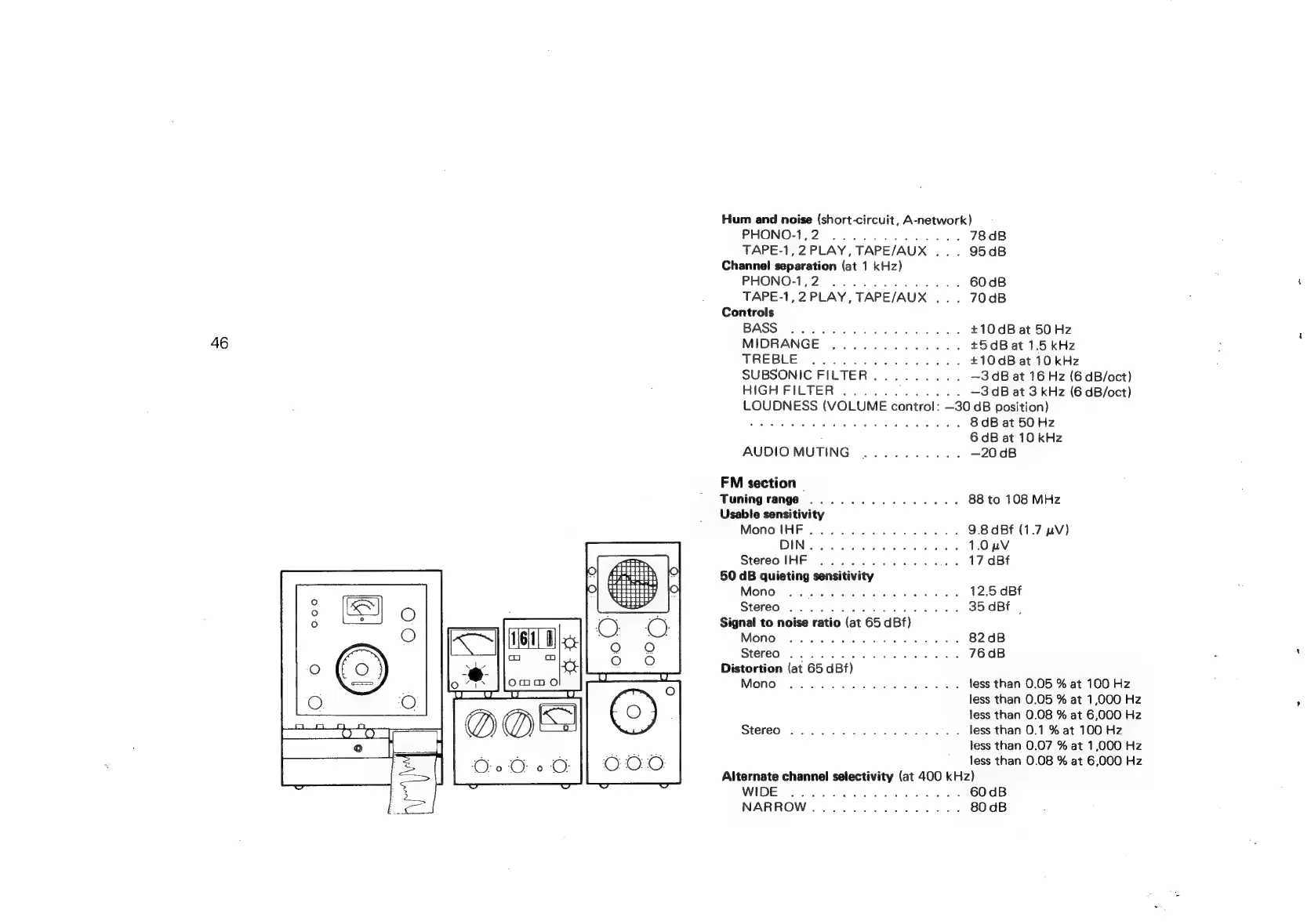

Sansui G-9700 - Page 46

46
Hum and noise (short-circuit, A-network)
PHONO-1,2 ............. 78dB
TAPE-1,2 PLAY, TAPE/AUX ... 95dB
Channel separation (at 1 kHz)
PHONO-1,2 ............. 60 dB
TAPE-1,2 PLAY, TAPE/AUX ... 70dB
Controls
BASS 8:5-4o6¢es ih neg ae Ge +10 dB at 50 Hz
MIDRANGE ............. +5dBat 1.5 kHz
TREBEE™ :.. coche sce aks +10dB at 10 kHz
SUBSONIC FILTER... 2.2... —3 dB at 16 Hz (6 dB/oct)
HIGH FILTER ............ —3 dB at 3 kHz (6 dB/oct)
LOUDNESS (VOLUME control: —30 dB position)
a PRG PR She elas eh ed Sa cece ay a 8 dB at 50 Hz
6 dB at 10 kHz
AUDIO MUTING .......... —20 dB
FM section
Tuningrange ............... 88 to 108 MHz
Usable sensitivity
Mono lHF..............-. 9.8 dBf (1.7 wV)
DIN ie at iOS ee OES 1.0 pV
Stereo WAP: esos wks whi Sebi 17 dBf
50 dB quieting sensitivity
MONO 3 eee ek ee ew 12.5 dBf
SteveO? .. 5 sawn ncan eda wane Me ae oe 35 dBf
Signal to noise ratio (at 65 dBf)
MONG) oe ase cet seo ae aed 82dB
St@rOO: ii eee ew oS ee wlan e 76 dB
Distortion (at 65 dBf)
MONO: wo nner ae oe ese aed less than 0.05 % at 100 Hz
less than 0.05 % at 1,000 Hz
less than 0.08 % at 6,000 Hz
STCleO. 0 bho be bk BAP Od less than 0.1 % at 100 Hz
less than 0.07 % at 1,000 Hz
less than 0.08 % at 6,000 Hz
Alternate channel selectivity (at 400 kHz)
WIDE: corti: Shiner deat ate ae 60 dB
