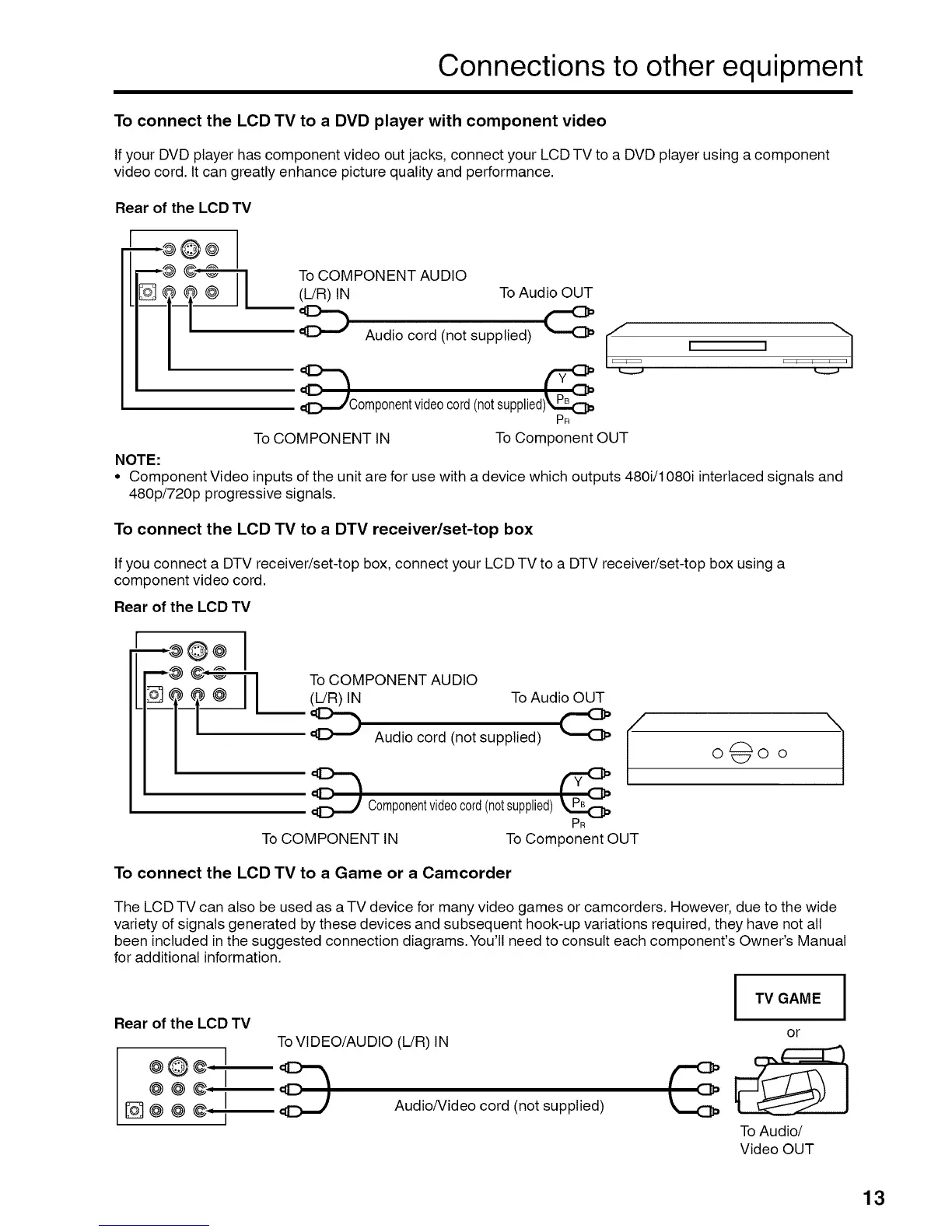

Connections to other equipment
To connect the LCD TV to a DVD player with component video
If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component
video cord. It can greatly enhance picture quality and performance.
Rear of the LCD TV
To COMPONENT AUDIO
(L/R) IN To Audio OUT
_ Audiocord(notsupplied) _ ¢_=_
aid _
omponent videocord (notsupplied
PR
To COMPONENT IN To Component OUT
NOTE:
• Component Video inputs of the unit are for use with a device which outputs 480i/1080i interlaced signals and
480p/720p progressive signals.
To connect the LCD TV to a DTV receiver/set-top box
If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a
component video cord.
Rear of the LCD TV
To COMPONENT AUDIO
(L!R) IN To Audio OUT
_) Audio cord (not supplied) (_ _
_) C0mp0nentvide0c0rd(n0tsupplied)PB_
PR
To COMPONENT IN To Component OUT
o0o o
To connect the LCD TV to a Game or a Camcorder
The LCD TV can also be used as a TV device for many video games or camcorders. However, due to the wide
variety of signals generated by these devices and subsequent hook-up variations required, they have not all
been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual
for additional information.
Rear of the LCD TV
@@¢,1
I
@@@'1
@@@@,j
To VIDEO/AUDIO (L!R) IN
AudioNideo cord (not supplied)
I V GAME I
or
To Audio/
Video OUT
13
