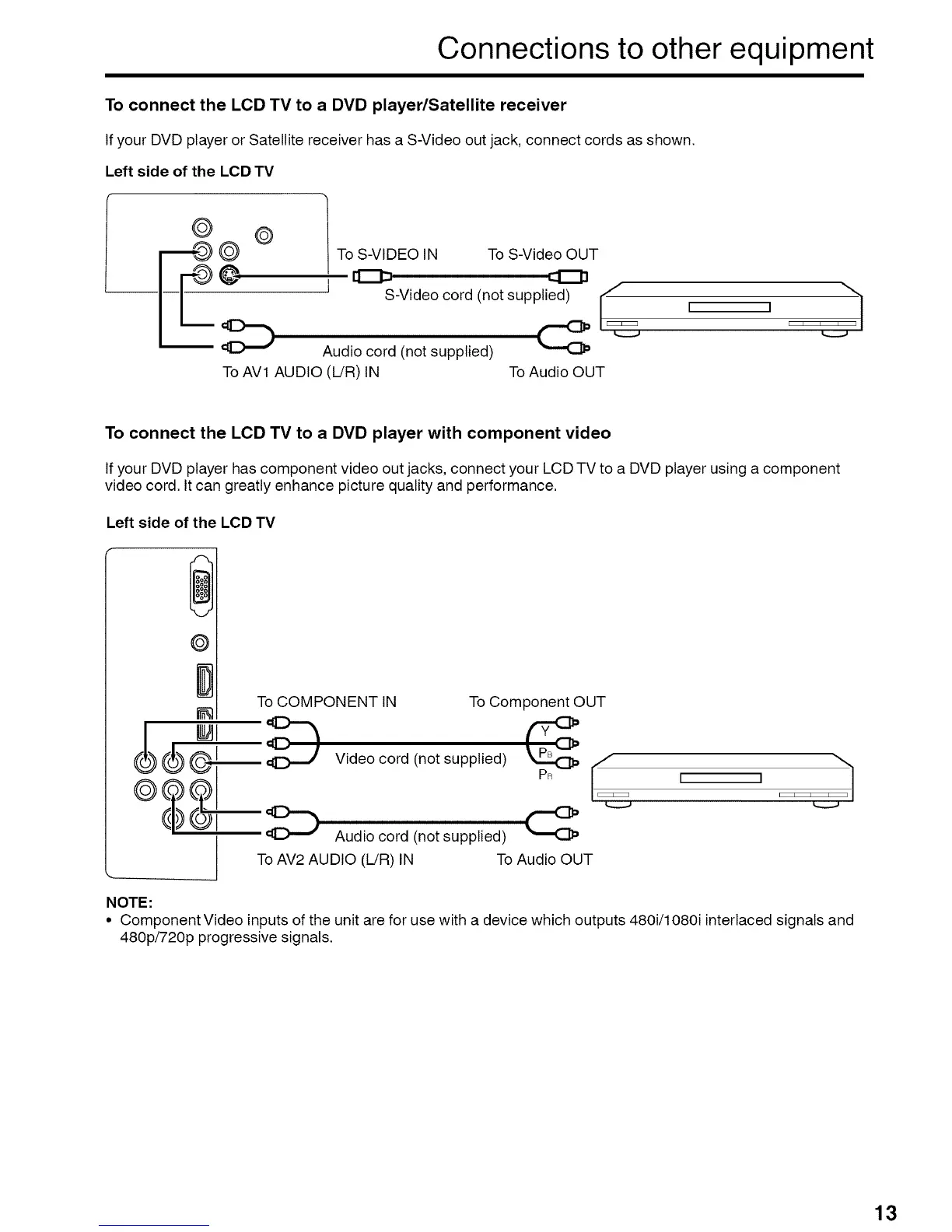

Connections to other equipment
To connect the LCD TV to a DVD player/Satellite receiver
If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.
Left side of the LOD TV
To AV1 AUDIO (L/R) IN
To S-VIDEO IN To S-Video OUT
S-Video cord (not supplied) J
Audio cord (not supplied)
To Audio OUT
I I
To connect the LCD TV to a DVD player with component video
If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component
video cord. It can greatly enhance picture quality and performance.
Left side of the LCD TV
©
To COMPONENT IN
o! °'
Audio cord (not supplied)
I To AV2 AUDIO (L!R) IN
NOTE:
Video cord (not supplied)
To Component OUT
R
To Audio OUT
"h
i i i i i/
Component Video inputs of the unit are for use with a device which outputs 480i/1080i interlaced signals and
480p/720p progressive signals.
13
