Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to the LCD TV is
dependent on the model and features of each component. Check the Owner's Manual provided with each
component for the location of video and audio inputs and outputs.
The connection diagrams below are offered as suggestions. You may need to modify them to accommodate
your particular assortment of components. The diagrams are intended to show component video and audio
interconnections only.

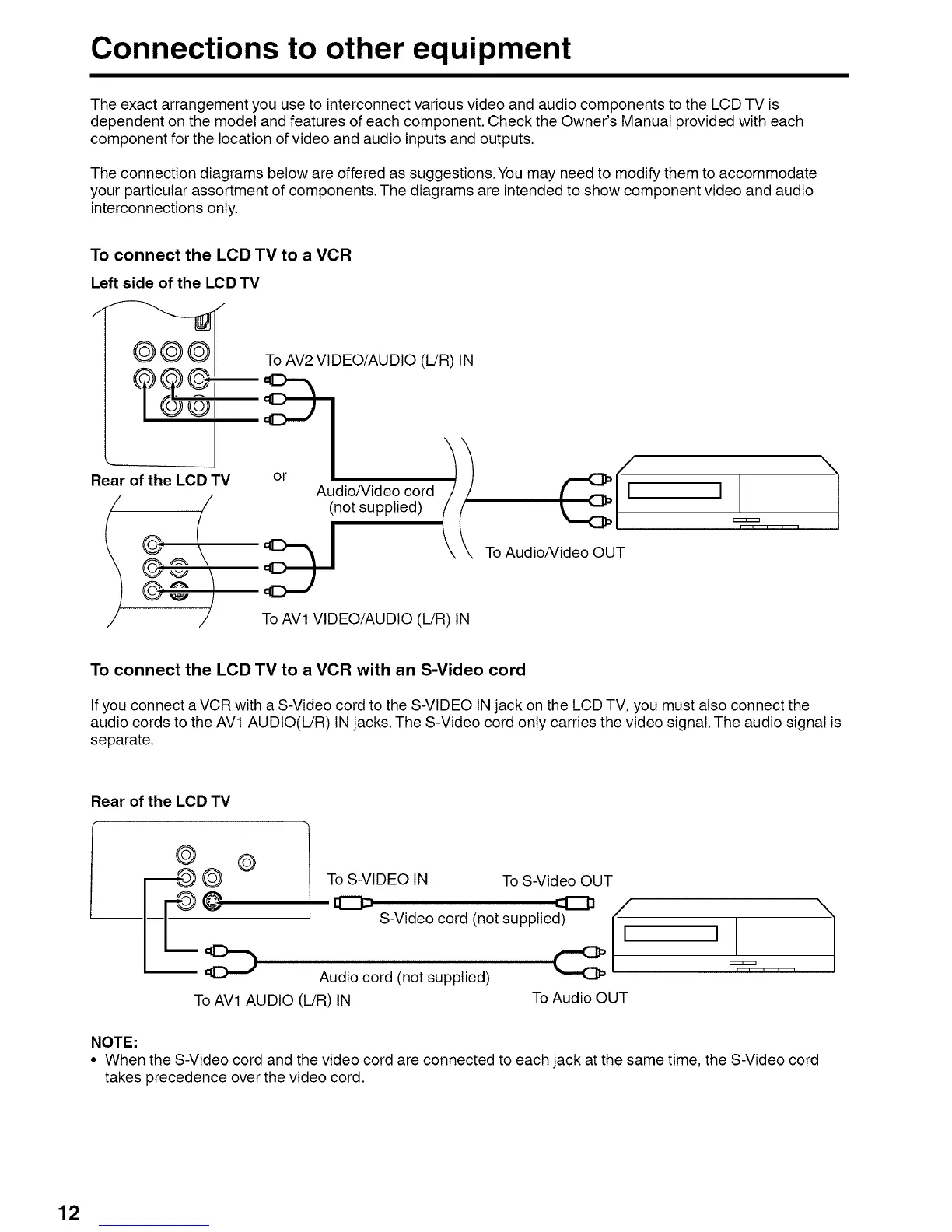

To connect the LCD TV to a VCR
Left side of the LCD TV
99@
Rear of the LCD TV _ [z_
l G' I To Audio/Video OUT
To AVl VIDEO/AUDIO (L/R) IN
To AV2 VIDEO/AUDIO (L!R) IN
(not supplied)
To connect the LCD TV to a VCR with an S-Video cord
If you connect a VCR with a S-Video cord to the S-VIDEO IN jack on the LCD TV, you must also connect the
audio cords to the AV1 AUDIO(L!R) IN jacks. The S-Video cord only carries the video signal. The audio signal is
separate.
Rear of the LCD TV
To AV1 AUDIO (L!R) IN
To S-VIDEO IN To S-Video OUT
I EEZ]n _ I_,S-Video cord (not supplied)
t'
Audio cord (not supplied) (_
To Audio OUT
NOTE:
• When the S-Video cord and the video cord are connected to each jack at the same time, the S-Video cord
takes precedence over the video cord.
