9 EN

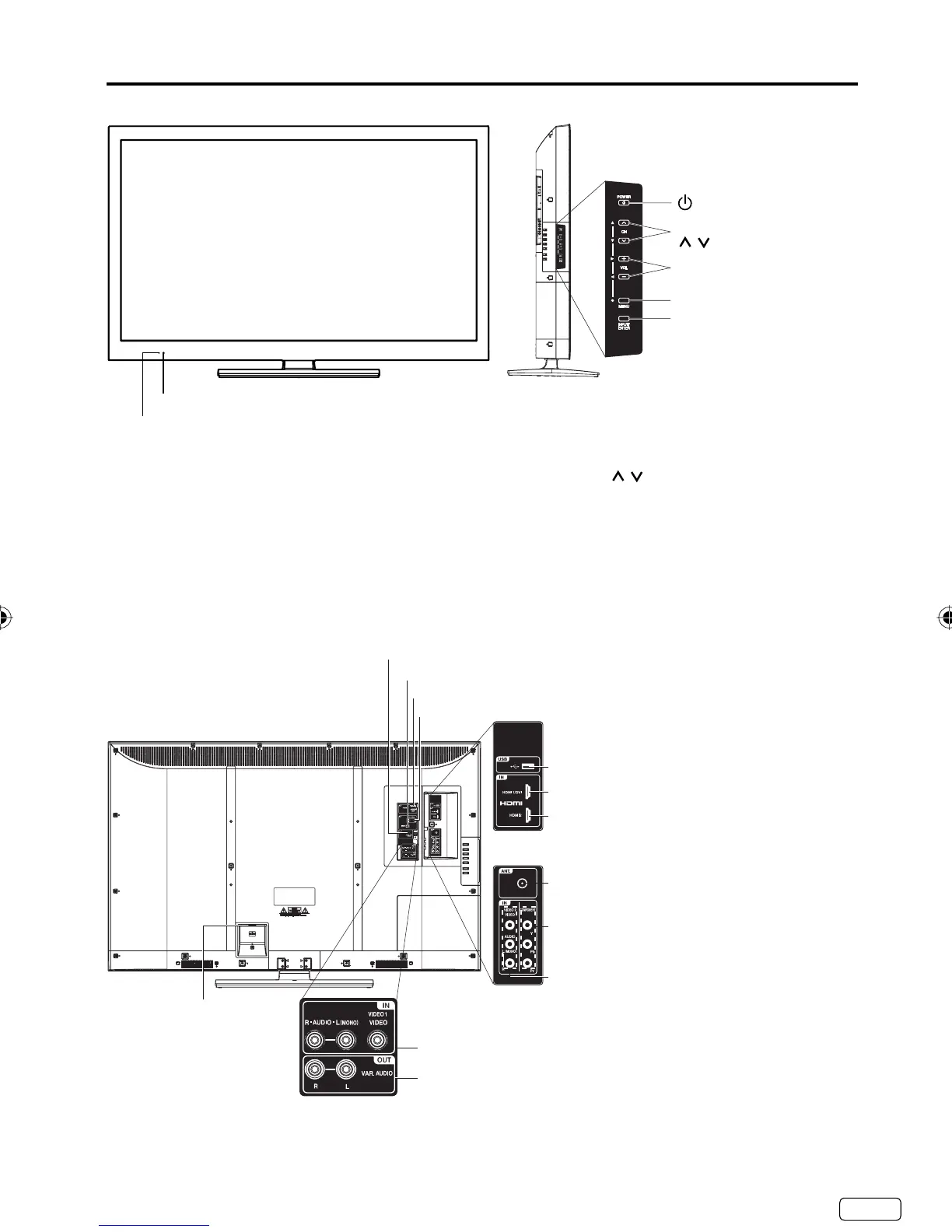

Parts and functions
Left sideFront
Remote sensor
POWER button
INPUT/ENTER button
VOL (VOLUME) +/– buttons
CH (CHANNEL)
/ buttons
MENU button
Rear
To display the menu screen.
Press MENU button to display the menu screen.
CH (CHANNEL)
/ buttons,
VOL (VOLUME)
+/–
buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
PC/DVI AUDIO IN jack
VIDEO1 IN jacks (VIDEO/AUDIO (R/L(MONO)))
COMPONENT IN jacks
HDMI2 IN jack
PC MONITOR IN jack
AC INPUT jack
ANT. (RF) IN jack
Power Indicator
Red : Standby
Green : On
HDMI1/DVI IN jack
DIGITAL AUDIO
COAXIAL OUT jack
VIDEO2 IN jacks
(VIDEO/AUDIO (L(MONO)/R))
VAR.(VARIABLE) AUDIO (R/L) OUT jacks
HDMI3 IN jack
USB input
