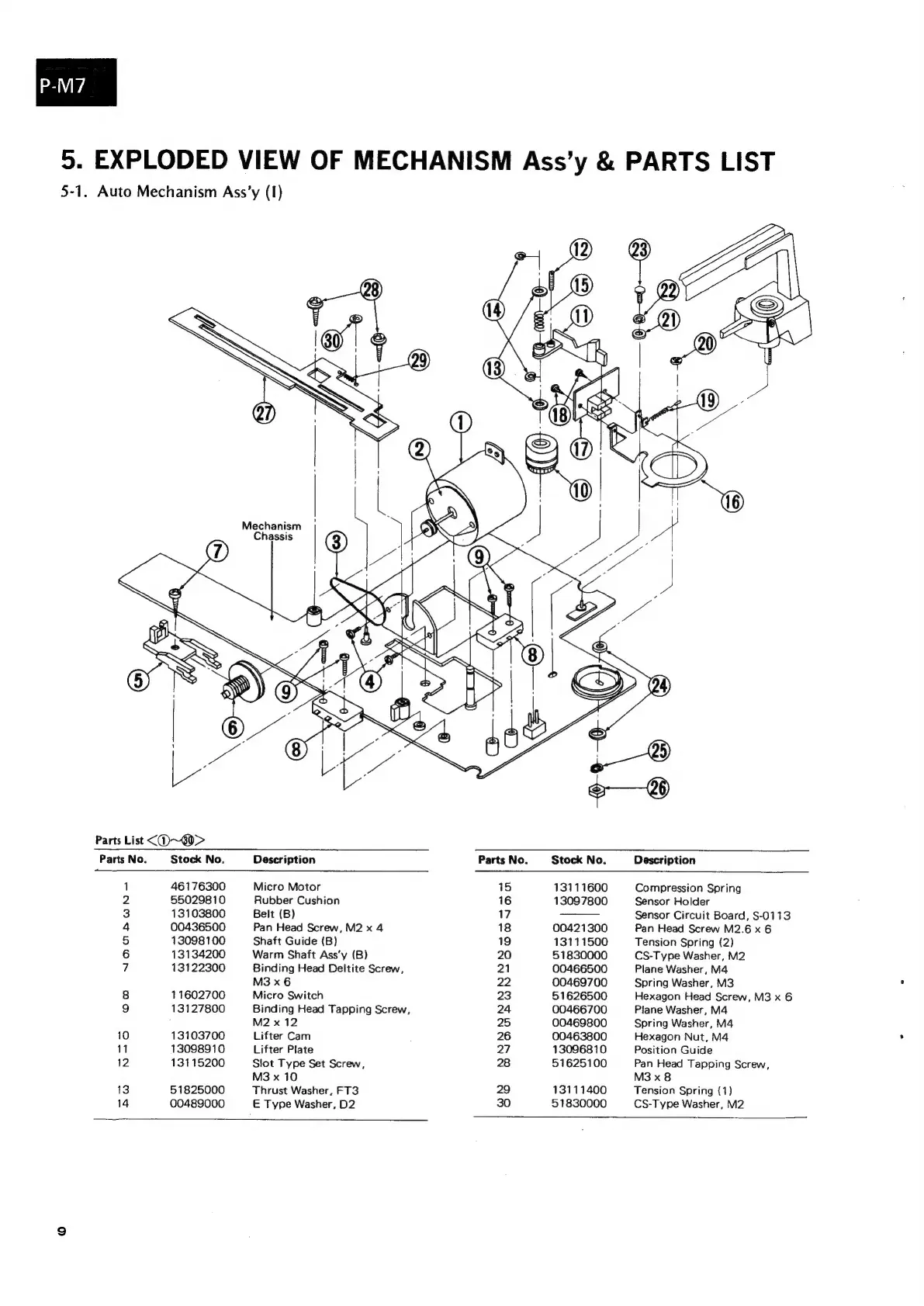

5. EXPLODED VIEW OF MECHANISM Ass’y & PARTS LIST
5-1. Auto Mechanism Ass’y (I)
Mechanism
Chassis
Parts List <®~@0>
Parts No. Stock No. Description
1 46176300 Micro Motor
2 55029810 Rubber Cushion
3 13103800 Beit (B)
4 00436500 Pan Head Screw, M2 x 4
5 13098100 Shaft Guide (B)
6 13134200 Warm Shaft Ass‘y (B)
7 13122300 Binding Head Deltite Screw,
M3 x 6
8 11602700 Micro Switch
9 13127800 Binding Head Tapping Screw,
M2 x 12
10 13103700 Lifter Cam
1 13098910 Lifter Plate
12 13115200 Slot Type Set Screw,
M3 x 10
13 51825000 Thrust Washer, FT3
14 00489000 E Type Washer, D2
Parts No Stock No. Description
15 13111600 Compression Spring
16 13097800 Sensor Holder
17 Sensor Circuit Board, S-0113
18 00421300 Pan Head Screw M2.6 x 6
19 13111500 Tension Spring (2)
20 51830000 CS-Type Washer, M2
21 00466500 Plane Washer, M4
22 00469700 Spring Washer, M3
23 51626500 Hexagon Head Screw, M3 x 6
24 00466700 Plane Washer, M4
25 00469800 Spring Washer, M4
26 00463800 Hexagon Nut, M4
27 13096810 Position Guide
28 51625100 Pan Head Tapping Screw,
M3 x8
29 13111400 Tension Spring (1)
30 51830000 CS-Type Washer, M2
