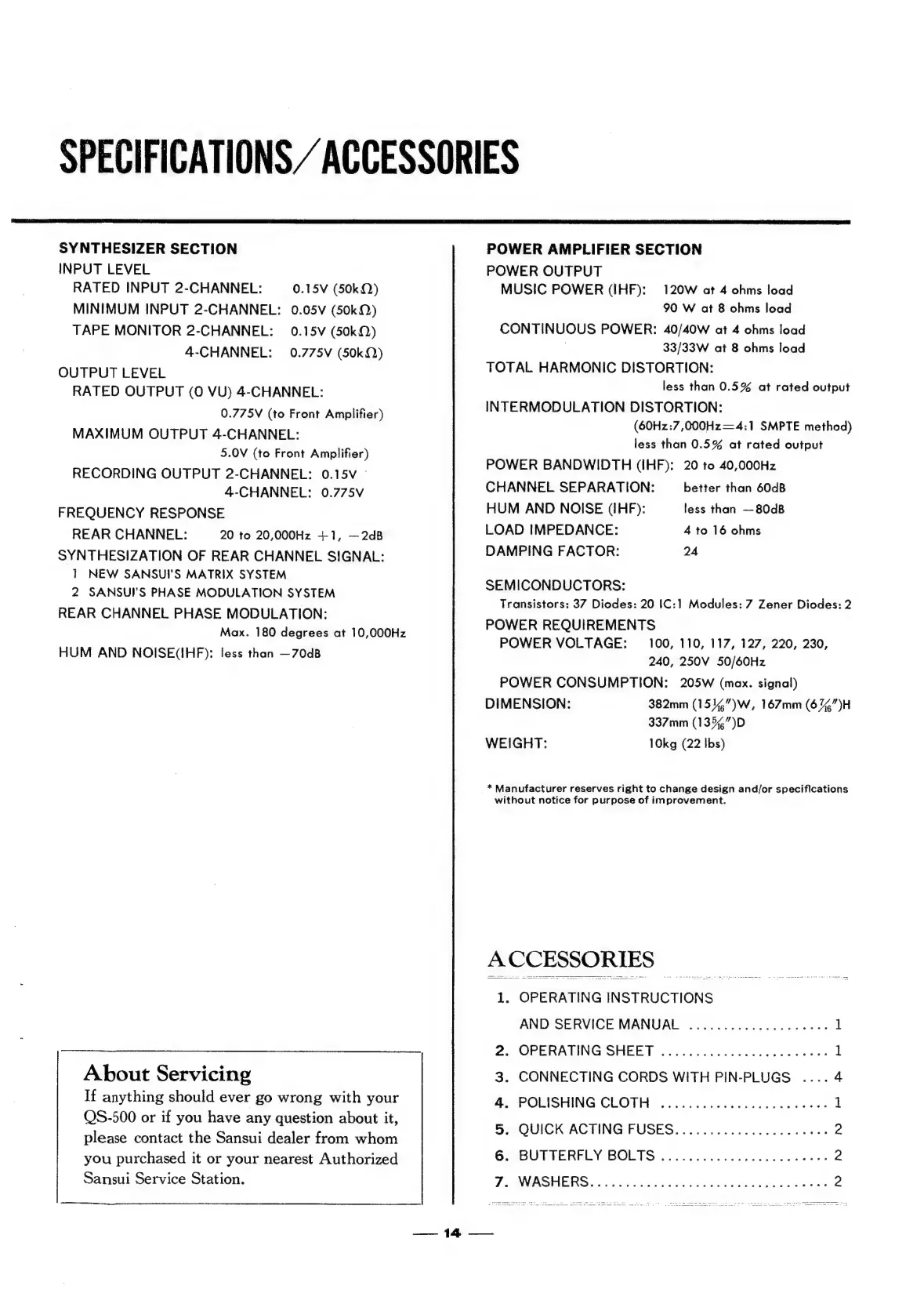

SPECIFICATIONS” ACCESSORIES
SYNTHESIZER SECTION
INPUT LEVEL
RATED INPUT 2-CHANNEL: 0.15V (50kQ))
MINIMUM INPUT 2-CHANNEL: 0.05V (50k2)
TAPE MONITOR 2-CHANNEL: 0.15V (50k)
4-CHANNEL: 0.775V (50k)
OUTPUT LEVEL
RATED OUTPUT (0 VU) 4-CHANNEL:
0.775V (to Front Amplifter)
MAXIMUM OUTPUT 4-CHANNEL:
5.0V (to Front Amplifier)
RECORDING OUTPUT 2-CHANNEL: 0.15V ©
4-CHANNEL: 0.775V
FREQUENCY RESPONSE
REAR CHANNEL: 20 to 20,000Hz +1, —2dB
SYNTHESIZATION OF REAR CHANNEL SIGNAL:
1 NEW SANSUI'S MATRIX SYSTEM
2 SANSUIS PHASE MODULATION SYSTEM
REAR CHANNEL PHASE MODULATION:
Max. 180 degrees at 10,000Hz
HUM AND NOISE(IHF): less than —70dB
About Servicing
If anything should ever go wrong with your
OS-500 or if you have any question about it,
please contact the Sansui dealer from whom
you purchased it or your nearest Authorized
Sansui Service Station.
POWER AMPLIFIER SECTION
POWER OUTPUT
MUSIC POWER (IHF): 120W at 4 ohms load
90 W at 8 ohms load
CONTINUOUS POWER: 40/40W at 4 ohms load
. 33/33W at 8 ohms load
TOTAL HARMONIC DISTORTION:
less than 0.5% at rated output
INTERMODULATION DISTORTION:
(60Hz:7,000Hz=4:1 SMPTE method)
less than 0.5% at rated output
POWER BANDWIDTH (IHF): 20 to 40,000Hz
CHANNEL SEPARATION: better than 60dB
HUM AND NOISE (IHF): less than —80dB
LOAD IMPEDANCE: 4 to 16 ohms
DAMPING FACTOR: 24
SEMICONDUCTORS:
Transistors: 37 Diodes: 20 IC:1 Modules: 7 Zener Diodes: 2
POWER REQUIREMENTS
POWER VOLTAGE: 100, 110, 117, 127, 220, 230,
240, 250V 50/60Hz
POWER CONSUMPTION: 205W (max. signal)
DIMENSION: 382mm (151467) W, 167mm (6 %%”)H
337mm (135¢67)D
WEIGHT: 10kg (22 Ibs)
