Sansui SR-929 - Page 14

12
Tips
Pointes
Spitzen
Stylus tip
Pointe de lecture
Nadel
Screws
Vis
Schrauben
Motor spindle
Axe moteur
Motorspindel
Spacer
Douille d'écortement
Abstandstiick
Lock nut
Ecrou de blocage
Kontermutter

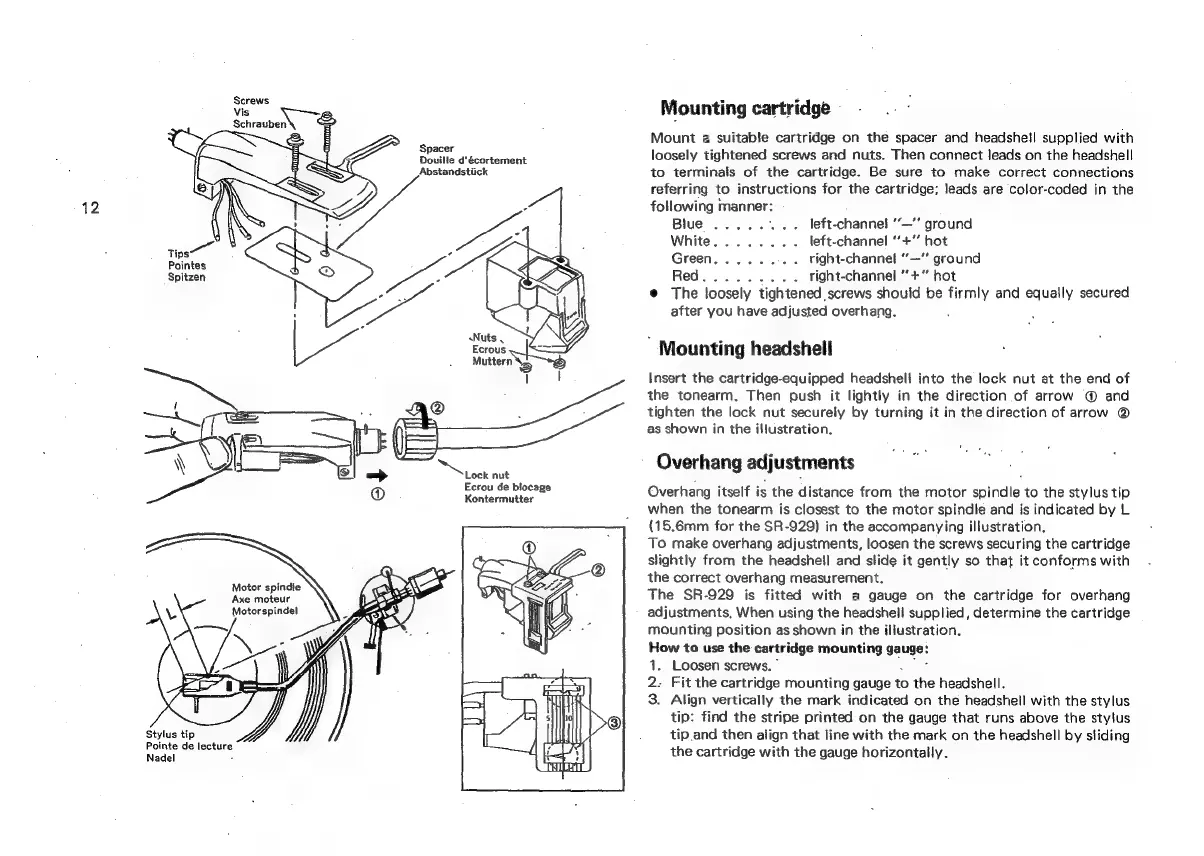

Mounting cartridge
Mount a suitable cartridge on the spacer and headshell supplied with
loosely tightened screws and nuts. Then connect leads on the headshell
to terminals of the cartridge. Be sure to make correct connections
referring to instructions for the cartridge; leads are ‘color-coded in the
following manner:
Blue ..... .. left-channel —’’ ground
White... ...... left-channel ‘'+'’ hot
Green........ right-channel “—"’ ground
REG t3.60 Gdisk right-channel "+" hot
@ The loosely tightened screws should be firmly and equally secured
after you have adjusted overhang.
Mounting headshell
Insert the cartridge-equipped headshel! into the lock nut at the end of
the tonearm. Then push it lightly in the direction of arrow @ and
tighten the lock nut securely by turning it in the direction of arrow @
as shown in the illustration.
Overhang adjustments
Overhang itself is the distance from the motor spindle to the stylus tip
when the tonearm is closest to the motor spindle and is indicated by L
(15.6mm for the SR-929) in the accompanying illustration,
To make overhang adjustments, loosen the screws securing the cartridge
slightly from the headshell and slide it gently so that it conforms with
the correct overhang measurement.
The SR-929 is fitted with a gauge on the cartridge for overhang
adjustments, When using the headshell supplied, determine the cartridge
mounting position as shown in the illustration.
How to use the cartridge mounting gauge:
1. Loosen screws.” ee
2. Fit the cartridge mounting gauge to the headshell.
3. Align vertically the mark indicated on the headshell with the stylus
tip: find the stripe printed on the gauge that runs above the stylus
tip.and then align that line with the mark on the headshell by sliding
the cartridge with the gauge horizontally.
