Santos PS - Wiring diagram 220-240 V 50 Hz Model #4

SANTOS : User and maintenance manual

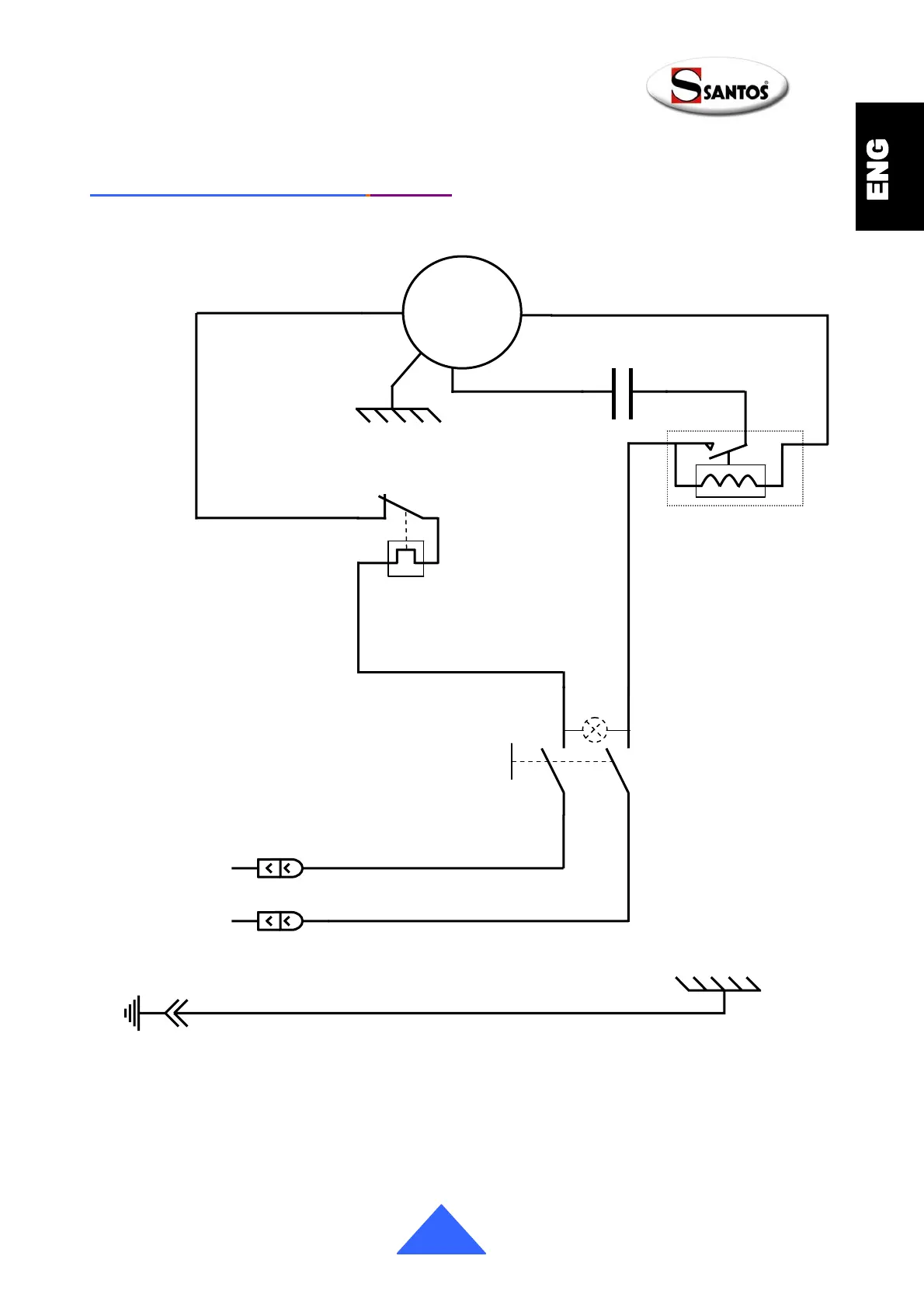

Wiring diagram 220-240V 50Hz Model #4
Black
4
3
2
Capacitor
White
White
M
Brown
Starter relay
~
On/Of
f
White
White
White
Green/Yellow
Excess current
protector
White
98101 US 3.0 - 09 2007 15 / 20 www.santos.fr
