Sanus BLL2 - Step 2 B: Concrete Installation - Initial Steps; Position Template on Concrete Surface

13
14
4X
TIP:
TIP:
To calculate your precise wall plate location, check out
our HeightFinder at sanus.com [www.sanus.com/1172].
Min. 16 in. (40.6 cm)
1
POSITION TEMPLATE
Solid Concrete or Concrete Block Installation
● Mount the wall plate
15
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (20.3 cm)
● Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
● Minimum horizontal space between fasteners: 16 in. (40.6 cm)
STEP 2B
CAUTION: Avoid potential personal injury or property damage!

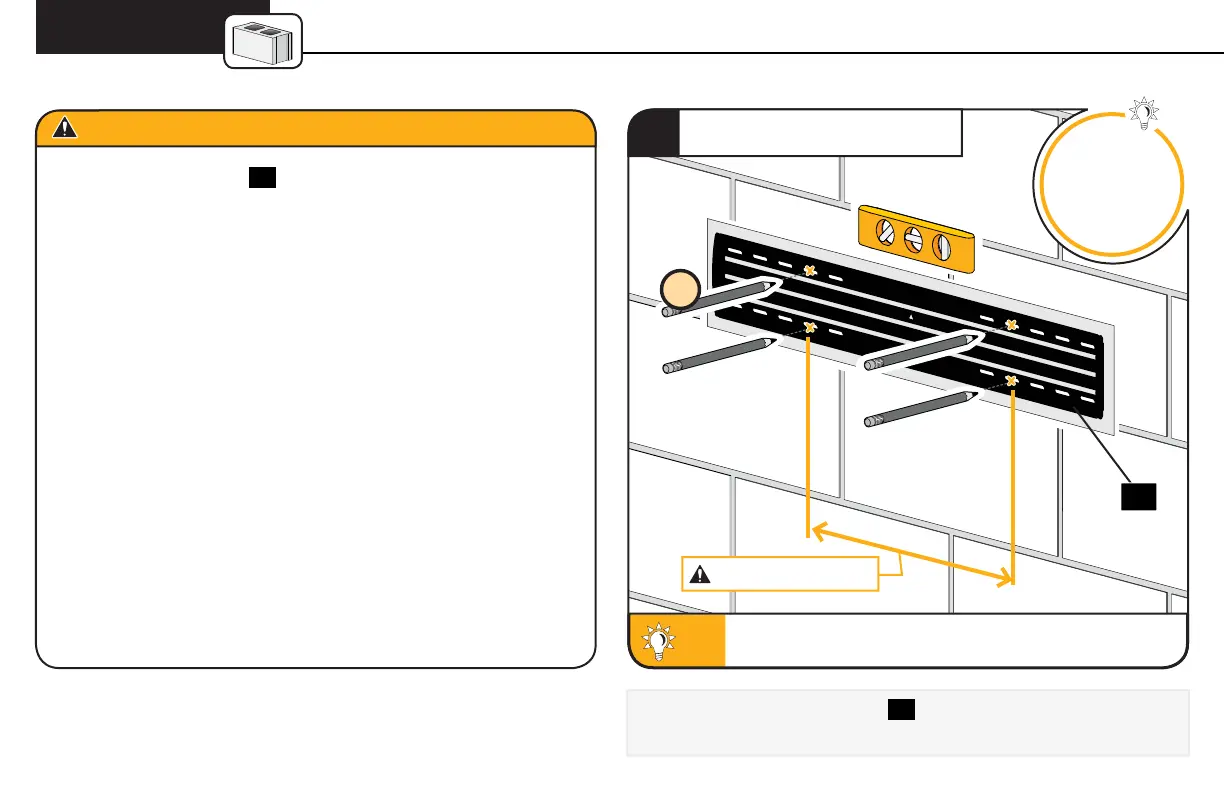

Position the wall plate template
14
on the wall at your desired height.
Level and mark the hole locations.
sanus.com
/1172
HeightFinder™
Visit
