Sanus BLL2 - Step 2 C: Steel Stud Installation - Drilling; Position Template and Drill Pilot Holes

17
1 in. (2.5 cm)
1/2 in.
(13 mm)
14
4X

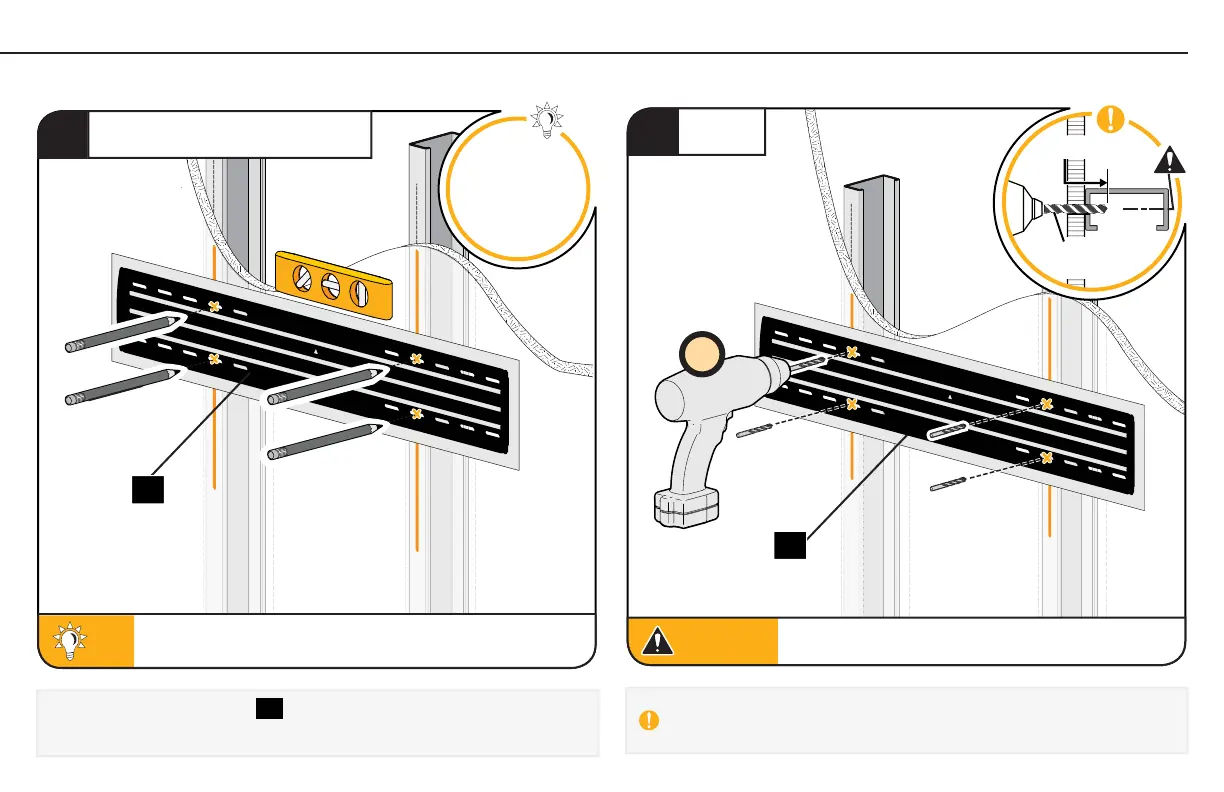

Place the wall plate template
14
at your desired height and position the
slotted holes over your stud center lines. Level and mark the hole locations.
4
POSITION TEMPLATE
TIP:
To calculate your precise wall plate location, check out
our HeightFinder at sanus.com [www.sanus.com/1172].
Drill the four pilot holes using a 1/2 in. (13 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (2.5 cm).
Remove the wall plate template and discard.
5
DRILL
CAUTION:
Be sure you drill into the CENTER of the stud.
14
sanus.com
/1172
